Specifications
Brand Name :
BIOCLEAN
Model Number :
BCSTE-LFB
Place of Origin :
NINGBO CHINA
MOQ :
1
Price :
20000-30000USD
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
1000 Units per year
Delivery Time :
40 Workingdays
Packaging Details :
Custom steel frame crating
Certification :
CE-EP-2023-08862
Disinfection Method :
Chlorine Disinfection
Equipment Type :
MBR Integrated Type
Treatment Capacity :
20-50 m³/h
Inlet Water COD Concentration :
500-1000 mg/L
Outlet Water COD Concentration :
50-100 mg/L
Power Supply :
AC 380V 50Hz
Description

Product descriptions

Livestock Farming Sewage Treatment Equipment: Specialized Solutions

Livestock sewage is uniquely challenging, with high organic loads, nutrients (COD 5,000-30,000 mg/L, NH₃-N, TP), manure solids, pathogens (E. coli, Salmonella), and strong odors (hydrogen sulfide, ammonia). Generic systems fail here, risking pollution, fines, or complaints. Our equipment, engineered for livestock farming, blends agricultural expertise and targeted tech to meet sustainability and compliance needs.

1. Core Tech: Targeting Livestock-Specific Contaminants


A multi-stage, resource-recycling process addresses its unique traits:

  • Pre-Treatment:
    • Rotary Drum Screen + Screw Press: Removes 98% of solids (>3mm) and dehydrates manure to 60-70% moisture, producing fertilizer pellets.
    • Grinding & Equalization Tank: Pulverizes fibrous waste and balances flow fluctuations.
  • Anaerobic Digestion:
    • CSTR: Optimized for livestock waste (35-38℃), it digests 60-75% of COD anaerobically, generating biogas (60-70% methane) to cut energy costs by 30-50%.
    • Sludge Recirculation: Boosts microbial activity for stable performance.
  • Aerobic Treatment:
    • AO + MBR Hybrid Process: Removes >90% NH₃-N, >85% TP, and >99% SS, achieving >95% COD removal. Custom microbes avoid ammonia inhibition.
  • Disinfection & Deodorization:
    • UV + Chlorine Dioxide: Kills 99.99% of pathogens (coliforms <100 CFU/100mL), meeting irrigation standards.
    • Biofilter: Neutralizes 95%+ of odors (hydrogen sulfide, ammonia).

2. Compliance


Certified to China’s GB 18596-2001 (Class 1) with strict NH₃-N/TP/SS limits; EU 91/676/EEC and U.S. EPA CAFO guidelines, fitting global operations. Sealed systems ensure biosecurity by preventing pathogen leakage.

3. Designed for Farms

  • Scalability: 50-5,000m³/day (small poultry to large pig/cattle farms) with quick installation.
  • Durability: 304 stainless steel (ammonia-resistant) and anti-clog pumps ensure 15+ year service.
  • Low-Labor Automation: PLC controls adjust to daily fluctuations, requiring only weekly checks.

4. Key Benefits

  • Avoid fines and shutdowns with stable compliance.
  • Boost sustainability: Biogas cuts energy costs; manure fertilizer reduces chemical use.
  • Improve community relations via odor elimination and safe effluent.

From small farms to large operations, our equipment solves livestock wastewater challenges—turning waste into resources and supporting responsible animal husbandry.

Contact us for a tailored solution.



PRODUCT SPECIFICATIONS

Item BCSTE-5 BCSTE-10 BCSTE-15 BCSTE-20 BCSTE-40 BCSTE-50
Treating capacity m3/h 5 10 15 20 40 50
No. of machine parts 1 2 2 2 4 4
Sludge absorption and primary sedimentation tank 9 18 27 36 82 100
contact oxidation pond (m3) 24 44 63 83 170 200
Surface load of secondary sedimentation tank(m3/m2h) 1.3 1.2 1.2 1.5 1.5 1.6
Disinfection tank (m3) 2.8 5.5 8 10 20 25
Fan Model HC-50C HC-60IS HC-80S HC-100S HC-100S HC-100S
Power (kw) 1.5 2.2 3.7 5.5 5.5×2 5.5×2
No. 2 2 2 2 3 3
Pump Model AS10-2CB AS16-2CB AS30-2CB
Power (kw) 1.0 1.6 2.9
Weight of biggest part(T) 7 8 10 10.5 10.5 12
Total weight(T) 8 17 20 21 38 42
Occupy area(m2) 20 50 65 75 155 185

Product Overview

Livestock Farming Breeding Portable Sewage Treatment Plant

Livestock Farming Breeding Portable Sewage Treatment Plant

Livestock Farming Breeding Portable Sewage Treatment Plant

Livestock Farming Breeding Portable Sewage Treatment Plant

Livestock Farming Breeding Portable Sewage Treatment Plant

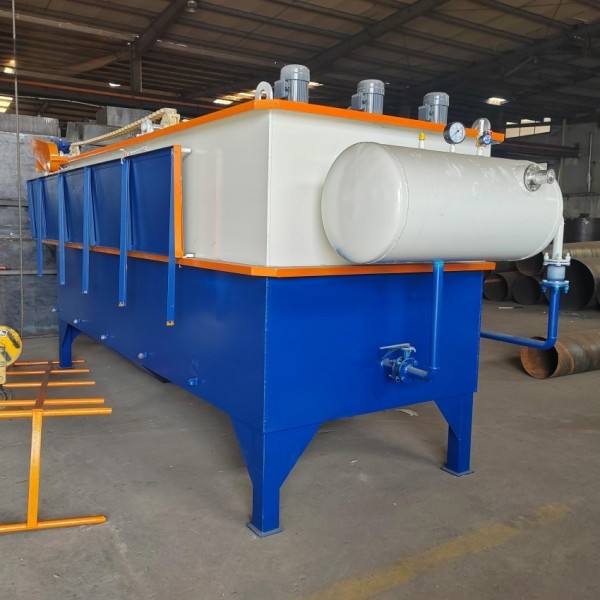

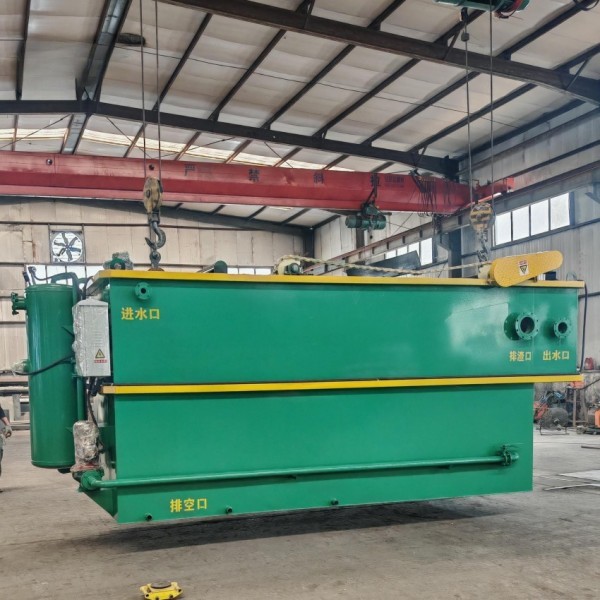

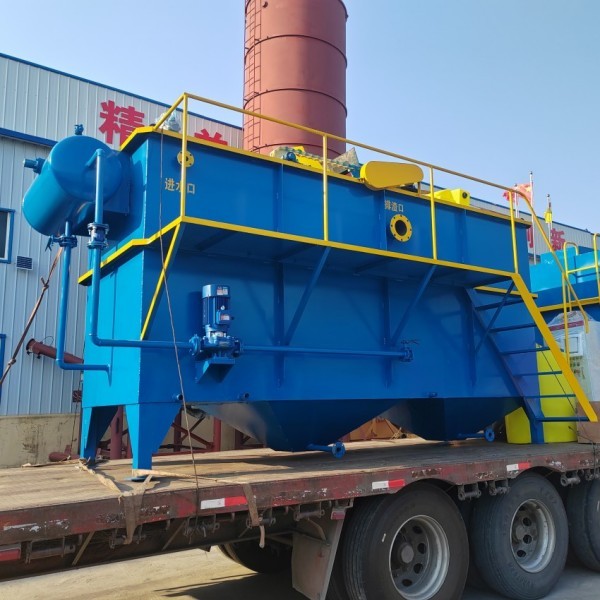

Physical Product Photos
