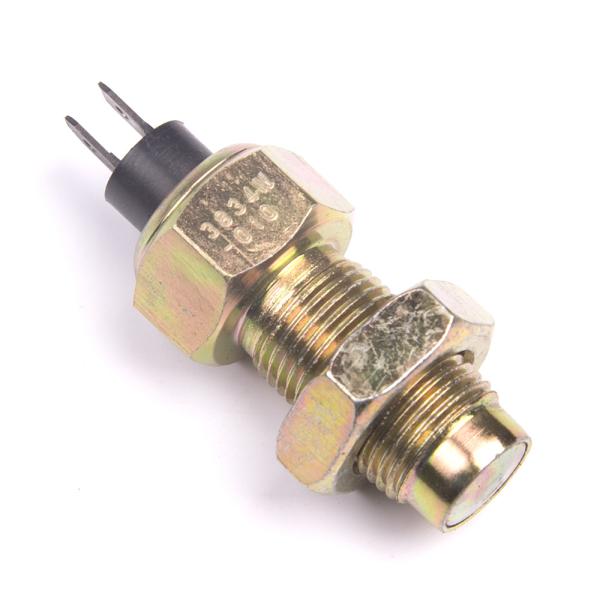

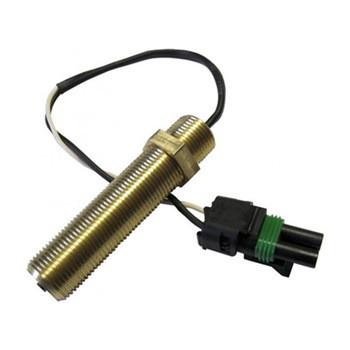

Cement Drum Brass Wheel Speed Sensor , Truck Magnetic Pickup Speed Sensor EL-T2013.00RE
Cement Drum Brass Wheel Speed Sensor , Truck Magnetic Pickup Speed Sensor EL-T2013.00RE
Cement Drum Brass Wheel Speed Sensor , Truck Magnetic Pickup Speed Sensor EL-T2013.00RE
Cement Drum Brass Wheel Speed Sensor , Truck Magnetic Pickup Speed Sensor EL-T2013.00RE
Specifications
Brand Name :
Yunbao
Certification :
ISO9001
Place of Origin :
china
MOQ :
100
Price :
negative
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000PCS/Month
Delivery Time :
10days
Packaging Details :
Carton
Model Number :
EL-T2013.00RE
Name :
Rotational Speed Sensor
Material :
Alu, Brass, Copper, Steel, Ss etc.
Output :
1.5 Volts AC Minimum
Color :
Silver White
Tolerance :
0.001
Warranty :
1Year
Description

Cement drum sensor, magnetic cement mixer rotation speed sensor for truck

Product Description

This is one kind of magnetic (hall type) proximity sensors, which is specially designed for rotation speed and orientation detection.

It has RS232 output as well as high/low digital output. The RS232 output the rotation speed in rpm and orientation in specified protocol of Dingtek. The high/low digital line output high or low according to the different orientation.

It is applicable for rotation system, the speed of which is in 0-120 rpm. Especially it can be applied to status detection of mixing or discharging for the cement drum. Therefore, it can be used to detect if there is illegal discharging (output/unload) for the cement drum vehicle.

Cement Drum Brass Wheel Speed Sensor , Truck Magnetic Pickup Speed Sensor EL-T2013.00RE

Specification

Output

RS232 and high/low digital line

Principle

Magnetic proximity detection

Power Supply

10-32V DC

Operating Temperature

-20 ~ +70℃

Working Temperature

-40 ~ +85℃

Shell Material

Sus 304

Protection Level

IP67

Current

<25mA

Wireless

Optional for zigbee, wifi, GPRS, UMTS.

Mechanical Drawing

Interface Definition

Application

1. Rotation speed and orientation detection.

2. Status detection of mixing or discharging for the cement drum.
