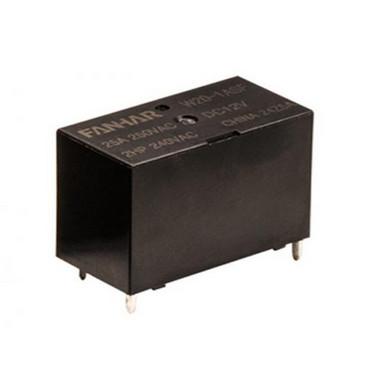

Household Appliances Miniature PCB Relay , Industrial PCB Mount Latching Relay
Household Appliances Miniature PCB Relay , Industrial PCB Mount Latching Relay
Specifications
Brand Name :
Yunbao
Certification :
ISO9001
Place of Origin :
china
MOQ :
100
Price :
negative
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000PCS/Month
Delivery Time :
10days
Packaging Details :
Carton
Tyoe :
Electric Parameter Relay
Size :
Subminiature
Operate Time :
Max.15ms
Electricity Type :
Ac
Action Principle :
Electromagnetic Type
OEM :
Avaliable
Description

Miniature PCB Relay Power Relay for Household Appliances &Industrial Use

Product Description

Features :

Size (mm):20.5×27×33.4

Terminal layout:4Z
Contact capacity:3A 220VAC/3A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC

Features:

Contact Form:

1H:SPST-NO 1Z:SPDT

Contact Material:

NO: AgSn02 D: AgCdO

Construction:

S:Sealed IP67 NO:No Sealed IP67

Initial Contact Resistance:

100m (1A 6VDC)

Contact Rating(Res. Load):

7A 250VAC/10A 28VDC

Coil Voltage:

3VDC/5VDC/6VDC/9VDC/12VDC/18VDC/24VDC/48VDC

Max. Switching Voltage:

250VAC/30VDC

Max. Switching Current:

15A

Max. Switching Power:

300W/2500VA

Mechanical life:

1×107 times

Electrical life:

1×105 times

Initial Insulation Resistance:

1000m,500VDC

Dielectric Strength:

Between coil contacts 750VAC 1min.

Between open contacts 500VAC 1min.

Operate Time (at nomi. Volt):

15ms

Release Time (at nomi. Volt):

10ms

Impact Resistance:

Stability 100m/s2 ; Intensity 1000m/s2

Vibration Resistance:

1mm 10~55Hz

Temperature:

-40º ~ +85º

Termination:

PCB and Plug type leading-out terminal


Household Appliances Miniature PCB Relay , Industrial PCB Mount Latching Relay
Household Appliances Miniature PCB Relay , Industrial PCB Mount Latching Relay
Household Appliances Miniature PCB Relay , Industrial PCB Mount Latching Relay
Household Appliances Miniature PCB Relay , Industrial PCB Mount Latching Relay
Household Appliances Miniature PCB Relay , Industrial PCB Mount Latching Relay
Household Appliances Miniature PCB Relay , Industrial PCB Mount Latching Relay

Product tags

pcb latching relay

,

miniature pcb relay

,

miniature latching relay
