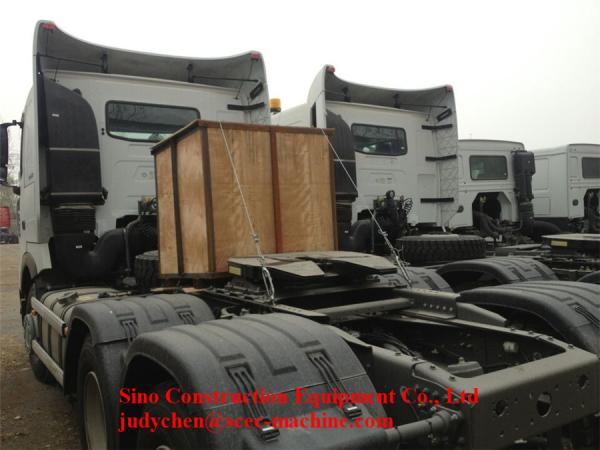

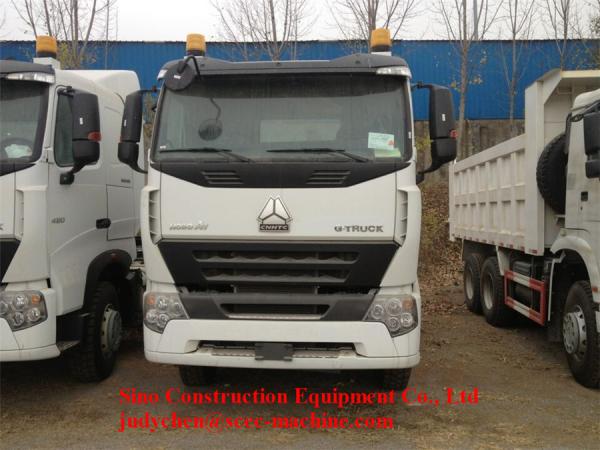

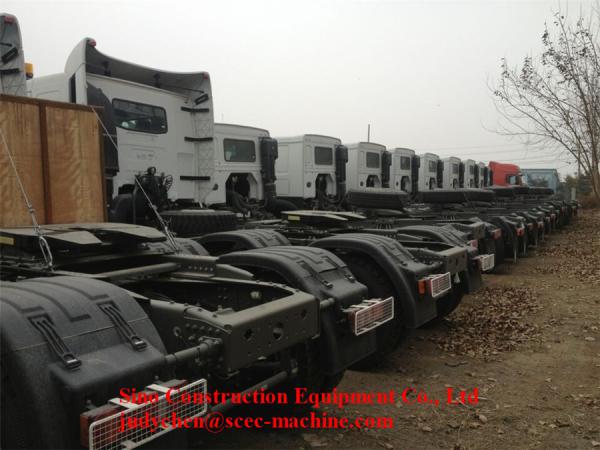

Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2
Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2
Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2
Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2
Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2
Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2
Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2
Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2
Specifications
Brand Name :
Howo
Model Number :
ZZ4257V3247N
Certification :
ISO CCC
Place of Origin :
Jinan China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 units per month
Delivery Time :
Within 30-35 work days after receive order
Packaging Details :
Nude, Polished with wax before shipping on board
Item name :
Howo A7 10 Wheeler Tractor Truck
Engine :
420hp
Transmission :
HW19710, 10 forward and 2 reverse
Rear axle :
HC16
Front axle :
HF7
Tyres :
315/80R22.5
Overall Dimension :
6985x2496x3850(mm)
Gross vehicle  weight :
25000kg
Description

Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2

Quick look of 6x4 Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2

Condition: New

Horsepower: 420hp

Drive Wheel: 6x4

Transmission Type: Manual

Emission Standard: Euro 2

Engine Capacity: 9.726L

Fuel Type: Diesel

Size: 6985x2496x3850(mm)

Tyre: Triangle 12.00R20, Radial with one spare tire

6x4 Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2 technical specification:

Model ZZ4257V3247N
Engine SINOTRUK
Diesel 4 stroke diesel engine
Engine Model D12.42, Euro II emission standard 6 cylinder in-line with water cooling, turbo-charging & intercooling
Maximum Output 420hp (309Kw) at 2000 rpm
Maximum Torque 1820Nm at 1100~1400 rpm
Displacement 11.596L
Bore 126mm
Stroke 155mm
Compression Ratio 17:1
Specific fuel consumption 196g/kWh
Clutch single-plate dry diaphragm spring clutch diameter 430(A)mm, hydraulically operating with air assistance
Transmission HW19710, 10 forward and 2 reverse
Rear axle HC16
Front axle HF7
Ratio 5.73
Option 4.80 and Automatic slack adjuster
Service brake dual circuit compressed air brake
Parking Brake (emergency brake) spring energy, compressed air operating on reaar wheels
Auxillary brake Engine exhaust brake
Tyres 315/80R22.5
Rims 8.5-20, 10 hole-steel
Option 12.00R20, 11.00R20
Cab
Brand new A7 High-floor high cab, adjustable steering wheel with various heights and angles, central door lock, electri window lifter, power rear view mirror, .2-am windscreen wiper system with 3 speed, VDO electrical control system, air suspension adjustable driver's seat, rigid adjustable co-driver's seat, heating & ventilation system, exterior sun visor, s tereo radio, driving recorder, safety belts, air horn, air conditioner, and double berths with 4-point support fully floating suspension with transverse stabilizer, CD machine, cruising combined switch.
Wheel base 3225+1350mm
Front wheel track 2022mm
Rear wheel track 1830mm
Front overhang 1540mm
Rear overhang 870mm
Approach angle(°) 15
Departure angle(°) 46
Overall Dimension 6985x2496x3850(mm)
Dead weight 9200kg
Permissible loading capacity at fifth wheel 15670kg
Gross vehicle weight 25000kg
Gross combination weight 100000kg
Front axle loading capacity 7000kg
Rear axle loading capacity 18000kg

Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2

Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2

Heavy Duty Prime Mover Tuck Howo A7 10 Wheeler Tractor Truck 420hp Euro 2

Model advantage: In the concrete mixer truck engine, the market share is high!
Engine advantage: strong power, upgrade and reconstruction, more economical and fuel-efficient, environmentally friendly and pollution-free!
Gearbox advantages: high torque, fast climbing, precision quality, high quality, light weight operation
Advantages of the axle: strong carrying capacity, free of disassembly and maintenance, saving effort and saving money!
Advantages of the cab: sound insulation is good, the whole is stronger and safer! Luxury center console, luxury mobile home!
Vehicle advantage: create high-speed, high-efficiency, high-reliability, fuel-efficient profit model

After-sale services:

1. Whole-life service of each machine and trucks we exported.

2. Original spare parts supply directly.

3. Technical support in using our machine.

4. Worker staff training support.
