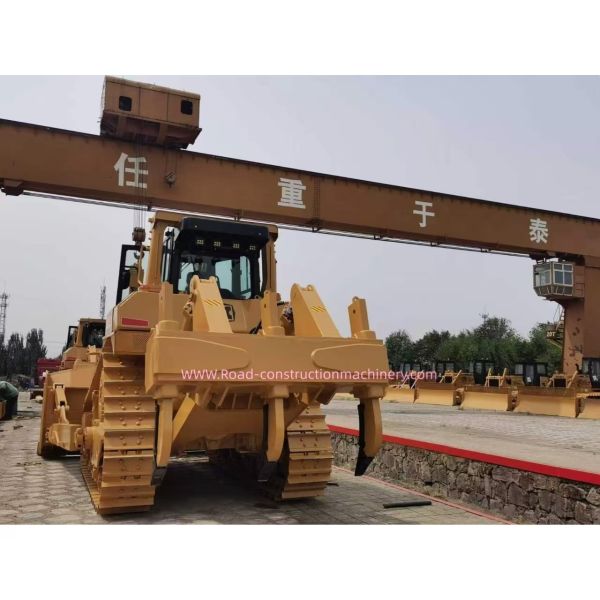

From China HBXG SD8N Crawler Bulldozer With Cum-mins Engine Semi-U tillting blade, Sealed cab with air-conditioner, Three-shanks ripper
From China HBXG SD8N Crawler Bulldozer With Cum-mins Engine Semi-U tillting blade, Sealed cab with air-conditioner, Three-shanks ripper
From China HBXG SD8N Crawler Bulldozer With Cum-mins Engine Semi-U tillting blade, Sealed cab with air-conditioner, Three-shanks ripper
From China HBXG SD8N Crawler Bulldozer With Cum-mins Engine Semi-U tillting blade, Sealed cab with air-conditioner, Three-shanks ripper
From China HBXG SD8N Crawler Bulldozer With Cum-mins Engine Semi-U tillting blade, Sealed cab with air-conditioner, Three-shanks ripper
From China HBXG SD8N Crawler Bulldozer With Cum-mins Engine Semi-U tillting blade, Sealed cab with air-conditioner, Three-shanks ripper
From China HBXG SD8N Crawler Bulldozer With Cum-mins Engine Semi-U tillting blade, Sealed cab with air-conditioner, Three-shanks ripper
From China HBXG SD8N Crawler Bulldozer With Cum-mins Engine Semi-U tillting blade, Sealed cab with air-conditioner, Three-shanks ripper
Specifications
Model Number :
SD8N
Packaging Details :
nude package
Blade width (mm) :
3940
Max. digging depth (mm) :
582
Track type: :
sealed and lubricated track assembly.
Torque converter :
Torque converter is power separating hydraulic-mechanic type
System output（L/min） :
220
Delivery Time :
45 days
Engine :
Cum-mins NTA855-C360S10
Moving type :
Crawler Bulldozer
Product Model :
HBXGSD8N bulldozer
Supply Ability :
1000 units/month
Operating Weight :
32790kg
Dimension :
7930*3940*3549
Min. ground clearance (mm) :
556mm
Dozing capacity (m³) :
11.24
Number of track rollers (each side) :
8
Width of shoe (mm) :
560
Max. system pressure (MPa) :
20
Gradient :
30°/25°
Rated revolution (rpm) :
2100
Brand Name :
HBXG
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Description

HBXG SD8N Crawler Bulldozer With Cum-mins Engine Semi-U tillting blade, Sealed cab with air-conditioner, Three-shanks ripper

SD8N bulldozer is track-type dozer with elevated sprocket, hydraulic direct drive, semi-rigid suspended and hydraulic controls. Equipped with power separating hydraulic-mechanic type Torque converter, planetary, power shift and one lever control transmission. SD8N bulldozer equipped with integrated hydraulic system, electric monitoring, SD8N bulldozer can be equipped with many optional equipment and attachment, it can be used in road building, hydro-electric construction, land clearance, port and mine development and other construction field.

Technical Specification of HBXG SD8N Track Bulldozer

Parameter SD8N
Overall weight(kg) 32790
Engine brand Cum-mins
Engine model NTA855-C360S10
Rated power(kw) 257
Rated revolution(rpm) 2100
Emission standard Stage 2
Rated fuel consumption(g/kw.h) 208
Machine external dimensions(mm) 6103*3940*3549
Track center distance(mm) 2083
Gradient 30°/25°
Min.ground clearance(mm) 556
Blade type Semi-U blade
Blade capacity(m³) 11.24
Max.cutting depth(mm) 582
Undercarriage type The track is triangle shape, the sprocket is elevated elastic suspended.
Track shoe width(mm) 560

Number of track rollers

(each side)

 8
Pitch (mm) 216
Max. system pressure (MPa) 20
Pump type Gears oil pump
System output(L/min) 220
Gear 1st 2nd 3rd
Forward(km/h) 0-3.5 0-6.2 0-10.8
Reverse(km/h) 0-4.7 0-8.1 0-13.9

HBXG 257kw SD8N Track Bulldoze Three-shanks ripper
