Specifications
Certification :
CE/ISO9001
Dimension(L*W*H) :
8900*2625*3470mm
Price :
Negotiable
Packaging Details :
nude package
Tread :
2156mm
Supply Ability :
1000 units/month
Rated power/speed :
142kW/2200rpm
Tire specification :
17.5-25
Reverse Speed :
23km/h
Place of Origin :
China
Payment Terms :
T/T, L/C
Forward Speed :
38km/h
Engine brand :
Cummins
Delivery Time :
15-20 days
Engine model :
6CTA8.3-C190-Ⅱ
MOQ :
1 unit
Model Number :
GR180
Description

china factory supply GR180 Construction Motor Grader 5 Shanked Ripper 142kW ZF Gearbox from china supply

GR180 Construction Motor Grader 5 Shanked Ripper 142kW ZF Gearbox from china supply

Construction Motor Grader GR180 Five Shanked Ripper 142kW Hot Sale

GR180 grader is widely used in large-area ground leveling operations such as highways, airports, and graders. The reason why the grader has a wide range of auxiliary operation capabilities is that its moldboard can complete 6 degrees of movement in space.

1. It adopts a new appearance design.

2. It uses an articulated frame and cooperates with the front wheel steering to have a small turning radius, so it is maneuverable and flexible.

3. The gearbox adopts electro-hydraulic control power shifting, with 6 forward gears and 3 reverse gears.

4. Using international matching hydraulic parts, the operation is reliable.

5. The blade movement is fully hydraulically controlled.

6. The adjustable console, seat, control handle and instruments are reasonably arranged and easy to use, improving driving comfort.

7. The rear axle is a three-stage drive axle equipped with a NO-SPIN self-locking differential.

8. The cab is luxurious and beautiful, with wide vision and good sealing.

9. It can be equipped with a front bulldozing board, a rear ripper, a front ripper, and an automatic leveling device.

GR180 Grader GR215 GRADER Construction Motor Grader 5 Shanked Ripper 142kW ZF Gearbox from china factory supply

GR180 Motor Grader Technical Specification

Basic parameters
Engine model
6CTA8.3-C190-Ⅱ
Rated power/speed
142kW/2200rpm
Overall dimension (standard)
8900x2625x3420
Total weight (standard)
15400 kg
Tire specification
17.5-25
Ground clearance (front axle)
430mm
Tread
2156mm
Space of front and rear axles
6219 mm
Space of middle and rear wheels
1538 mm
Performance parameters
Forward velocity
5､8､11､19､23､38km/h
Reverse speed
5､11､23km/h
Tractive effort f=0.75
≥79 kN
Maximum gradeability
≥25%
Tire inflation pressure
260kPa
Working system pressure
18MPa
Transmission pressure
1.3—1.8Mpa
Working parameters
Maximum steering angle of front wheel
±50°
Maximum slant angle of front wheel
±17°
Maximum oscillating angle of front axle
±15°
Maximum oscillating angle of equilibrium box
±15°
Maximum steering angle of frame
±27°
Minimum turning radius
7.3m
Scrape knife
Maximum lift height
450mm
Maximum cutting depth
500mm
Maximum tilt angle
90°
Cutting angle
28°—70°
Angle of revolution
360°
Length & chord height
3965x610mm
Oil filling amount
Coolant
50L
Fuel tank
280L
Engine
24L
Transmission
38L
Balancing box
46L
Drive axle
28L

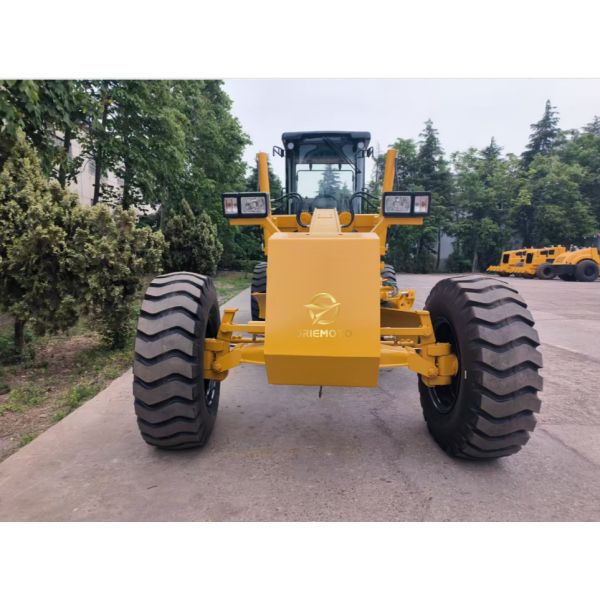

GR180 Motor Grader Pictures

GR180 Grader GR215 GRADER Construction Motor Grader 5 Shanked Ripper 142kW ZF Gearbox from china factory supply

China Road Grader GR180 Engine 142kW Euro 2

GR180 Grader GR215 GRADER Construction Motor Grader 5 Shanked Ripper 142kW ZF Gearbox from china factory supply

Construction Motor Grader GR180 Tyres 17.5-25

GR180 Grader GR215 GRADER Construction Motor Grader 5 Shanked Ripper 142kW ZF Gearbox from china factory supply

Germany ZF Transmission Of Motor Grader GR180

GR180 Grader GR215 GRADER Construction Motor Grader 5 Shanked Ripper 142kW ZF Gearbox from china factory supply

Shipping

one 40ft container can load 1 unit
