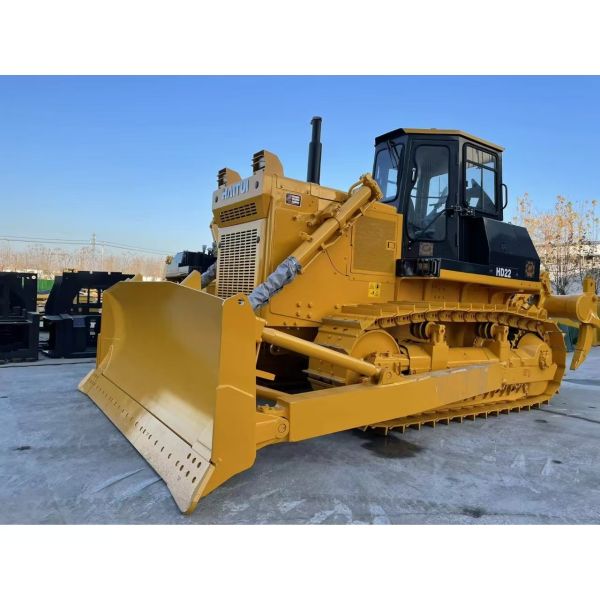

china Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripper
china Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripper
china Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripper
china Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripper
china Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripper
china Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripper
china Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripper
china Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripper
Specifications
Brand Name :
Haitui
Model Number :
HD22
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000 units/month
Delivery Time :
15-20 days
Packaging Details :
nude package
Warranty :
1 Year
Dozing Capacity: :
6.4m³
Operating weight: :
23.5 ton
Rated power (kW) :
175/220hp Track
Dimension(no ripper) :
5460×3725×3395 mm
Dozing capacity :
6.4 m³(standard blade)
Gear 1st speed :
3.6km/h
Main clutch force :
145 N
Description

china Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer

Haitui bulldozer HD22 product features:

HD22 series bulldozers adopt advanced technologies such as centralized lubrication, centralized pressure measurement and automatic tightening of crawlers. It can be equipped with a variety of working devices and cabs to meet the various working conditions. They are ideal and efficient equipment for earth and stone construction work and bulk scraping.

HD22 bulldozer is a standard type medium size hydraulic crawler dozer equivalent to D7 dozer. With multiple working devices and cabins,HD22 bulldozer can meet the operation demands for diversified working conditions,like swamp,forest logging,sanitation,coal mining etc.It is an ideal high-efficiency machine for earth-moving operations and bulk material handling.

welcome to concact us get good price.

Haitui HD22 Bulldozer Performance parameters

Model
HD22
Overall Dimension
5460*3725*3395mm
Operating Weight
23500kg
Engine Model
NT855-C280S10
Rated Power
175KW/1800rpm
Displacement
14.01L
Max Torque
1030N.m@1300rpm
Track Shoe Width
560mm
Track Gauge
2000mm
Ground Pressure
0.077Mpa
Numbers of Track Rollers
6 pcs/each side
Numbers of Carrier Rollers
2 pcs/each side
Max Hydraulic Pressure
14Mpa
Hydraulic Displacement
262L/Min
Straight Blade Size
3725*1315mm
Blade Capacity
6.4m3

china Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripper

china Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripperchina Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripperchina Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripperchina Haitui HD22 bulldozer 23.5 Ton 6.4m3 Dozing Heavy Equipment Bulldozer with 3-tooth Ripper
