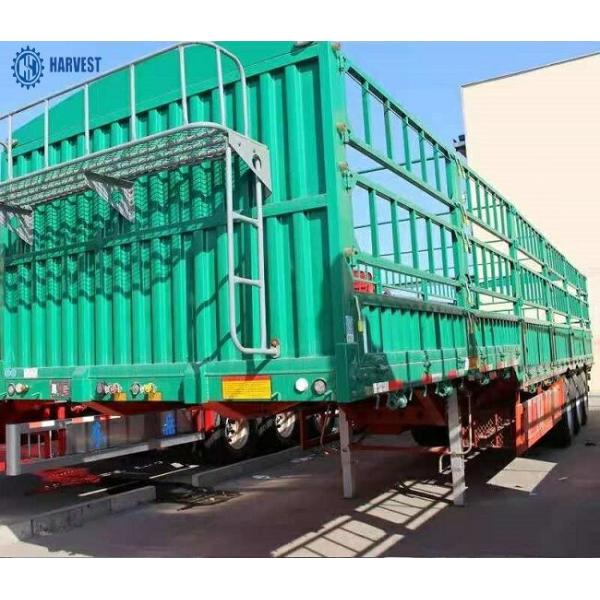

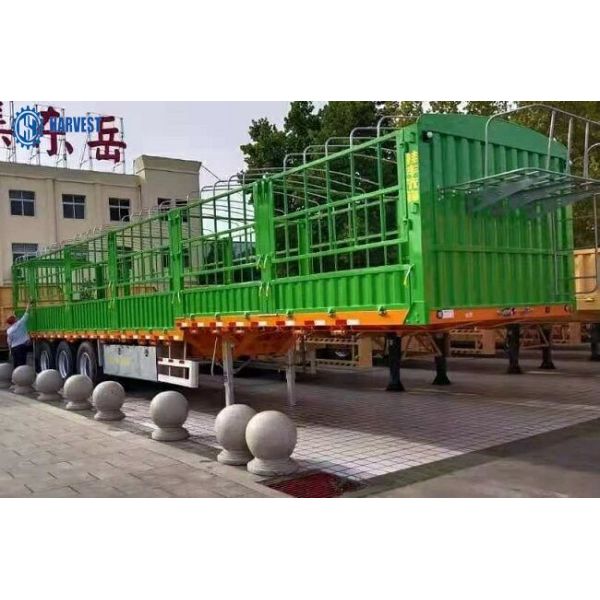

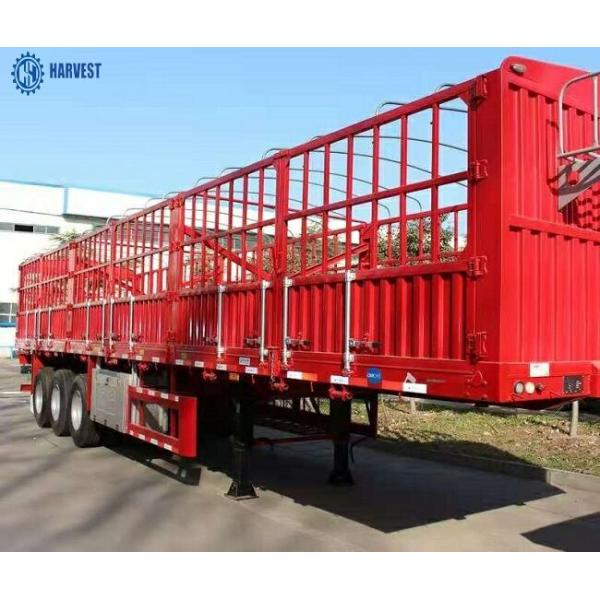

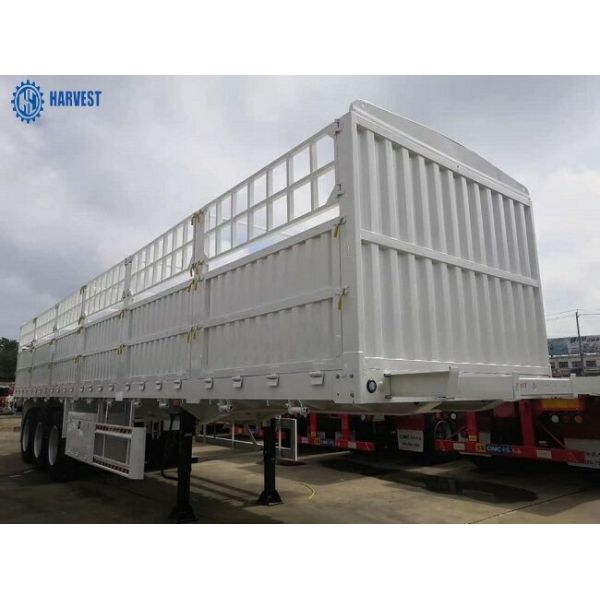

Q345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi Trailer
Q345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi Trailer
Q345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi Trailer
Q345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi Trailer
Q345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi Trailer
Q345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi Trailer
Q345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi Trailer
Q345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi Trailer
Specifications
Brand Name :
CIMC
Model Number :
CIMC
Certification :
CE/DOT/ADR
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 units/month
Delivery Time :
15 days
Packaging Details :
nude package
Size: :
13000mm*2550mm*1800mm
Max Payload: :
100 Tons
Axle: :
13/16 Ton Fuwa/BPW/CIMC
Suspension System: :
Mechanical Spring + Air Suspension System
Tire: :
11.00r20 12r22.5
King pin: :
JOST 2.0 Inch (50mm)/3.5 Inch (90mm)
Leaf Spring: :
90(W)mm*13(Thickness)mm*10(Layer)
Landing Gear: :
JOST Brand Two-speed
Description

CIMC 3 Axle Transport Fence Semi Trailer Loading 60 Ton Warranty 2 Year
• Finite Element analysis used in vehicle to promote product performance.
• Whole Trailer body Electrophoresis Painting,resistance,painting effect can reach above 10 years.
• High Stength full thickness Steel,titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.
• 42 tough ribs design,Ensure the safety and carrying capacity of trailer.
• Customized titanium-containing high-strength steel,which can effectively prevent the deformation of side wall when transporting heavy objects or large cargo.
• Trailer Main Parts Warranty Period Reach 24 Months.
Advantage & Feature;

Advanced material parts and 30 Years intelligence production process create excellent products,

Ensure trailer high performance quality.

Fence Trailer 2 Axle Fence Trailer 3 Axle Fence Trailer 4 Axle
Overview Overview Overview
Loading:20T-40T Loading :30T-60T Loading:40T-100T
Length:1300mm Length:1300mm Length:1300mm
Width:2550mm Width:2550mm Width:2550mm
Height:1800mm Height:1800mm Height:1800mm
Side Wall Heght:600mm Side Wall Heght:600mm Side Wall Heght:600mm
Fence Height:1200mm Fence Height:1200mm Fence Height:1200mm
Vehicle Painting Vehicle Painting Vehicle Painting
Electrophoresis painting Electrophoresis painting Electrophoresis painting
Main Beam Main Beam Main Beam
Q345/T700 Q345/T700 Q345/T700
Upper Plate Thickness:12mm Upper Plate Thickness:12mm Upper Plate Thickness:18mm
Middle Plate Thickness:6mm Middle Plate Thickness:6mm Middle Plate Thickness:12mm
Lower Plate Thickness:14mm Lower Plate Thickness:14mm Lower Plate Thickness:20mm
Beam Height:500mm Beam Height:500mm Beam Height:500mm
Axle System Axle System Axle System
2 Axles13/16 Ton CIMC/FUWA/BPW 2 Axles13/16 Ton CIMC/FUWA/BPW 2 Axles13/16 Ton CIMC/FUWA/BPW
Tire Tire Tire
12R22.5 (8 Pieces) Brand Optional 12R22.5 (12 Pieces) Brand Optional 12R22.5 (16 Pieces) Brand Optional
Rim Rim Rim
9.00*22.5 (8 Pieces) Steel/Aluminum 9.00*22.5(12 Pieces)Steel/Aluminum 9.00*22.5 (16 Pieces) Steel/Aluminum
Leaf Spring Leaf Spring Leaf Spring
90mm*13mm/90mm*16mm10 Pcs 90mm*13mm/90mm*16mm10 Pcs 90mm*13mm/90mm*16mm 10 Pcs
Kin Pin Kin Pin Kin Pin
2″/3.5″JOST 2″/3.5″JOST 2″/3.5″JOST
Landing Gear Landing Gear Landing Gear
28 Tons Two SpeedJOST/Other Brand 28 Tons Two SpeedJOST/Other Brand 28 Tons Two SpeedJOST/Other Brand

Q345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi TrailerQ345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi TrailerQ345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi TrailerQ345 60 Ton CIMC 3 Axle 12r22.5 Tire Fence Semi Trailer
