8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine
8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine
8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine
8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine
8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine
8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine
8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine
8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine
Specifications
Engine :
Cum-mins 4BT3.9
Power :
75kW
Dimension :
5030*1880*2570mm
Warranty :
1 Year
Type: :
Vibratory Roller
Weight: :
8ton
Vibration frequency :
43Hz
Water tank :
450L
Model Number :
LTS208H
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1000 units per month
Delivery Time :
10-15 working days
Packaging Details :
nude
Description

Hydraulic single rear tyre drive vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can effect good compaction in cohesive material, There-fore the machine an ideal equipment for expressway. mining road, embankment, sea port and industrial sites.

Main Features

▲Power System: Cum-mins B-series turbocharged diesel engine, huge power man efficiency, compliance for the operating condition above 4000 meters altitude.

▲Hydraulic single drive,hydraulic vibration,hydraulic articulated steering,advanced technology;Blocking the oil supply to brake the vehicle,safe and reliable.

▲Streamline outline, circular windshield glass and curvy hood form a unique style.

▲The main hydraulic components made of imported brands.

Main technical parameters of 8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine

Model 　 LTS208H
Operating mass Kg 8000
Static linear load N/cm 230
Vibrating amplitude Mm 0.4
Vibrating frequency Hz 43
Centrifugal force KN 70
Travel speed Km/h 10
Grade ability % 25
Turning radius mm 6000
Overall dimension mm 5030×1880×2570
Vibration round width mm 1700
Wheelbase mm 2684
Ground clearance mm 280
Diesel power kW 75
Diesel model 　 Cum-mins 4BT3.9
Water tank capacity L 450

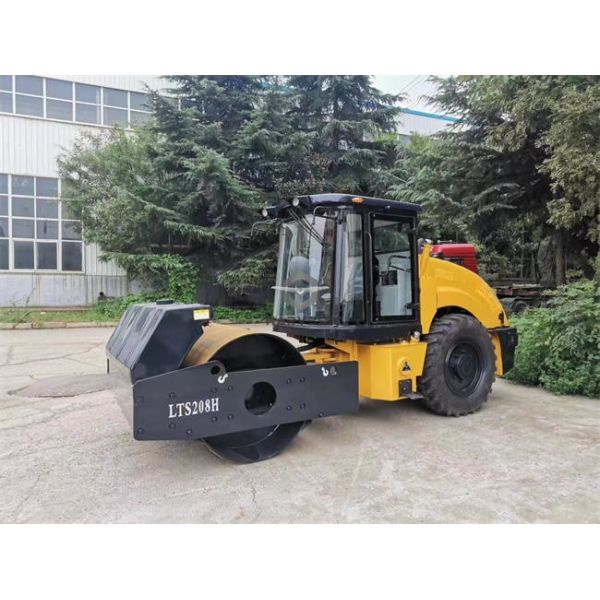

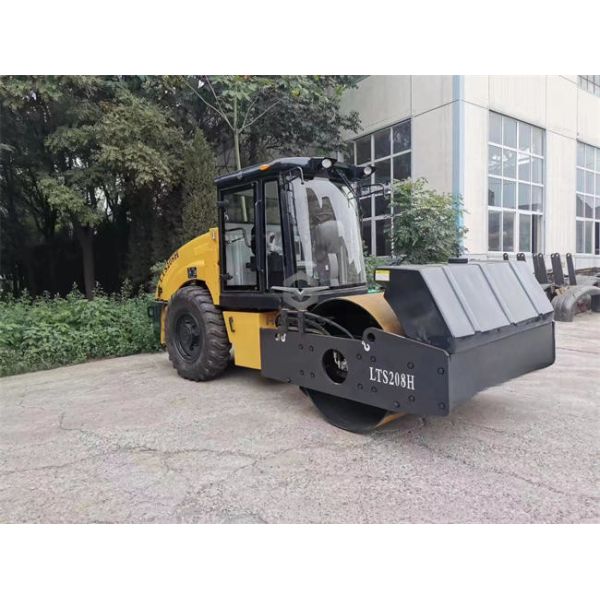

Detailed Pictures of 8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine

8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine8 Ton Hydraulic Vibratory Road Roller LTS208H with Cum-mins Engine
