21 ton Crawler Excavator HW220-9 With 1m3 Bucket 133kw Engine from china
21 ton Crawler Excavator HW220-9 With 1m3 Bucket 133kw Engine from china
21 ton Crawler Excavator HW220-9 With 1m3 Bucket 133kw Engine from china
21 ton Crawler Excavator HW220-9 With 1m3 Bucket 133kw Engine from china
21 ton Crawler Excavator HW220-9 With 1m3 Bucket 133kw Engine from china
21 ton Crawler Excavator HW220-9 With 1m3 Bucket 133kw Engine from china
21 ton Crawler Excavator HW220-9 With 1m3 Bucket 133kw Engine from china
21 ton Crawler Excavator HW220-9 With 1m3 Bucket 133kw Engine from china
Specifications
Brand Name :
HARVEST
Model Number :
HW220-9
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 units per month
Delivery Time :
10-15 working days
Packaging Details :
nude
Operating Weight :
21.6 ton
Bucket Capacity :
1.05m3
Engine :
6BTAA5.9-C178-II
Engine Output :
133kW
Fuel Tank :
330L
Dimensions(L*W*H) :
9625*2980*3075mm
Description

from china 21 ton Crawler Excavator HW220-9 With 1m3 Bucket 133kW Engine Export to Africa
21 ton Crawler Excavator HW220-9 With 1m3 Bucket 133kw Engine from china
♦ Advantages of 21 ton Crawler Excavator
Powerful Performance: Equipped with 6BTAA5.9 engine, delivering 133KW at 2000rpm. HW220-9 delivers strong power output and excellent digging force, ensuring efficient operation even in tough working conditions like hard soil and rock excavation.
Deep Reach Capability: The 6515mm maximum excavation depth allows you to tackle deep foundation and trenching tasks effortlessly.
Height Advantage: With a 9275mm excavation height and a 6560mm unloading height, this excavator is ideal for projects that require precision in high-reaching areas.
Reliable Durability: The whole machine is built with high-quality materials and undergoes strict quality control. Its key components have strong wear resistance and long service life, adapting to long-term heavy-load operations.

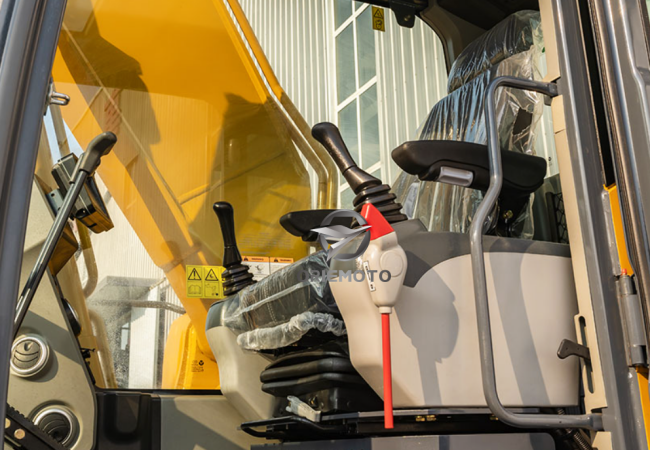

Comfortable Operation: The cab is designed with a humanized layout, featuring a comfortable seat, intuitive control panel and low-noise environment, which reduces operator fatigue during long working hours.
21 ton Crawler Excavator HW220-9 With 1m3 Bucket 133kw Engine from china
Technical Specifications of HW220-9 Ecxavator

Operating Weight21600kg
Bucket Capacity1.05m³
EngineModel 6BTAA5.9
Rated Power133kw/2000rpm
Peak Torque708N.m/1500rpm
Displacement5.9lit
Main
Technical
Parameter		Max. Travel Speed(Low/High)3.1/5.1km/h
Gradeability35°/70%
Max. Drawbar Pull182kN
Swing Speed11.7rpm
Swing Torque65583n.m
Fuel Tank330L
Engine Oil22L
Cooling System28L
DimensionsBoom5700mm
Arm2920mm
Shipping Length9625mm
Shipping height(Top of Boom)3075mm
Track Gauge2380mm
Undercarriage Width(with 600mm Shoes)2980mm
Length to Center of Rollers3460mm
Track length4265mm
Overall Width of Upper Structure2725mm
Counterweight Ground Clearance1075mm
Working
range		Max. Cutting Height10950mm
Max. Dumping Height7190mm
Max. Digging Reach10950mm
Max. Digging Depth6490mm
Max. Digging Reach on Ground9675mm
Min. Front Swing Radius2970mm
Bucket Digging Force(ISO)146kN
Arm Digging Force(ISO)109kN
