Industrial Water Purification Plant Seawater Desalination Equipment 2m³ Per Hour
Industrial Water Purification Plant Seawater Desalination Equipment 2m³ Per Hour
Industrial Water Purification Plant Seawater Desalination Equipment 2m³ Per Hour
Industrial Water Purification Plant Seawater Desalination Equipment 2m³ Per Hour
Industrial Water Purification Plant Seawater Desalination Equipment 2m³ Per Hour
Industrial Water Purification Plant Seawater Desalination Equipment 2m³ Per Hour
Specifications
Brand Name :
Chunke
Model Number :
CK-RO
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 units per month
Delivery Time :
10-15 working days
Packaging Details :
Wooden or carton
Name :
2m³ Per Hour Water Purification Plant Seawater Desalination Equipment RO Machine
Flow :
0.5-100T per hour
Valve :
Automatic / manual
Pump :
CNP
Membrane :
DOW
Application :
Water Purification
Description

2m³ Per Hour Water Purification Plant Seawater Desalination Equipment RO Machine

From water-makers to industrial sized Seawater Purification, we offer a full range of systems. Our units are manufactured to eliminate a large amount of salts and other minerals from seawater using RO. Our equipment does the filtration by employing a high-pressure pump to salty water forcing it through semi-porous membranes denying salts and other organics from flowing through.

The membranes are only tasked to remove dissolved solids while dividing the feed water into purified water and rejected concentrated salts. The salts and other organics are thrown into the brine stream then flushed into a drain. At the end we have purified water that has 99% less dissolved salts. These sea water RO systems have the power to purify extremely high TDS water.

Specifications:

1 Water pump CNP brand or Grundfos brand [Optional]
2 Tank/Vessel Stainless steel 304 or Fiber glass [Optional]
3 RO membrane DOW/Hydranautics/ Toray or Equal brand [Optional]
4 CIP system CNP brand or Grundfos brand [Optional]
5 PP filter Stainless steel 304 or Fiber glass [Optional]
6 PLC control Omron/Mitsubishi/Siemens brand [Optional]
7 Electronic component Schneider brand [Optional]
8 Pipeline Stainless steel 304 or U-PVC [Optional]
9 Production capacity 500L/H

Different Water TDS(Total Dissolved Solids) compare and usage

Raw water/
Application		 Bottled water,
Bag water		 City tap water Brackish water Seawater
TDS Range 2-10ppm 100-1000ppm 2000-20000ppm 20000-40000ppm
Direct Drinking Yes Yes/No No No
Cooking, human
consumption, washing		 Yes Yes No No
Irrigation, Industry,
Animal Drinking		 Yes Yes No No


The process of RO water treatment system


Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→sodium-ion exchanger
(water softener)→ security filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer)

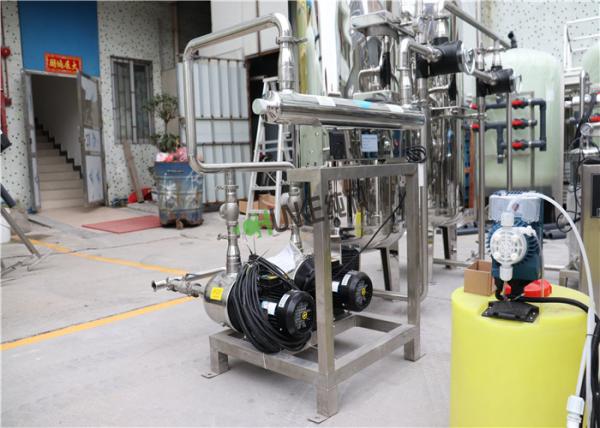

RO System Detail Picture

Industrial Water Purification Plant Seawater Desalination Equipment 2m³ Per HourIndustrial Water Purification Plant Seawater Desalination Equipment 2m³ Per HourIndustrial Water Purification Plant Seawater Desalination Equipment 2m³ Per Hour
