1000L Seawater Desalination Equipment Reverse Osmosis Plant For Drinking / Boat
1000L Seawater Desalination Equipment Reverse Osmosis Plant For Drinking / Boat
1000L Seawater Desalination Equipment Reverse Osmosis Plant For Drinking / Boat
1000L Seawater Desalination Equipment Reverse Osmosis Plant For Drinking / Boat
1000L Seawater Desalination Equipment Reverse Osmosis Plant For Drinking / Boat
1000L Seawater Desalination Equipment Reverse Osmosis Plant For Drinking / Boat
Specifications
Brand Name :
CHUNKE
Model Number :
CK-1.5T
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1 unit
Price :
Negotiate
Payment Terms :
Paypal, L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 units per month
Delivery Time :
30 days
Packaging Details :
Wooden or carton
Item :
1000L Seawater Desalination Equipment Reverse Osmosis Plant For Drinking / Boat
Flow :
1000L per hour
Usage :
Filling machine , food, drink water and so on
Output :
30L-50,000T per day
Material :
Fiber Reinforced Polymer
Raw water :
Underground , tap water , river water and so on .
Certificate :
CE, SGS
Description

1000L Seawater Desalination Equipment Reverse Osmosis Plant For Drinking / Boat

Reverse Osmosis System use for Seawater Desalination

Reverse osmosis pure water equipment is the precision of liquid membrane separation equipment, operating pressure in the water side in

order to overcome natural osmotic pressure, when higher than natural osmotic pressure of operating pressure on thick natural seepage flow

of water molecules in solution side direction will be reversed, the water in the water molecular parts by reverse osmosis membrane into the

side of the dilute solution purification water production.
The reverse osmosis equipment can block all dissolved salts and organics with molecular weight greater than 100, but allow water molecules

to pass through. The desalination rate of reverse osmosis composite film is generally greater than 98%.Based on these characteristics, they

are widely used in seawater desalination, industrial wastewater treatment and desalination, wastewater reuse and other fields. The use of

reverse osmosis equipment before ion exchange can greatly reduce the discharge of operation water and wastewater.

RO System configuration list

NO.Device DescriptionOrigin/brandQuantity
1Raw water pump(CHL2-40 SS304 )CNP1 Set
A. Flow: 2.0m3/H Head: 29m K = 0.55kw
B. Including: inlet valve, return valve, pipe fittings and so on
2Sand filter CK-1465/Ф350X1650MMCHUNKE1 Set
A. FRP tankCHUNKE
B. Manual Valve F56FRunixn1 Set
C. Top&bottom water distributor and center pipe 1 Set
3Carbon filter CK-1465/Ф350X1650MMCHUNKE1 Set
A. FRP tankCHUNKE
B. Manual Valve F56FRunixn1 Set
C. Top&bottom water distributor and center pipe 1 Set
45μm Cartridge filterCHUNKE1 Set
A. Model:Ф195X500X5core material:ABSCHUNKE1 Set
B. 20″×5μm PP filtersChina5pcs
5High pressure pump CDL2S-15CNP1 Set
A. Flow:2.0m3/h Head:112m
B. Material:SS304 K=1.5KW
6Reverse osmosis water production: 1m3/h, desalination rate:96～99%, System water utilization: ≥ 60%1 Set
A. Membrane housing 4040-1core SS304CHUNKE4pcs
B. Membrane element 4040Vontron4pcs
C. 304 Stainless steel frame 1 Set
D. Water inlet solenoid valve 1PC
E. Strong water solenoid valve 1 Set
F. High pressure water inlet control valve 1PC
G. Concentrated water flow control valve 1 Set
7Pipe fittings, valves U-PVCChina1 Set

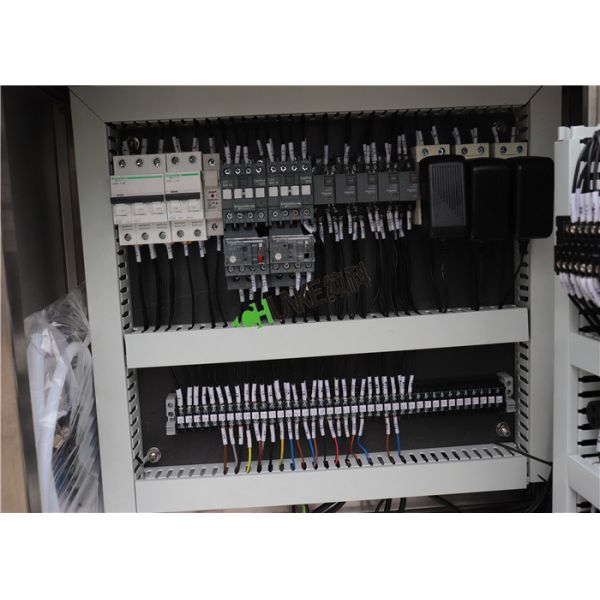

8Electronic control systemCHUNKE1 Set
Main cotrol box:PC programmable automatic control, France Schneider contactors, thermal relays, knobs, switches, lights, Korean pressure controller, time controller.
9Filter MediaChina1 Set
A. Quartz sandChina150KG
B. Activated carbonChina50KG
10Pressure gaugesChina1 Set
A. Reverse osmosis pressure gauge 0～25kgf/ cm2China2pcs
B. High pressure pump low pressure protection switchChina1PC
C. System pressure gauge 0～6kgf/ cm2China2pcs
D. Pure water conductivity meterChina1 Set
E. PC Program controllerChina1 Set
11Flowmeter Panel type(10GPM)China
A. One stage Pure water flowmeter(Panel type 10GPM)China1 Set
B. One stage Strong water flowmeter(Panel type 10GPM)China1 Set

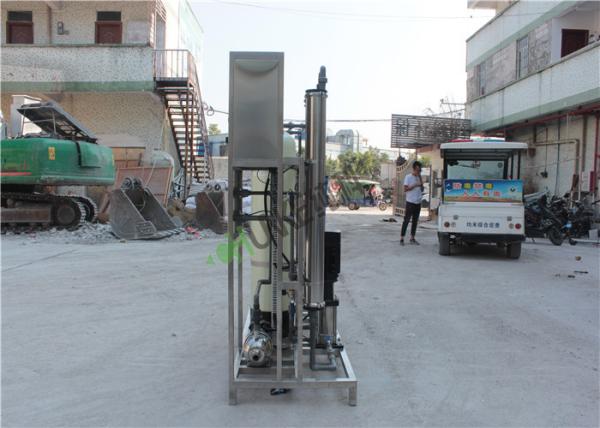

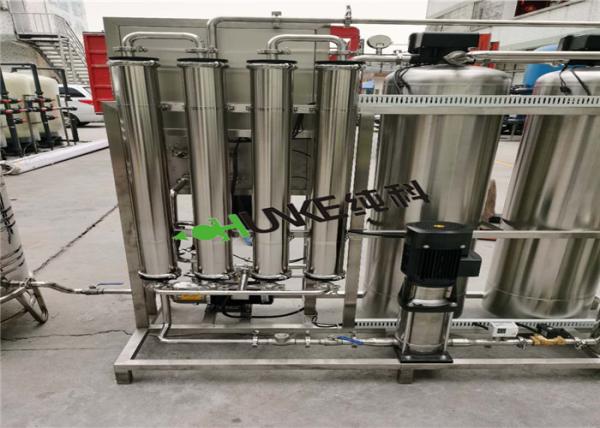

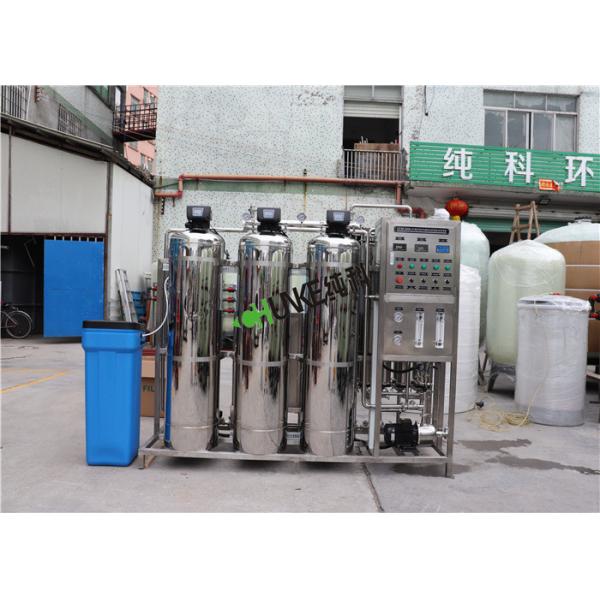

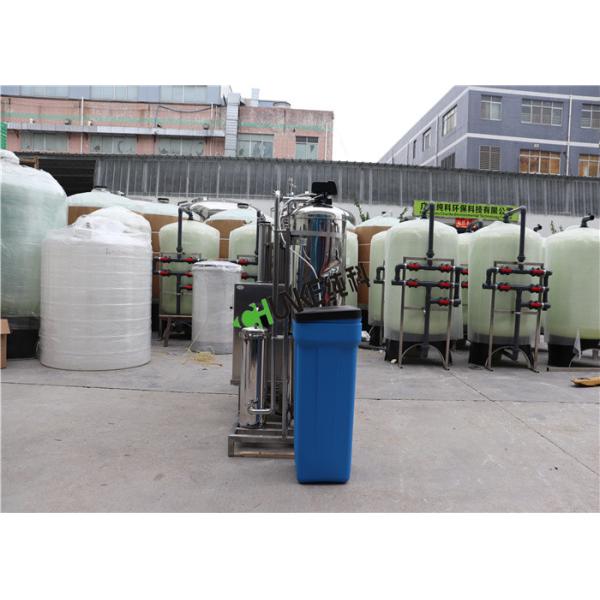

RO System Pictures

1000L Seawater Desalination Equipment Reverse Osmosis Plant For Drinking / Boat1000L Seawater Desalination Equipment Reverse Osmosis Plant For Drinking / Boat1000L Seawater Desalination Equipment Reverse Osmosis Plant For Drinking / Boat
