500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
Specifications
Brand Name :
CHUNKE
Model Number :
CK-RO
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
TT
Supply Ability :
1000 unit per month
Delivery Time :
7-10 days
Item :
Ro water plant
Structure :
Filtering machine
Voltage :
220V / 380V
Pump :
CNP\Ling Xiao\
Recovery rate :
≥50%-60%
Organic removal rate: :
≥98%
Capacity :
0.5TPH
Material :
SUS 304 or SUS 306
Packaging Details :
wooden box package
Description

500L Per Hour Reverse Osmosis Systems deionized water plant industrial machinery equipment

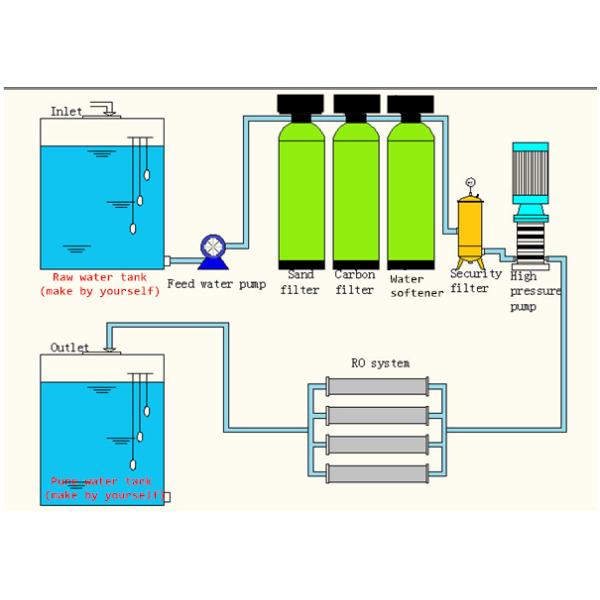

Technological process of RO system:

(raw water+ raw water tank)+ raw water pump+ sand filter+ carbon filter+softener + security filter+ high pressure pump+ reverse osmosis system+ (pure water tank + water supply points)

500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment

Working process


1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.


2. Quartz sand filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.


3. Active carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.


4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.


5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5μm.


6. High pressure pump--Provide the high pressure to RO membrane.


7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.

PRODUCT SPECIFICATIONS
Model
500LPH
two stages
1000LPH
two satages
2000LPH
two stages
3000LPH
two stages
4000LPH
two stages
5000LPH
two stages
Flow of produced water
0.3-0.7
(m/h)
0.5-1.2
(m/h)
1.7-2.2
(m/h)
2.8-3.2
(m/h)
3.8-4.2
(m/h)
4.5-5.2
(m/h)
Flow of concentrated water
0.10-0.2
(m/h)
0.10-0.3
(m/h)
0.2-0.4
(m/h)
0.3-0.5
(m/h)
0.4-0.6
(m/h)
0.4-0.6
(m/h)
Maximum working Pressure
0.4(MPa)
0.4(MPa)
0.4(MPa)
0.4(MPa)
0.4(MPa)
0.4(MPa)
Pressure difference between inlet and outlet
0.1-0.25
(MPa)
0.1-0.25
(MPa)
0.1-0.25
(MPa)
0.1-0.25
(MPa)
0.1-0.25
(MPa)
0.1-0.25
(MPa)
pressure of concentrated water
(Mpa)
0.05-0.1
0.05-0.1
0.05-0.1
0.05-0.1
0.05-0.1
0.05-0.1
Maximum current(A)
3.5
3.5
3.5
3.5
3.5
3.5
Maximum Voltage(V)
200
340
340
340
340
340
Rate of Recovery
70-75%
75-80%
90-95%
90-95%
90-95%
90-95%
Working Temperature(C)
5-25
5-25
5-25
5-25
5-25
5-25

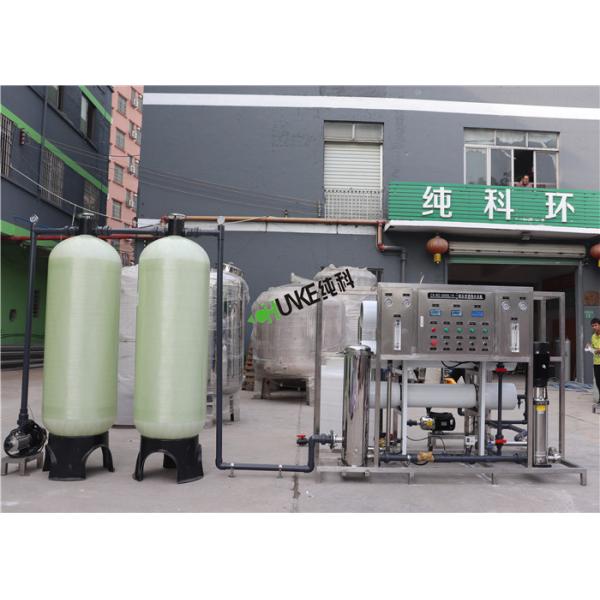

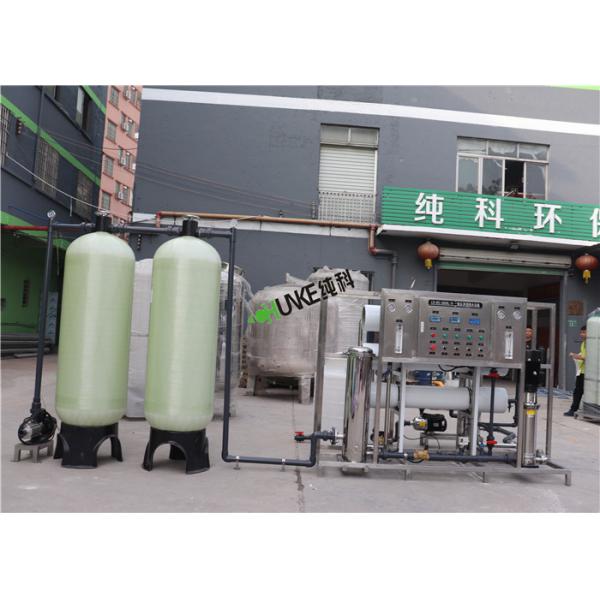

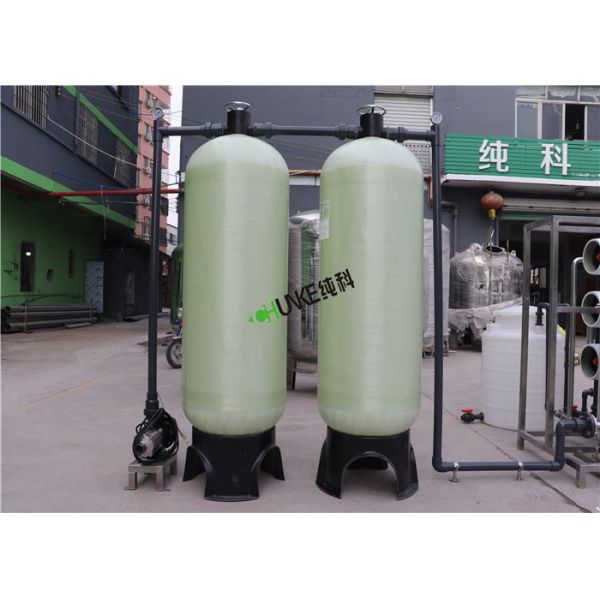

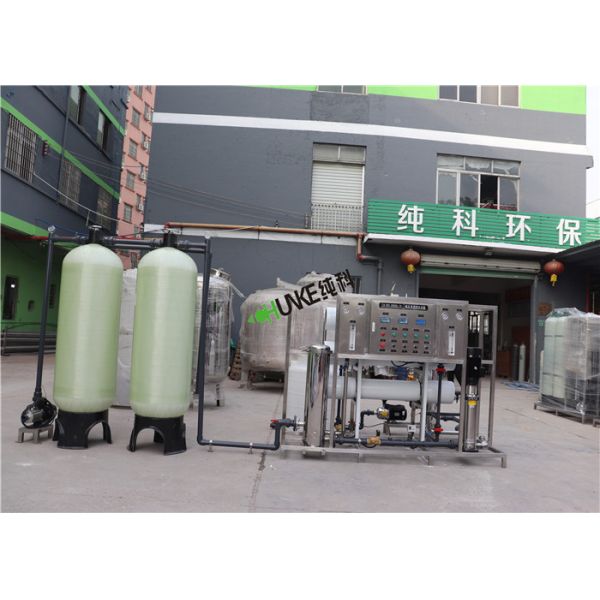

Detail Pictures :

500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment500L Per Hour Reverse Osmosis Systems Deionized Water Plant Industrial Machinery Equipment
