50 Tons Hydraulic Steering Trackless Electric Transfer Cart
50 Tons Hydraulic Steering Trackless Electric Transfer Cart
50 Tons Hydraulic Steering Trackless Electric Transfer Cart
50 Tons Hydraulic Steering Trackless Electric Transfer Cart
50 Tons Hydraulic Steering Trackless Electric Transfer Cart
50 Tons Hydraulic Steering Trackless Electric Transfer Cart
50 Tons Hydraulic Steering Trackless Electric Transfer Cart
50 Tons Hydraulic Steering Trackless Electric Transfer Cart
Specifications
Brand Name :
Remarkabl
Model Number :
RWP/KPX/RGV/AGV
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 sets/year
Delivery Time :
40 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
name :
Transport Cart
Power Supply :
Maintenance Free Battery /lithium Battery/cable
Climbing slope :
No More Than 3 Degrees /customized
Brake :
Electric Motor Brakes
Control Method :
Remote Control/ Hand Operate Pendant/PLC
Warranty :
1 Year
Safety Features :
Audible And Visual Alarm Lamp And Emergency Stop Button,Anti-collision Edge，Laser Obstacle Avoidance Sensor
feature :
Omnidirectional movement/Lifting/Clamping device/customized
Move Way :
Forward,backward,and can rotate 360 degrees in place ,turning while driving with no stop
Application :
Industrial Filed, Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc
Running speed :
0-25 M/min(Adjustable)
Key words :
Industrial Heavy Duty Transport Cart,electric transport cart,battery transfer trolley，battery transfer cart,Coil transfer transfer cart，heavy-duty transporter, trackless transfer cart, Transfer Cart
Steering mode :
Differential , hydraulic, steering wheel Omnidirectional movement
model :
Trackless transfer cart RWP/AGV
Description

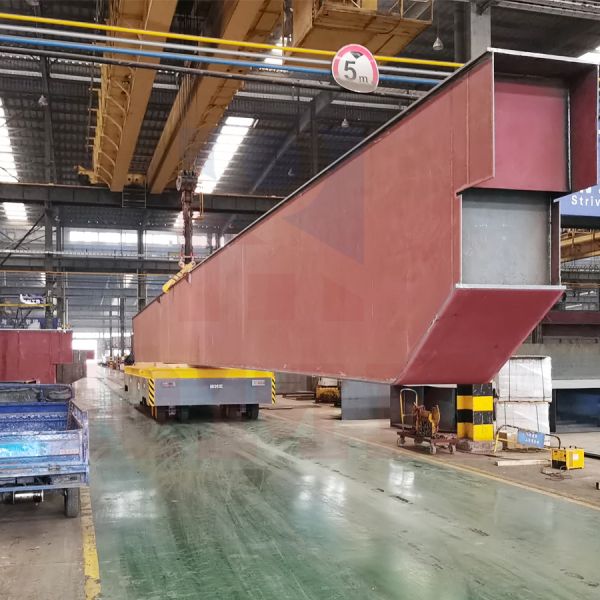

50 tons hydraulic steering trackless electric transfer cart

The RWP series trackless electric flatbed is an electric transportation equipment operated by humans. A transport vehicle with safety protection and various transfer functions, powered by lead-acid batteries or lithium batteries, with motor speed regulation drive technology and dual operation modes of line control and remote control, enables the flat car to achieve functions such as starting, stopping, advancing, retreating, turning, etc., and can rotate 360 degrees in place. This type of vehicle is used for cross transportation in multiple workshops, with high safety and maneuverability. It has the advantages of smooth operation, high precision, fast speed, high flexibility, large load, and high efficiency.

The RWP series trackless electric flatbed is divided into three steering modes: differential steering, hydraulic steering, and steering wheel steering, depending on the load, size, and customer requirements.

50 Tons Hydraulic Steering Trackless Electric Transfer Cart50 Tons Hydraulic Steering Trackless Electric Transfer CartMain parameters of 50 ton hydraulic steering railless vehicle:

Load capacity (t): 50

Dimensions (mm): 8000 × 3000

Operation mode: wire control handle+remote control handle

Power supply method: battery power supply

Other functions: battery display+overvoltage+undervoltage+overcurrent protection

50 Tons Hydraulic Steering Trackless Electric Transfer Cart50 Tons Hydraulic Steering Trackless Electric Transfer Cart

50 Tons Hydraulic Steering Trackless Electric Transfer Cart

50 Tons Hydraulic Steering Trackless Electric Transfer Cart

50 Tons Hydraulic Steering Trackless Electric Transfer Cart

Technical parameters for trackless electric transfer carts
rated load(t) 5 10 15 20 30 40 50 150
impacted rated load(t) 7.5 15 22.5 30 45 60 75 225
structure of frame steel plates welded, beam structure
max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12 27
ground requirement cement floor steel plate ground
table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300 10000×3000
height of the whole cart(mm) 450 530 600 600 650 700 700 1200
ground clearance(mm) 50 75
wheels base(mm) 1500 1700 1800 2000
axles distance(mm) 2500 3100 3400 3900 4300 4800 5200 10000
turning radius(mm) 2501 3101 3401 3901 4301 4801 5201 10001
turning type turning while driving with no stop
control method for turning control button
turning structure mechanical
motor power(Kw) 3.5 5 6 7 10 12 15 15
wheel diameter(mm) Ф300 x 4 Ф350 x 4 Ф400 x 4 Ф400 x 6 Ф500 x 6 Ф600 x 8
wheel material ZG55+hydropur ture
running speed(m/min) 0-15 0-12
brake principle electric magnetic brake
operation method with wire or no wire
battery model D-250 x 24 D-33 x 24 D-400 x 24 D-440 x 24 D-250 x 36 D-330 x 36 D-440 x 36 D-600 x 36
battery maintenance free of maintenance
charger's installation installed on cart split-type
charger function automatic charging
radar control 3-0.3m, automatic stop for obstacles
warning equipment sound and light
other functions turning light, night light and power display

50 Tons Hydraulic Steering Trackless Electric Transfer Cart

50 Tons Hydraulic Steering Trackless Electric Transfer Cart

50 Tons Hydraulic Steering Trackless Electric Transfer Cart
