PLC Program Electric Transfer Cart 7 Tons Motorized Transfer Cart
PLC Program Electric Transfer Cart 7 Tons Motorized Transfer Cart
PLC Program Electric Transfer Cart 7 Tons Motorized Transfer Cart
PLC Program Electric Transfer Cart 7 Tons Motorized Transfer Cart
Specifications
Brand Name :
Remarkable
Model Number :
RWP
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500 sets per year
Delivery Time :
40 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
Color :
Customized
Table Size :
Customized
Load Capacity :
1-300 tons
Operation Mode :
Remote Control/Handle remote control/PLC
Running Speed :
0-25m/min Stepless speed regulation/ Customized
Safety Device :
Audible and visual alarm lamp and emergency stop button,Laser obstacle avoidance sensor
Wheel Material :
Press fit solid rubber wheels
Application :
Industrial Filed, Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc
Description

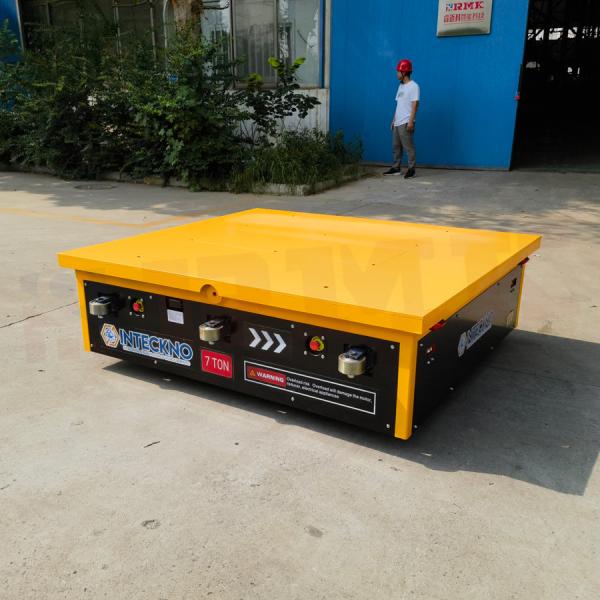

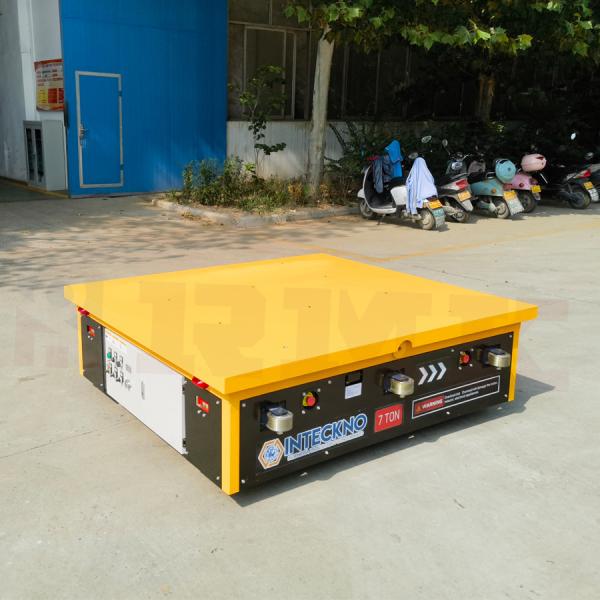

Remote control PLC program 7 Tons Material Electric Transfer Cart

Remote control PLC program 7 Tons Material Electric Transfer Cart Can Move In Any Directions.The Car Adopts A Differential Steering Design, Making Turns Flexible And Convenient, And Its Climbing Ability Is No More Than 5 Degrees.It Is Usually Used In Small Working Space And Workshops.The Trolley Is An Ideal Device And The Customer Needs A Sophisticated Handling Solution In Very Narrow Spaces.The Two Sides Of The Transfer Car's Body Are Designed With Guide Wheels, Which Facilitate Accurate And Accurate Entry Of The Vehicle Into Designated Positions At Specific Workstations.

Customized Parameters About Battery Transfer Trolley:

1.Load Capacity: 7 Tons

2.Table Size: 1800*1650*600mm

3.Power Supply Mode: Maintenance-Free Lead-Acid Battery

4.Safety Device: Alarm Light, Emergency Stop Button, Photoelectric Switch

5.Operate Mode: Hand Pedant + Remote Control

6.Move Way: Forward, Backward, Rotate 360 Degrees In Place, Turn While In The Moving Without Any Stop

7.Other Requirement: Install Guide Wheels On The Car's 2 Sides, In Order To Make The Car Move In The Specific Station To Load The Mold.

Technical parameters for Battery powered electric transfer carts
Model RWP-2t RWP-5t RWP-10t RWP-20t RWP-25t RWP-30t RWP-40t RWP-50t RWP-150t
Rated Load(T) 2 5 10 20 25 30 40 50 150
Table Size(mm) Length 2000 3500 3600 4000 4500 4500 5000 5500 10000
Width 1500 2000 2000 2200 2200 2200 2500 2500 3000
Height 450 500 500 550 600 600 650 650 1200
Running Speed(m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-18
Battery Capacity (Ah) 180 180 180 180 250 250 300 330 600
Battery Voltage(V) 24 36 48 48 48 48 48 48 72
1.Load capacity, table size and rail gauge can be customized;
2.Options: Remote radio control (imported or made in china);
3.Automatic stop when detecting obstacle or person ,limit switches (to limit travel);
4.Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery);
