4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher
4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher
Specifications
Brand Name :
TSKY
Model Number :
PLD2400
Certification :
ISO, CE, BV, FDA,SGS
Place of Origin :
Qingdao China
MOQ :
1 sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000 sets/month
Delivery Time :
5-8 working days
Packaging Details :
pallet, container
Storage hopper :
4x16 m3
Weighing Bin :
4x1.45 m3
Productivity :
75m3/h
Max.weighing :
3000kg
Belt conveyor speed :
1.6m/s
Dimension(L*W*H) :
6600mm*2000mm*3200mm
Application :
Concrete batching plant 25m3
Power(kw) :
4*7.5Kw
Accuracy of batching :
±2%
Warranty :
12 Months
Description

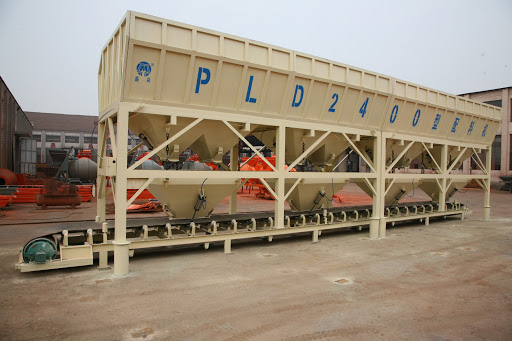

PLD2400 Automatic Concrete Aggregate Weighing Batcher Machine

There are varieties types of concrete needed in various applications, and it is important that the accuracy is maintained through accurate batching and mixing. For this, it is important to use an advanced aggregate concrete batching machine for any concrete batching plant for sale. An automatic concrete batching machine is an ideal machine, and it can help save a lot of time for your construction projects.

Introduction:

The aggregates weighing batcher is an automatic equipment used for quantitative distribution of various materials such as sand and gravel. It is mainly used in the concrete construction industry to replace artificial scales or volumetric measurement methods. It has high measurement accuracy, high distribution efficiency and high degree of automation. It is one of the main parts of the complete set of equipment for automatic concrete mixing plant.

Talented Sky Industry Co.,Ltd has been committed to producing the aggregate weighing batcher for decades. With state of the art technology and advanced processing art, our products are very popular with the customers home and abroad.With our valued products and production capacity,we are capable to be your business partner for the ready mixed concrete and precast elements production.

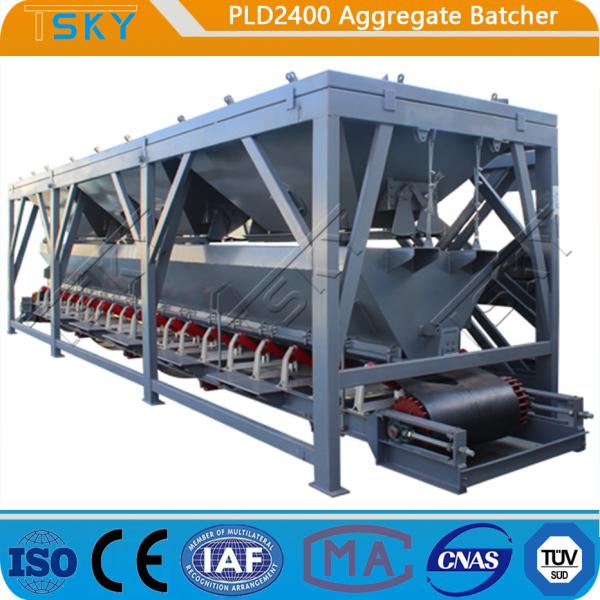

PLD2400 Automatic Concrete Aggregate Weighing Batcher Machine

Concrete batching machine is used for the aggregates batching for concrete mixing station. The aggregates can be 2-4 types, such as coarse stone, fine stone, sand and others. The proportion of each aggregate is weighed automatically controlled by microcomputer. There are hopper cumulative weighing, belt cumulative weighing and separated hopper weighing.
4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher
4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher


Features:

  • Fine and coarse weighing design to maintain high weighing accuracy.
  • Excellent load cell maintain the accurate and stable weighing.
  • Reliable main components are well-known brands at home and abroad.
  • Reasonable overall structure with strong rigidity and beautiful outlook.
  • Short weighing time and high efficiency.
  • A material hood on the head of the belt conveyor is to effectively prevent spillage.
  • A screw tensioning device at the tail of the belt is convenient and quick to adjust the belt tension at any time.
  • The vibrators are installed on the side walls of the sand storage hopper and the sand weighing bin, which facilitates rapid weighing and quick unloading.

Technical data:

Model no. PLD2400
Capacity of weighing hopper(m³) 1x3.60
Capacity of storage hopper(m³) 4x16
Accuracy of batching ±2%
Max weighing(kg) 3000
Material species of batching 4
Belt conveyor speed(m/s) 1.6
Power(kw) 15


More Details:

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

Vibrator Load cell

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

Air cylinder Air storage tank

Simple structure,easy for transportation and operation.

The accumulative weighing mode and separate weighing mode for the batcher can be designed according to the customer’s requirements

Excellent load cell and vibrator installed on each aggregate bins maintain the accurate and stable weighing

TSKY Factory

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

TSKY Certificates

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher 4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher

TSKY Globle Service

4x16m3 Storage Hopper PLD2400 1.6m/s Aggregate Batcher
