6400mmx1600mmx3000mm 800L/H Batching Plant Machine
6400mmx1600mmx3000mm 800L/H Batching Plant Machine
6400mmx1600mmx3000mm 800L/H Batching Plant Machine
6400mmx1600mmx3000mm 800L/H Batching Plant Machine
Specifications
Brand Name :
TSKY
Model Number :
PLD800
Certification :
ISO, CE, BV, FDA
Place of Origin :
Qingdao China
MOQ :
1 sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000 sets/month
Delivery Time :
5-8 working days
Packaging Details :
pallet, container
Capacity :
800L/h
Storage hopper :
2*2m3
Weighing bin volume :
0.8m3
Productivity :
48m3/h
Max.weighing :
1500kg
Belt conveyor speed :
1.25m/s
Dimension(L*W*H) :
6400mm*1600mm*3000mm
Application :
Concrete batching plant 25m3
Description

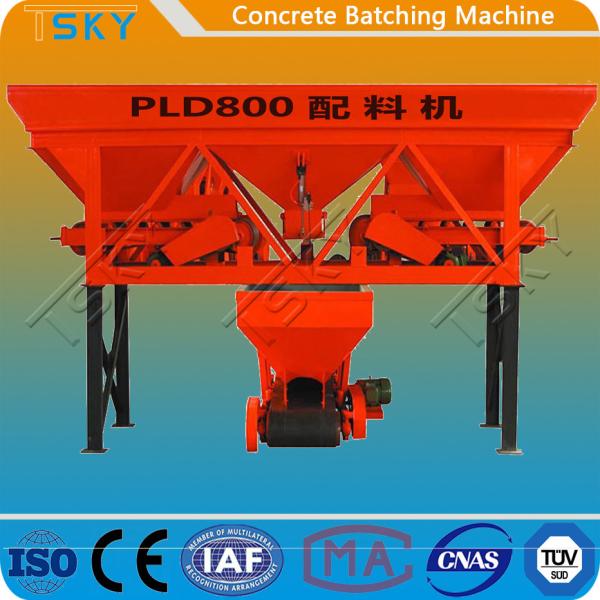

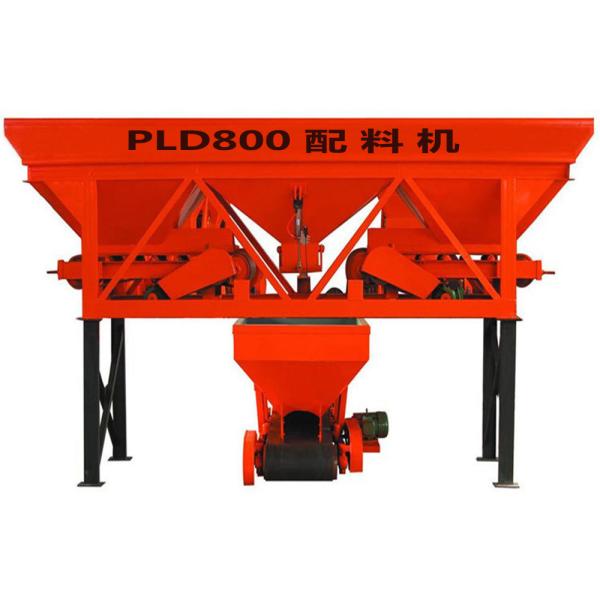

800 Liter PLD800 Aggregate Weighing Batcher For Batching Plant

Introduction:

The aggregates weighing batcher is used to transport stone, sand, and other raw materials on the concrete machine, and the raw materials are conveyed to the concrete mixer through the belt, and mixed with the cement to form concrete. It is widely used for general construction sites, roads, bridges and other projects.


Features:

  • It has many structural forms, flexible combination, high weighing accuracy, simple operation and high automation.
  • Electronic weighing methods, fast and accurate.
  • The body can adopt a split layout to facilitate the loading of various materials.
  • The batching of various materials can be automatically completed according to the concrete ratio set by the user.
  • It can be combined with the corresponding concrete mixing plant to form the different specifications of mixing plants , which is convenient and practical.

Technical data:

Model PLD800
Weighing bin volume 0.8m3
Storage hopper volume 2*2m3
Productivity 48m3/h
Weighing precision ±2%
Max.weighing 1500kg
Nos of aggregates 2
Feeding height 2.4m
Belt conveyor speed 1.25m/s
Power 3*2.2kw
Overall weight 2400kgs
Dimension(L*W*H) 6400mm*1600mm*3000mm
Application Concrete batching plant 25m3

Simple structure,easy for transportation and operation.

The accumulative weighing mode and separate weighing mode for the batcher can be designed according to the customer’s requirements

Excellent load cell and vibrator installed on each aggregate bins maintain the accurate and stable weighing
