PLD800 Integrated Design Concrete Aggregate Cement Batching Weighing Machine

The Aggregate Batcher is the ideal equipment production of high quality concrete for all kinds of industrial and civil engineering, large and medium-sized construction site and precast factory .

The PLD series concrete batching machines consists of feeding system, weighing system and electric control system, it is applicable in different situation, such as bridges and road construction and residential , commercial, industrial constructions.

PLD800 Concrete Batching Machine( separate weighing with 3 hoppers ) accomplish the batching procedure of 3 kinds of materials.

1. automatic batching equipment.
2. The machine adopts detachable structure, which makes it easy to be fed.
3. It can batch several kinds of materials automatically according to the mixture ratio set by users.
4. Electric weighing with a sensor has advantages of accurate weighing and precise batching. And with strong microcomputer control system, users can operate it just with a key.
5. A cover at the top of belt machine can prevent spilling effectively.
6. Easy to clean, maintain and service.
7. This series product has many styles and can make up different types of concrete mixer plant with the JS series concrete mixer as your need. And it is convenient for moving and installation. Meanwhile, the price of the batching machine is just 1/2 to 1/3 of the batching plant of same standard.

Introduction of PLD800 Integrated Design Concrete Aggregate Cement Batching Weighing Machine

The aggregates weighing batcher is an automatic equipment used for quantitative distribution of various materials such as sand and gravel. It is mainly used in the concrete construction industry to replace artificial scales or volumetric measurement methods. It has high measurement accuracy, high distribution efficiency and high degree of automation. It is one of the main parts of the complete set of equipment for automatic concrete mixing plant.

Talented Sky Industry Co.,Ltd has been committed to producing the aggregate weighing batcher for decades. With state of the art technology and advanced processing art, our products are very popular with the customers home and abroad.With our valued products and production capacity,we are capable to be your business partner for the ready mixed concrete and precast elements production.

PLD800 Integrated Design Concrete Aggregate Cement Batching Weighing Machine

Concrete batching machine is used for the aggregates batching for concrete mixing station. The aggregates can be 2-4 types, such as coarse stone, fine stone, sand and others. The proportion of each aggregate is weighed automatically controlled by microcomputer. There are hopper cumulative weighing, belt cumulative weighing and separated hopper weighing.

• Fine and coarse weighing design to maintain high weighing accuracy.
• Excellent load cell maintain the accurate and stable weighing.
• Reliable main components are well-known brands at home and abroad.
• Reasonable overall structure with strong rigidity and beautiful outlook.
• Short weighing time and high efficiency.
• A material hood on the head of the belt conveyor is to effectively prevent spillage.
• A screw tensioning device at the tail of the belt is convenient and quick to adjust the belt tension at any time.
• The vibrators are installed on the side walls of the sand storage hopper and the sand weighing bin, which facilitates rapid weighing and quick unloading.

Technical Data of PLD800 Integrated Design Concrete Aggregate Cement Batching Weighing Machine

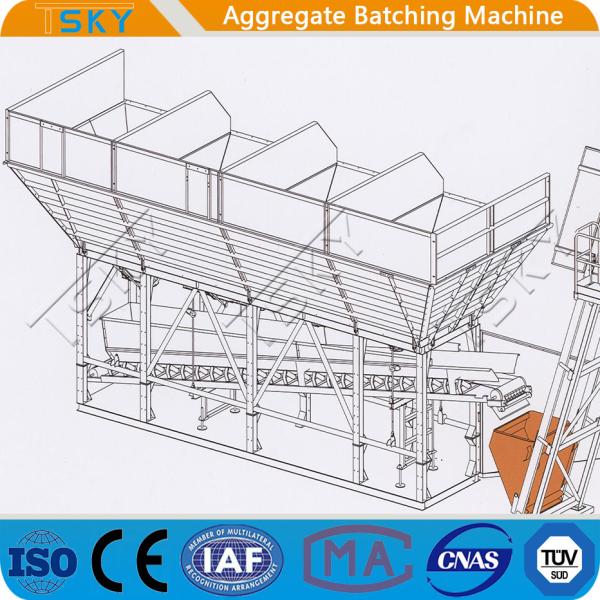

Layout Drawing of PLD800 Integrated Design Concrete Aggregate Cement Batching Weighing Machine

Vibrator Load cell

Air cylinder Air storage tank

Simple structure,easy for transportation and operation.

The accumulative weighing mode and separate weighing mode for the batcher can be designed according to the customer’s requirements

Excellent load cell and vibrator installed on each aggregate bins maintain the accurate and stable weighing
