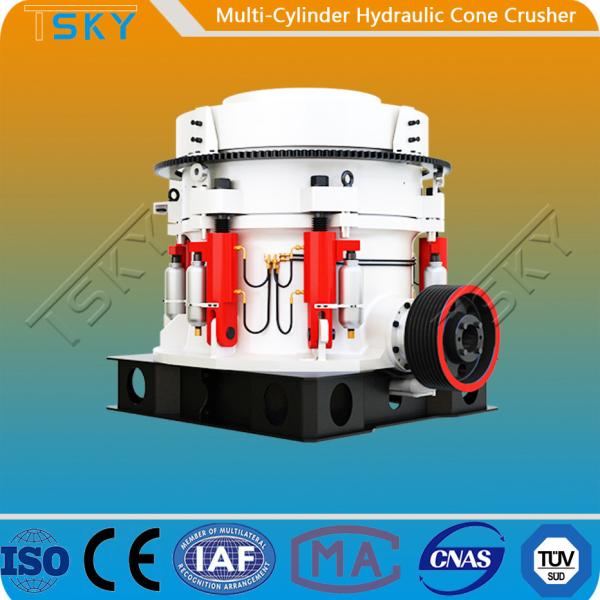

HPMT500 Multi Cylinder 355tph Stone Crusher Machine
HPMT500 Multi Cylinder 355tph Stone Crusher Machine
Specifications
Brand Name :
TSKY
Model Number :
HPMT500
Certification :
SGS, ISO, BV, CE
Place of Origin :
Qingdao, China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets per month
Delivery Time :
7-15 working days after confirmed order
Packaging Details :
Export standard container: 20GP or 40GP, 40HC
Name :
HPMT500 Multi-Cylinder Hydraulic Cone Crusher
Cavity Type :
EC/C/M/F/EF
Feed Opening Size :
Depends on Standard Type or Short Head Type
Discharge Opening Size :
Depends on Standard Type or Short Head Type
Capacity :
355t/h-450t/h
Power :
175Kw-790Kw
Power Voltage/Frequency :
AC380V / 50HZ
Warranty :
12 Months
Description

HPMT500 Multi-Cylinder Hydraulic Cone Crusher

Hydraulic cone crusher is suitable for crushing all sorts of ores and rocks whick is medium or above medium hardness. Compare with jaw crusher, cone crusher is high efficiency, easy adjustment, economic operation and has stable structure, etc.It is widely used in metallurgical industry, hydro-dam construction, transportation, chemical industry and building materials.

Features of HPMT500 Multi-Cylinder Hydraulic Cone Crusher

The HPMT500 multi-cylinder hydraulic cone crusher is a kind of modern crusher with high performance.

On the basis of spring cone crusher, the HPMT400 multi-cylinder hydraulic cone crusher obeys the laminated press crushing principle, and adopts the concept of “more crushing, less grinding” to increase the swing frequency, optimize the crushing cavity and adjust the stroke more reasonably.

The HPMT500 multi-cylinder hydraulic cone crusher is widely used in large concentrating plant, cement plant, quarry, highway construction, water conservancy project, metallurgical plant, construction industry, etc.

The HPMT500 multi-cylinder hydraulic cone crusher consists of frame, support sleeve, adjustment ring, movable cone, eccentric sleeve, transmission device and safety device. Besides, there are other spare parts such as distribution disc, concave liner, mantle, bushing, protective guard, main shaft bushing, reinforcing plate, eccentric sleeve assembly, moving cone assembly and hopper.

The motor of the HPMT500 multi-cylinder hydraulic cone crusher driver the transmission shaft rotating, and the transmission shaft drives the eccentric sleeve rotating round the main shaft which is fixed.

The eccentric sleeve makes the movable cone in rotary and pendulum movement to achieve the result of continuous crushing.

The HPMT500 multi-cylinder hydraulic cone crusher has these features:

1. Higher rotating speed and stroke make production capacity improved by 35%-60%.

2. Better finished product shape.

3. Thin oil lubrication makes the service time increased.

4. The hydraulic protection and hydraulic cavity clearing reduce the downtime for maintenance.

Technical Parameter List of HPMT500 Multi-Cylinder Hydraulic Cone Crusher

Model Cavity Type Standard Type Short Head Type Power (Kw) Capacity (t/h)
Feed Opening Size (mm) Discharge Opening Size (mm) Feed Opening Size (mm) Discharge Opening Size (mm)
HPMT200 EC - - - - 132-200 90-250
C 185 19 76 10
M 125 17 54 6
F 95 13 23 6
EF 0 0 10 5
HPMT300 EC 230 25 - - 180-250 115-440
C 210 20 75 10
M 150 15 50 8
F 105 10 20 6
EF - - 20 6
HPMT400 EC 295 30 - - 280-355 140-630
C 250 25 90 10
M 195 20 50 8
F 110 14 40 6
EF - - 30 6
HPMT500 EC 330 30 - - 355-450 175-790
C 285 25 90 13
M 200 20 55 10
F 133 16 40 8
EF - - 35 6

Model Discharge Opening Size of Closed Side (mm) Capacity (t/h)
10mm 13mm 16mm 19mm 22mm 25mm 32mm 38mm 45mm 51mm
HPMT200 90-120 120-150 140-180 150-190 160-220 170-220 190-235 210-250 210-250 210-250
HPMT300 115-140 150-185 180-220 200-240 220-260 230-280 250-320 300-380 350-440 -
HPMT400 140-175 185-230 225-280 255-320 275-345 295-370 320-430 360-490 410-560 465-630
HPMT500 175-220 230-290 280-350 320-400 345-430 365-455 405-535 445-605 510-700 580-790

Note:

The capacity may vary with different materials and feeding sizes.

Technical parameters are subject the change without notice.
