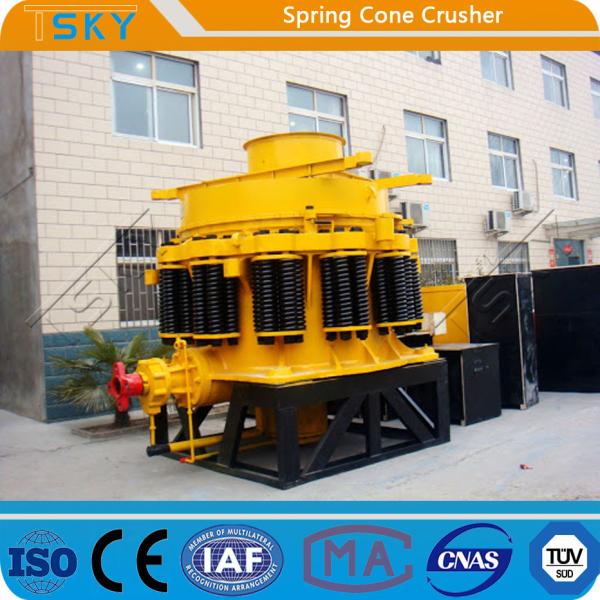

PYZT1750 Spring Cone Crusher

The spring cone crusher has features of tight structure,efficient product,adopts bowl type shaft with high precision reserve, and focus lubrication system, easy adjustment and the spring can product the all the equipment.

Features of PYZT1750 Spring Cone Crusher

The PYZT1750 spring cone crusher is widely used in the metallurgy, construction, road building, chemical and other industries.

The PYZT1750 spring cone crusher is suitable for crushing the high or medium hardness rock and minerals, such as iron ore, cooper ore, limestone, quartz, granite, basalt, dolerite, etc.

The type of crushing cavity of the PYZT1750 spring cone crusher depends on the usage of rock and minerals: the standard type applies to medium crushing; the medium type applies to fine crushing; the short head type applies to for super fine crushing.

The PYZT1750 spring cone crusher consists of frame, transmission device, eccentric hollow shaft, bowl bearing, crushing cone, adjusting device, concave holder, sparing, hydraulic pressure station, etc.

Besides, there are other spare parts such as main shaft, concave & mantle, eccentric bushing and transmission shaft.

When the PYZT1750 spring cone crusher works, the motor drives the eccentric shaft sleeve through the horizontal shaft and a pair of bevel gears.

Under the forces of eccentric shaft sleeve, the shaft axis of crushing cone keeps in rotary pendulum moment, so that the space between the mantle and concave will regularly reduce and increase.

In the meanwhile, the raw materials are crushed under the forces of squeezing bending.

The PYZT1750 spring cone crusher has these features:

1. Reasonable structure, low fault rate and low operating cost.

2. Reliable spring protection system can provide safety and efficient protection of overload.

3. Separate automatic oil lubrication system.

4. Low investment cost, more economic.

5. Wide application, applying to crush all kinds of raw materials.

Technical Parameter List of PYZT1750 Spring Cone Crusher

Note:

The capacity may vary with different materials and feeding sizes.

Technical parameters are subject the change without notice.
