2.4m Rubber Belt Conveyor
2.4m Rubber Belt Conveyor
Specifications
Brand Name :
TSKY
Model Number :
TSKY001
Certification :
CE,BV,FDA,ISO
Place of Origin :
Qingdao China
MOQ :
1 set
Price :
nogotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
50sets/month
Delivery Time :
5-8working days
Packaging Details :
Container
Description

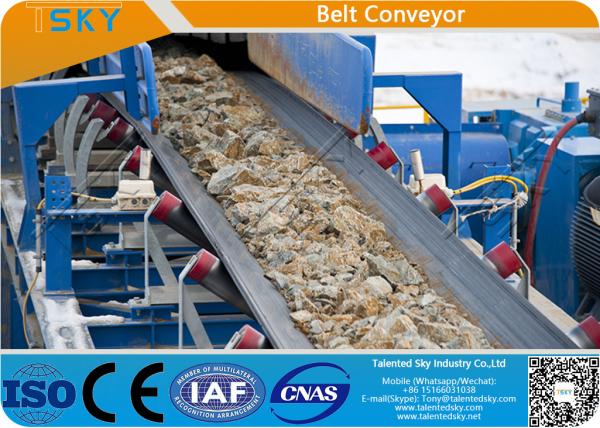

Belt Conveyor for bulk materials handling

The belt conveyor is one of the best options for bulk materials handling equipment . It can continuously transport materials from one place to another place.

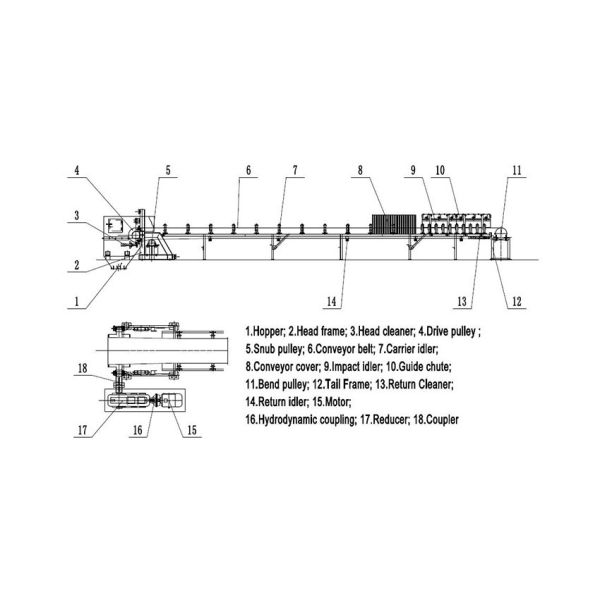

Belt conveyor consist of conveyor belt, pulley, idlers, frame, tension devices, driving unit, protection switches and other components etc.
Belt conveyor is widely used in mining, metallurgy, port, cement, grain, chemical and other industries.

2.4m Rubber Belt Conveyor

TECHNICAL SPECIFICATIONS

Belt width Up to 2.4m
Belt Length 3,000m +
Capacity > 8,000 m³/h
Belt speed Up to 6.0m/s
Max Incline Maximum 25º
Drive type Motorized pulley | Geared motor unit | Motor+fluid coupling+gear box
Belt Options Antistatic| Fire resistant | Oil resistant | Hard wearing | corrosion resistant
Tension Unit Below 100m – screw type tail tension unit | Above 100m - gravity tension unit or car type tension unit
Protection switches Speed switch | Belt Sway Switches | Pull-cord switch | Blockage sensor
Construction Materials Conveyor case and internals - stainless or coated mild steel | Conveyor support structure - galvanised mild steel
Conveyed Materials Wet or dry bulky materials in the form of crumbs, grains, pellets, shreds, dust, powder, flake, or crushed products of bio-matter, sludge and aggregate.
FEATURES AND BENEFITS
Optimum Performance Increased Safety
Optional self-aligning idlers can effectively prevent belt deviation. Skirts fitted at the feeding point, fully sealed hood at the head section, improve the working environment.
Stable operation, no relative movement between the material and the conveyor belt, to prevent materials spillage and damage. All kinds of protection switches give early warning of possible accidents.
Lower Maintenance Cost Guaranteed Quality
Automatic control, reduce maintenance personnel, save labor costs.
Interchangeable standardized spare parts to reduce purchase cost.		 Over 30 years of professional manufacturing experience and more than thousands of successful projects for end users at home and abroad.
Rapid replacement of spare parts, significantly reducing costly downtime. Scientific design, advanced processing equipment, experienced technicians and skilled workers, complete quality inspection system to ensure the quality of the products.
