Intro:

The machine is used to cut pcb leads after soldering.

Machine specification:

Machine travel range: X-axis 400mm, Y-axis 280mm, Z-axis 100mm, 360° rotation, U-axis (manual), 90°

Applicable PCB size range: (20mm*50mm) to (200mm*360mm)

(Customizable up to 280mm*380mm)

PCB component and wire height: 110mm (other sizes available)

Origin direction: Left (right optional) (Flow direction: Left origin, right to left; right origin, left to right)

Repeatability: ±0.02m (device accuracy)

Load: Working load 5kg (work surface load); 3kg (Z-axis load)

Drive: Synchronous belt + guide rail (screw drive optional)

Motor: Closed-loop stepper motor (Type/Power): Stepper drive (servo drive optional)

Power supply: 220VAC/50Hz (low-voltage 110V power supply optional)

Air pressure: 6kg/cm²

Rated power: Max. 350W

Drive power: Voltage 24V DC; Current Max. 3.5A/Axis

Cutter type: Pneumatic mechanical pliers

Cutting capacity: Copper wire under 2.0nm (different pliers for different wire diameters)

Cutting efficiency: 120 points/minute

Part extraction method: Negative pressure suction container

Weight:45KG

Machine feature:

Product Features:
1. Self-developed software system, utilizing an industrial computer and keypad, ensuring a stable and durable machine.
2. A dedicated shearing board for four-axis linkage effectively improves shearing positioning accuracy.
3. Simple operation, with a foolproof programming design, requiring no special operator skills.
4. Global modification is possible. Modifying the setting value of a specific shearing point applies to all similar shearing points within the current point.
5. Optimization is available after program setup. When there are no obstacles between two adjacent shearing points, the machine will choose the shortest path, improving efficiency.

Before and after cutting pcb samples

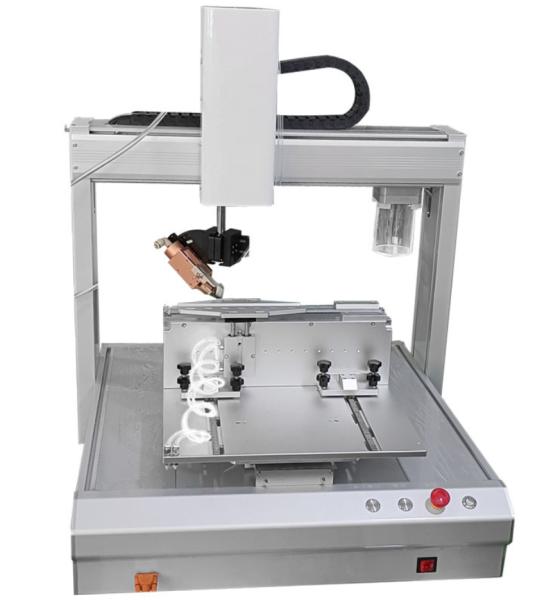

Machine picture
