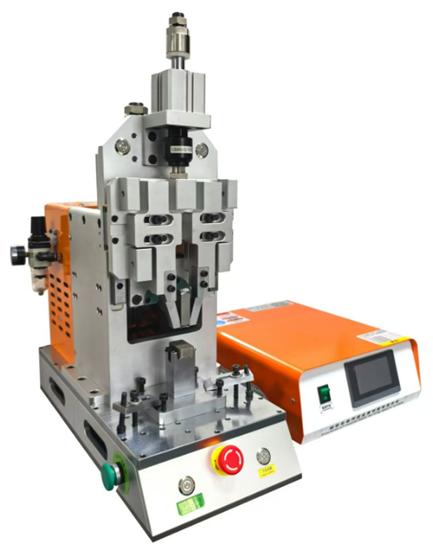

Ultrasonic Metal Spot Welding Machine/Wire and Terminal Splicing Machine
Ultrasonic Metal Spot Welding Machine/Wire and Terminal Splicing Machine
Specifications
Brand Name :
RKENS
Model Number :
RS-20K2000W
Place of Origin :
China
Description

Ultrasonic Metal Spot Welding Machine

Machine specification:

Language Chinese/English
Control method 7-inch high-definition touch screen
input voltage

Single-phase AC 220V (50/60Hz)

Or 110V

Output maximum power 2000W
Working frequency 20 KHz
Welding time range 0.5S-9.99S
Welding range

Copper and aluminum plate welding thickness 0.5mm

Wire and copper, aluminum welding, wire about 1-10 square
Operating humidity 0~40°
Working pressure 0.2 0.8MPa
Ambient temperature 20~70% without condensation
Bracket dimensions 750LX400WX730H MM
Electric box size 400LX280W230H MM
Weight About 70KG

Machine Features/Benefits:

Digital circuitry, time mode, die adjustment mode, adjustable amplitude, automatic frequency tracking, intelligent protection, workpiece drop protection, and a switchable Chinese/English display. Automatic frequency tracking technology (truly fully automatic frequency tracking, eliminating the need for frequency adjustment when changing welding heads or during welding) is included. Dynamic welding current indication allows for manual adjustment of frequency deviation and overcurrent protection during welding. Precision linear guides ensure smooth operation and optimal welding accuracy.

Welding samples

Ultrasonic Metal Spot Welding Machine/Wire and Terminal Splicing Machine

Ultrasonic Metal Spot Welding Machine/Wire and Terminal Splicing Machine

Machine video:
