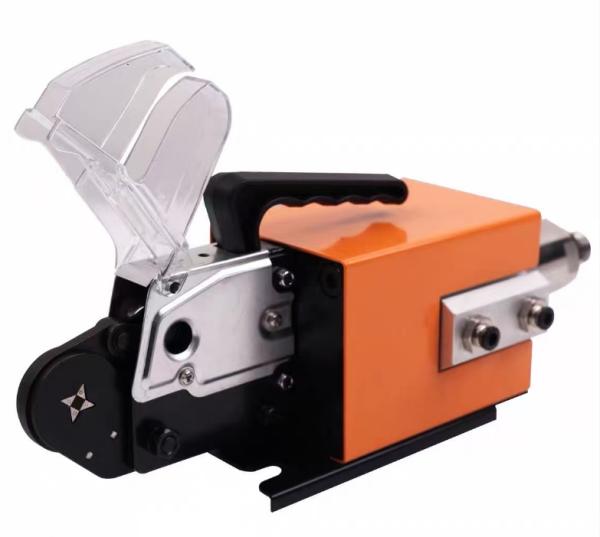

Pneumatic Terminal Tubular Ferrule Crimping Machine With Quadrilateral/Hexagon Die AM6-4/AM6-6
Pneumatic Terminal Tubular Ferrule Crimping Machine With Quadrilateral/Hexagon Die AM6-4/AM6-6
Pneumatic Terminal Tubular Ferrule Crimping Machine With Quadrilateral/Hexagon Die AM6-4/AM6-6
Pneumatic Terminal Tubular Ferrule Crimping Machine With Quadrilateral/Hexagon Die AM6-4/AM6-6
Pneumatic Terminal Tubular Ferrule Crimping Machine With Quadrilateral/Hexagon Die AM6-4/AM6-6
Pneumatic Terminal Tubular Ferrule Crimping Machine With Quadrilateral/Hexagon Die AM6-4/AM6-6
Specifications
Brand Name :
RKENS
Model Number :
AM6-4/AM6-6
Place of Origin :
China
Name :
Pneumatic Terminal Tubular Ferrule Crimping Machine
Suitable for :
Tubular ferrule
Description

Pneumatic Terminal Tubular Ferrule Crimping Machine With Quadrilateral/Hexagon Die AM6-4/AM6-6

Machine Intro:

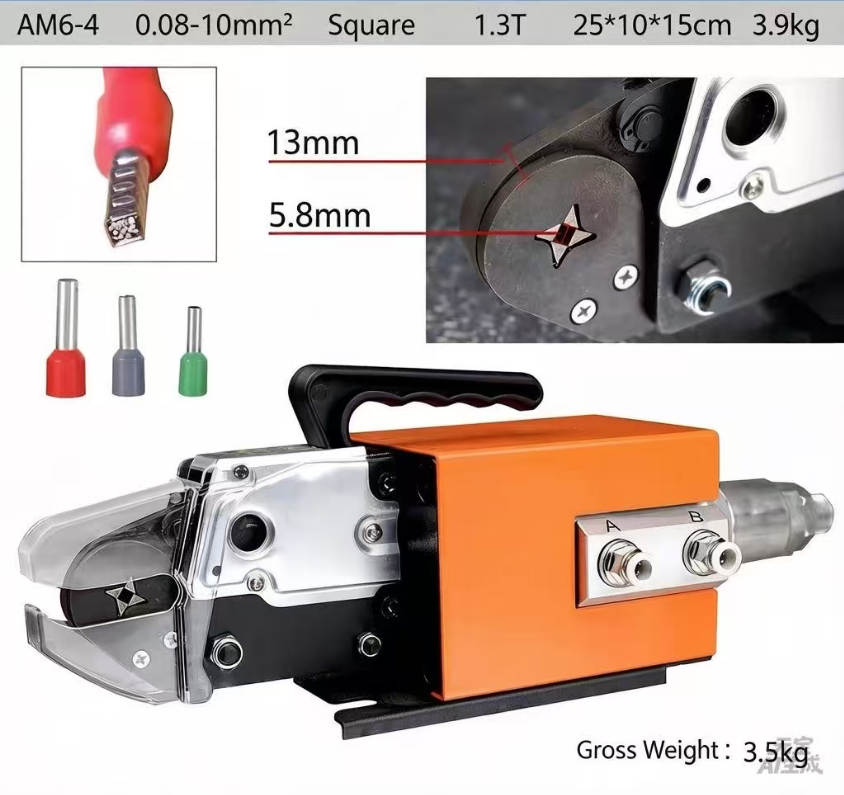

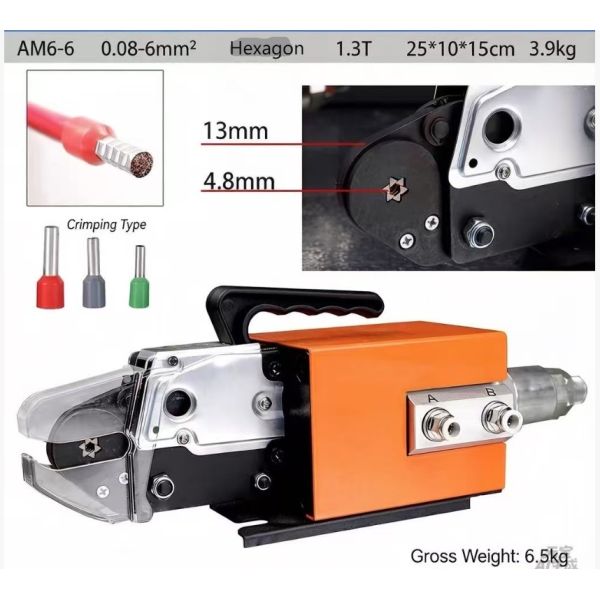

This product employs a dual-channel standard cylinder drive, offering high efficiency and superior quality in both crimp force and crimping speed.This device is specifically designed for tube terminal crimping.AM6-4 is suitable for 24-7 AWG After crimping, the appearance is quadrilateral.AM6-6 is suitable for 24-9 AWG After crimping, the appearance is hexagonal.

Model AM6-4/AM6-6
Crimp force 1.3T Air pressure: 0.5Mpa
Available air pressure 0.5-0.8MPa
Maximum atmospheric 1MPa
Crimping range 0.25-10mm²/0.25-6mm²
Measurement 43.5*31*21cm
Packing Weight 6.5KG

Operation Guide:

  1. Connect the air tube according to the corresponding markings on the equipment and its accessories.
  2. Connect the gas source. At this stage, the clamp head of the equipment must be in an open position before proceeding with the crimping operation.
  3. Place the terminal to be crimped in the corresponding fixture position and press the foot pedal switch. Crimping is complete.

Precautions:

  • This equipment requires a machine: an air compressor
  • Operating environment and fluid temperature: 5 - 6O°C
  • The machine must be used in conjunction with a pressurere gulating valve.
  • For the pipelines connected to the equipment, select appropriate air hoses and fittings, and thoroughly clean the interior to prevent debris from entering the machin eand damaging the cylinders.
