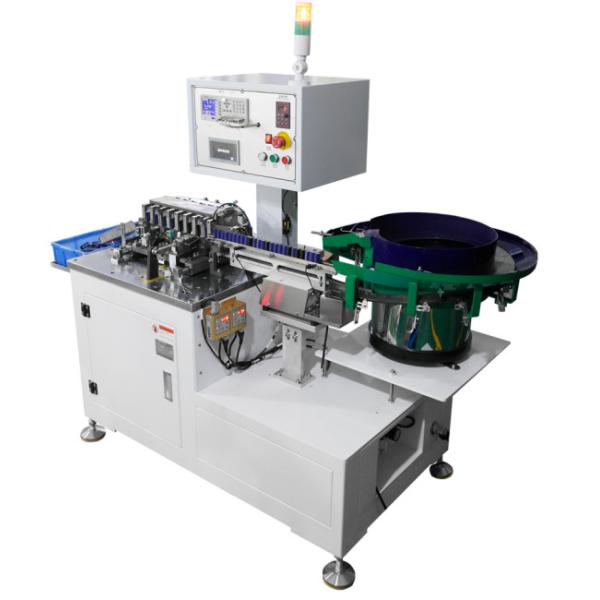

RS-901AW Automatic Bulk Electrolytic Capacitor Forming Machine With Polarity And Capacitance Check

Intro:

RS-901AW is an accurate radial lead forming machine for electrolytic capacitors. It can work for electrolytic capacitor, LED components, and other radial components. It can feed components automatically with special feeder bowl for forming, the customized jig can clamp components to forming tool. Its fast speed is also amazing , which can reach 8000-12000pcs/hour. We Can customize feeder bowl, jigs, forming tool according to components.

Available Electrolytic capacitor size. For different capacitor size range, it needs a different machine.

5-10mm Dia E-capacitor, max body height: 16mm

8-13mm Dia E-capacitor, max body height: 25mm

13-16 Dia E-capacitor, max body height: 30mm

16-18 Dia E-capacitor, max body height: 35mm

Suitable:

• For various types radial components, especially components needs to detect polarity, such as LED, E-caps,etc.
• Can detect polarity.
• Cut lead to different length, bend lead to 90 degrees, K shape, etc
• Jig is easily changed for different size of components
• Sepcial feeding and jig, avoid any damage to LED

Parameters:

Features:

• Cut length: 2.5-28MM, can detect polarity with PLC. Cut lead to different length, bend lead to 90 degrees, K shape,etc
• Can customize different vibration feeder bowl, mold and clamping head according to components. 4-8MM one clamping tool and 8-20MM one clamping tool. Easily changed.
• One machine can be equipped with different jigs, easy change.
• Detect polarity, can work for LED, electrolytic capacitor, which needs polarity check.
• Can test bad components and let them out.

Available Forming Shapes
