Specifications
Brand Name :
RKENS
Model Number :
RS-P-Cut
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-3 days
Packaging Details :
carton box
Name :
Pitch Pin Header Cutting Machine/Manual Type Pin Header Cutter
Suitable :
2.0MM, 2.54mm and 1.27mm pitch pin headers
Description

2.54/2.0/1.27MM Pitch Pin Header Cutting Machine/Manual Type Pin Header Cutter

Intro:

Pin header cutter machine can cut 1-row, 2-row, 3-row pin headers, L shape or straight shape pin headers. Machine can work for pin headers with different pitches, including 1.27mm, 2.0mm and 2.54mm pitch pin headers.

Note: For different pitches, you can use different machines. Or changing cutting die.

Suitable:

Pin headers with 2.54mm 2.0 or 1.27pitch. Can cut pin headers to different pin numbers by adjusting washers and blades.

Note: For different pitch, you can use different machines. Or change cutting die.

Machine specification:

Name Pin header Cutter
Pin header pitch

2.54mm, 2.0mm, 1.27mm. Note: Different pitch needs different machines

Or change cutting die
Size LxWxH: 20x14x14CM Hand shake: 25.4mm
Weight 9KG
Material Washer: 304 stainless steel, Other parts: iron with plating

User guide:

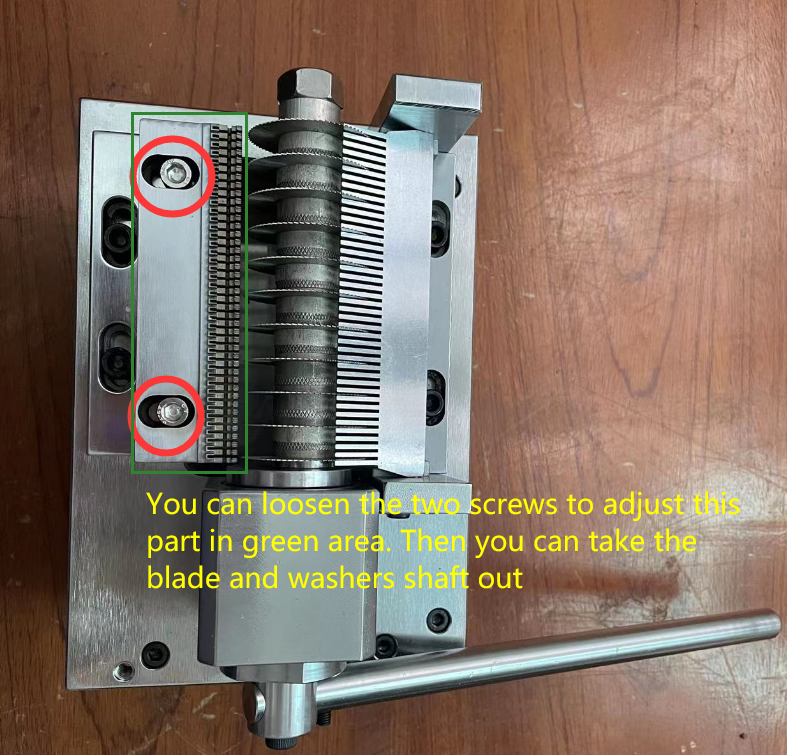

Operator can adjust blade and washers to adjust different pin numbers cutting.

See picture below.

Explain:

Blade is 0.3mm thick, there are three types thickness washers: 2.24mm, 2.54mm and 5.08mm

If you want to cut 2.54mm pin headers to 1P. Just install (1pc 2.24 wash+ 1pc 0.3 blade)+ (1pc 2.24 wash+ 1pc 0.3 blade)…..

2.54/2.0/1.27MM Pitch Pin Header Cutting Machine/Manual Type Pin Header Cutter

2.54/2.0/1.27MM Pitch Pin Header Cutting Machine/Manual Type Pin Header Cutter

2.54/2.0/1.27MM Pitch Pin Header Cutting Machine/Manual Type Pin Header Cutter

2.54/2.0/1.27MM Pitch Pin Header Cutting Machine/Manual Type Pin Header Cutter

2.54/2.0/1.27MM Pitch Pin Header Cutting Machine/Manual Type Pin Header Cutter

2.54/2.0/1.27MM Pitch Pin Header Cutting Machine/Manual Type Pin Header Cutter

Machine video:

Video for cutting different pin headers:
