Specifications
Brand Name :
RKENS
Model Number :
RS-J100
Place of Origin :
China
MOQ :
1SET
Payment Terms :
T/T, Paypal,Western Union
Delivery Time :
3-5 days
Packaging Details :
Carton box or Wooden case
Name :
Wire twister, Wire twisting machine
Usage :
Twisting two or more wires together
Description

Wire Twisting Machine With Automatic Clamp , Full Electric Type Wire Twister

Intro:

This wire twisting machine is full electric type machine, without foot switch. It can sense the wire, and automatically clip the wires. Operator can set start-twisting time after clipping, also can set unclasping time after twisting is finished.

Usage:

.

Twist wires togethers. Suitable for electric wire, copper wire,etc

Parameters:

Spindel rotation speed 300-7500Adjustable Power supply AC220,AC110 V
Max wire diameter 3m Twist Quantity 0.5-9999.9 circles
Max Storage of Work pieces 99 Winding error Zero
Max winding process per piece 20 sections Max output

9999

Feautres:

  • Advanced LCD + backlit display mode, the operation mode of modern mobile phones
  • Motor directly out of the shaft and no transmission torque loss
  • Zero maintenance, no carbon brush, electromagnetic brake, belt, such as mechanical wear, we adopt the advanced electronic control braking way.
  • Perfect industrial protection circuit design, ensure trouble-free working more than 20000 h
  • Data setted can be saved well permanently.
  • Different segments can be set respectively different winding direction, also has the positive and reverse counting function.
  • Different segments can be set respectively different winding speed, small noise, high torque at low speed constant
  • Quick start, high speed, it can be directly brake under high speed, high work efficiency.0-9 start speed can be chosen, slow startup mode can be set respectively in different period of the different ways of slow start
  • After twisting, it has production statistics, number tips,also winding section can be chosen

Wire twisting samples

RS-750W High Speed Wire Cutting Stripping Twisting Machine Full Electric 50HZ

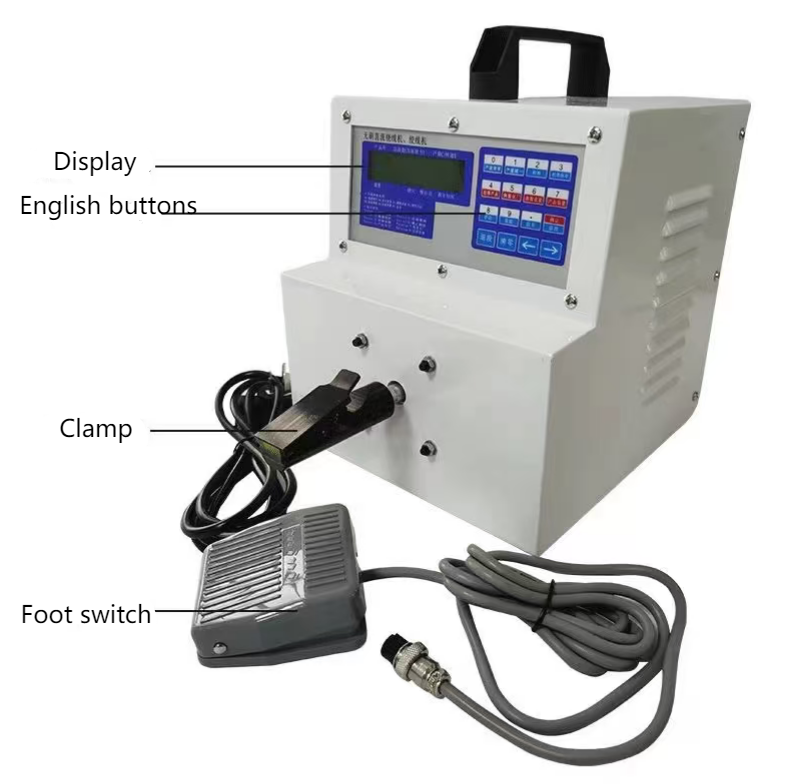

Wire twisting machine structure

RS-750W High Speed Wire Cutting Stripping Twisting Machine Full Electric 50HZ

Our wire twisting machine models

RS-750W High Speed Wire Cutting Stripping Twisting Machine Full Electric 50HZ

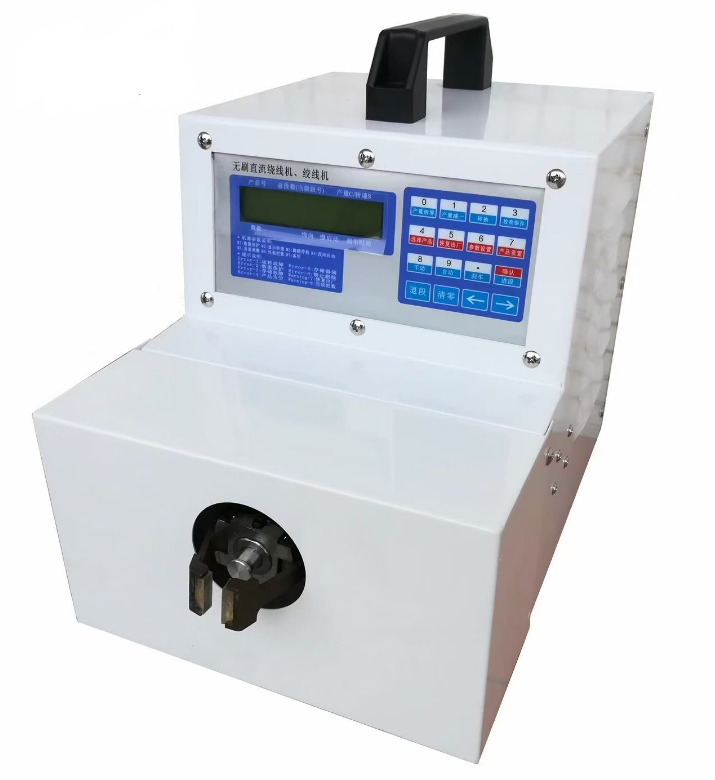

Wire twisting machine with automatic clamp

RS-750W High Speed Wire Cutting Stripping Twisting Machine Full Electric 50HZ
