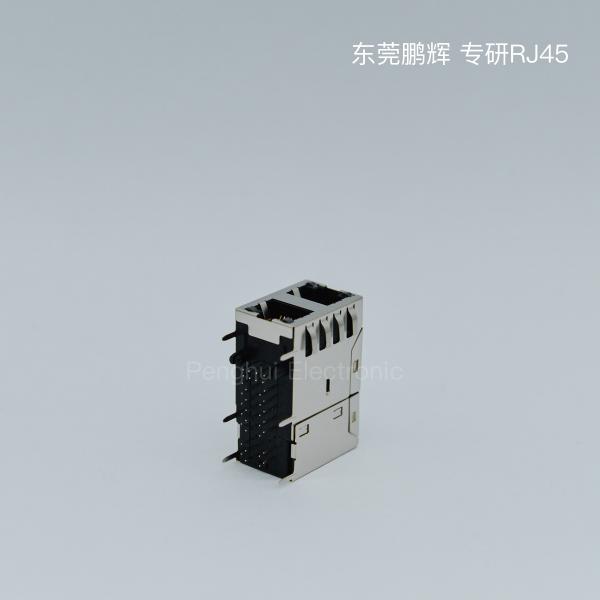

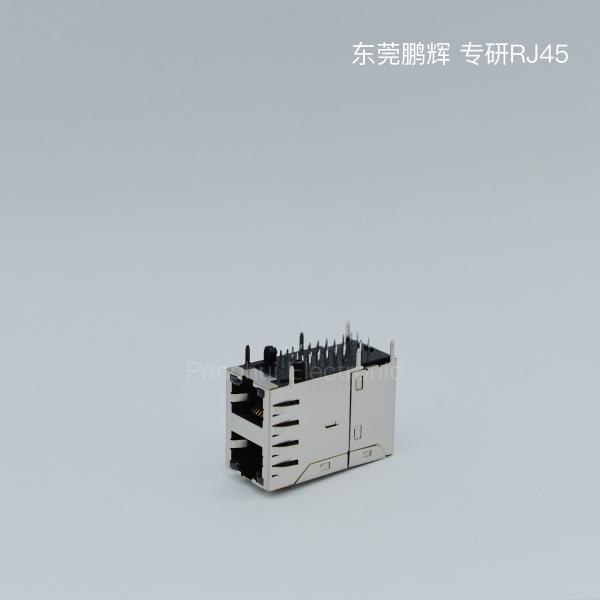

2XN stacked multi RJ45 with Magnetic and POE female RJ45
2XN stacked multi RJ45 with Magnetic and POE female RJ45
2XN stacked multi RJ45 with Magnetic and POE female RJ45
2XN stacked multi RJ45 with Magnetic and POE female RJ45
2XN stacked multi RJ45 with Magnetic and POE female RJ45
2XN stacked multi RJ45 with Magnetic and POE female RJ45
2XN stacked multi RJ45 with Magnetic and POE female RJ45
2XN stacked multi RJ45 with Magnetic and POE female RJ45
Specifications
Brand Name :
PHCONN
Model Number :
R01-P7550523D5W
Certification :
ROHS UL certification
Place of Origin :
China
MOQ :
500pcs
Price :
DongGuan Penghui electronics co.,ltd
Payment Terms :
Western Union, T/T
Supply Ability :
500K/Month
Delivery Time :
15-25days
Packaging Details :
Stand export packaging
Package :
Stand export packaging
Poe Std :
IEEE 802.3af/at
Transformer :
10/100/1000/2.5G/5G Base - T options
Product Number Of Ports :
2/4/8/12/16 port options
welding process :
THT wave soldering
Left LED :
color options , Single color or dual color LED
Right LED :
color options , Single color or dual color LED
Specifications :
R01 series
Original Munafactuer :
PHCONN
Application :
Server/ switch /industrial equipment,/network equipment
POE spec :
POE/POE+/POE++
Shielding Housing :
Copper Alloy ,Tin and Nickel plated
Emi Finger :
With or without
Description

RJ45 with 10/100/1000 Magnetic with POE LED options

1.Material:
1.1 Housing: PA46 UL94V-0 Black.1.2 Contact :Phosphor Bronze,Gold plated oncontact area 6u".
1.3 Input Terminal : Brass
1.4 Metal shielding:Copper alloy with Nickel plated,2.Environmental requirements.
2.1 Lead-free process,compliant RoHS

3.Electrical Specification @25°C.

3.1 Inductance: 350uH Min With 8mA DC bias

3.2 Insertion loss :1-100MHZ -1dB max.

3.3 Return loss: 1-30MHZ -18dB min.
30-60MHZ -16dB min.
60-80MHZ -12dB min.
80-100MHZ -10dB min.
3.4 Common Mode Rejection:1-100MHZ -30dB min.

3.5 Cross Talk:1-100MHZ -30dB min.

3.6 DC current:720mA MAX @57VDC continuous

4.0perating and Storage Temperature.

4.1 Operating Temperature : -40'C to +85°C

4.2 Storage Temperature :-40'C to +85°C

5.Wave soldering peak temperature:260°C
