90 Degree Rj45 Connector / RJ11 RJ45 Jack Modular Connector With Sinking Plate

Spectifications

NOTES:

ELECTRICAL:

1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE:1000V AC RMS 50Hz. 1min.

MECHNICAL:

1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.

ENVIRONMENTAL:

1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)

MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.

Lead-free process,compliant RoHS

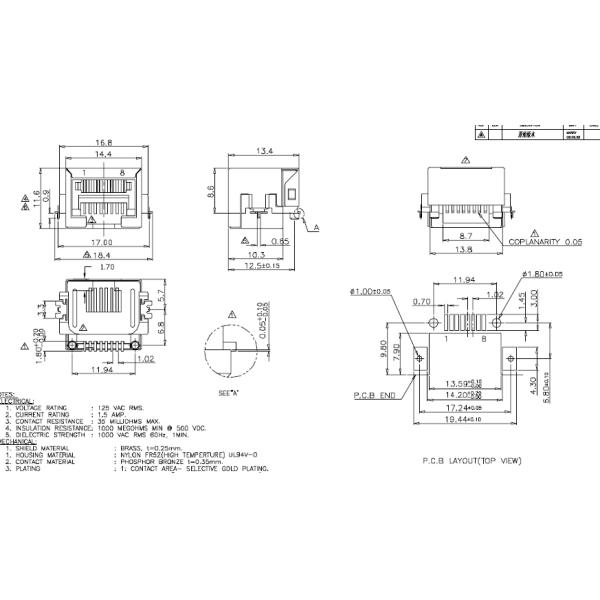

Drawing

90 Degree Rj45 Connector / RJ11 RJ45 Jack Modular Connector With Sinking Plate

(PHC)

Why Choose PengHui

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,

packing .All the step are doing by ourself. So we can control the quality.

1. Manufactured under strict controls.

2. ISO 9001:2008

3. UL Certification

4. Reach Cetitifaction

5. RoHS compliance

6. OEM for PULSE

7. Active Environmental policy

8. Every module tested 3times (not just batch tested)

Unit Price

Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong
With large scale of production lines, we can reach to cost reduction at the most extent

Design&Technical strength

We have many more than 20years experience in connector industry engineer can

support your new project.Design a new tooling time:30-45 workdays

Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.

Metal And Terminal Stamping ; Plastic Injection


Lead Time

With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer

the fastest Lead time,and the particular case is according to the situation.

Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1) New Project: Strong technical and ideal support your new design

2) Existing projects: Try to help customer to save the cost to offer the good quality product a

nd save

3) time.

4) Free Samples:3-5 PCS of each part number

5) Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

6) Customer complaint:24-48 hours reply 8D report

7) Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,

or repair

8) kits if customers are not satisfied)
