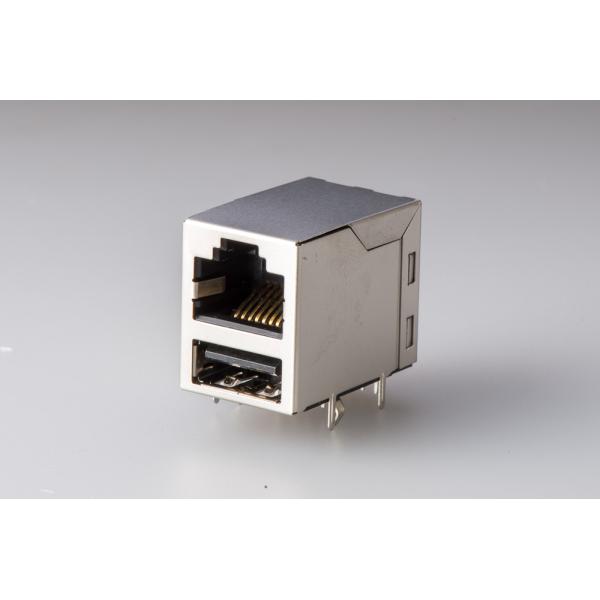

Single Port RJ45 + USB Female Connector Tab Up With 10 / 100 / 1000 Base Transformer
Single Port RJ45 + USB Female Connector Tab Up With 10 / 100 / 1000 Base Transformer
Single Port RJ45 + USB Female Connector Tab Up With 10 / 100 / 1000 Base Transformer
Single Port RJ45 + USB Female Connector Tab Up With 10 / 100 / 1000 Base Transformer
Specifications
Brand Name :
PHCONN
Model Number :
RBA-026S-12W0-NL
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
GuangDong, China
MOQ :
500 PCS
Price :
1.6~3.0 USD/PCS
Payment Terms :
T/T, L/C, D/A, D/P, PAYPAL
Supply Ability :
2,000,000pcs/Month
Delivery Time :
3-30 work days
Packaging Details :
50 pcs in 1 tray,10 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton
plastic :
PBT
terminal :
phosphor copper
application :
1port 10/100/1000 base-T
project :
switch, servers
Description

Single Port RJ45 USB Connector Tab Up With 10 / 100 / 1000 Base Transformer

1x1 Tab Up RJ45 With Single USB and w/o led RBA-026S-12W0-NL


Spectifications

Feature:


1.Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH

with 8MA DC bias
2.Contact:Phosphor Bronze, 6u-inch gold flashed unless specified
1.Housing:Thermoplastic LCP UL94V-0 rated
2.Operating Temperature:0℃ --70℃
3.Storage temperature:-40℃--85℃


Peak reflow temperature rating 245℃


1.Minimum1500Vrms isolation perIeee 802.3requirement

Electrical Specifications:


1.Turns Ratio:Tx & Rx+1:1±5%
2.Insertion Loss:1-30MHz:-1.0dB Max
3.Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4.Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5.Crosstalk:1-100MHz:-30dB Min
6.OCL:100KHz,0.1V,8MADC:350uH Min
7.Hi-Pot:1500VAC,1mA,1Sec


Lead-free process,compliant RoHS

Single Port RJ45 USB Connector Tab Up With 10 / 100 Base Transformer

Single Port RJ45 + USB Female Connector Tab Up With 10 / 100 / 1000 Base Transformer

Drawing

Single Port RJ45 + USB Female Connector Tab Up With 10 / 100 / 1000 Base Transformer

RJ45 With Transformer series

Single Port RJ45 + USB Female Connector Tab Up With 10 / 100 / 1000 Base Transformer



Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions

------------- PHC Sales & Support Team
