RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB
RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB
RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB
RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB
RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB
RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB
RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB
RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB
RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB
RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB
Specifications
Brand Name :
DGKYD
Model Number :
DGKYD811Q008FN4A10DB
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Product Name :
Very Low profile RJ45 connector
Performance :
1000BASE-TX
LED :
Green-Orange/Yellow
Port :
SIngle ports
Mount Style :
DIP
Shield :
phosphor copper nickel plating
OEM/ODM :
Yes
Number of Positions/Contacts :
8p12c (RJ45, Ethernet)
Gold plating on contact pins :
30U
Storage temperature :
-40°C~+85°C
Operating temperature :
-40°C~+85°C
Description
RJ45 Single Port Connector with Top Elastic CAT5 Gigabit Integrated Filter with LED Light
Part Number: DGKYD811Q008FN4A10DB
Product Documentation
Download Product Specification Document (PDF)

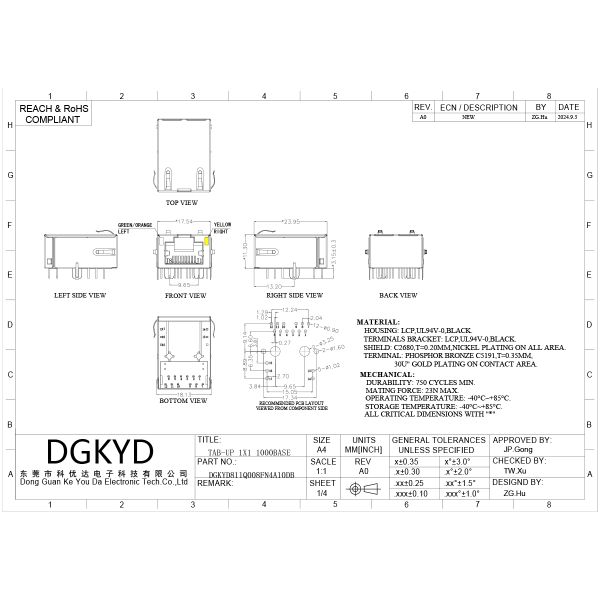

Technical Parameters
Part NumberDGKYD811Q008FN4A10DBBrandDGKYD/OEM/ODM
Product TypeConnector-ModularConnector StyleJack
Jack TypeRJ45Connector TypeModular Jack
Latch StyleStandardLatchTAB-UP
FilterWith FilterLED OptionWith LED
LED ColorGreen-Orange/YellowPanel StopsWith Panel Stops
ShieldedWith metal shieldApplies ToPrinted Circuit Board
Port ConfigurationSingle PortNumber of Positions12
Jack Configuration1X1Terminals per Port8
Shield MaterialCopper Alloy preplated with NickelPCB Mounting OrientationSide Entry (Right Angle)
Contact Mating Area PlatingGold 30uContact Base MaterialPhosphor Bronze
Solder Tail Contact Plating MaterialTin-Lead over NickelPCB Mounting StyleThrough Hole
Termination Method to PC BoardThrough Hole-Press-FitBoard LockWith/Without Board Lock
Housing MaterialLCP PolyesterHousing ColorBlack
Housing Material TemperatureStandardUL Flammability RatingUL 94V-0
Product Images
RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB RJ45 SIngle port connector with top elastic CAT5 Gigabit integrated filter with LED light DGKYD811Q008FN4A10DB
Technical Specifications
  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet

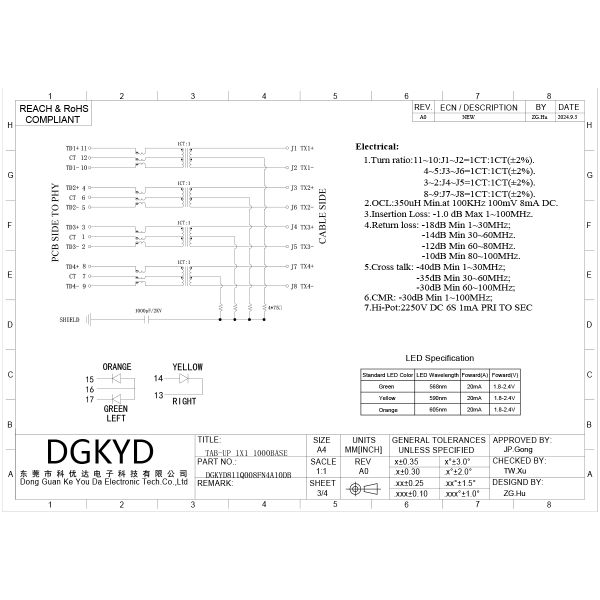

  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities
RJ45 full series of integrated circuit accessories, manufacturer direct supply
  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)
Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
