Specifications
Brand Name :
DGKYD
Model Number :
DGKYD52TE1188AB1A1DB4
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Category :
Modular Jacks
Component Type :
PCB Jack
Type :
RJ45
Magnetic :
NONE
Performance Category :
cat 3 5
Insetion Type :
Side entry
Mount Style :
DIP
OEM/ODM :
Yes
Number of Positions/Contacts :
8p8c (RJ45, Ethernet)
Gold plating on contact pins :
6U
Storage temperature :
-40°C~+85°C
Operating temperature :
-40°C~+85°C
Description
RJ45 Vertical Network Interface Direct Insertion with Light and Shielding Connector DGKYD52TE1188AB1A1DB4
RJ45 vertical network interface direct insertion with light and shielding connector DGKYD52TE1188AB1A1DB4
Product Overview
RJ45 vertical network interface direct insertion with light and shielding connector DGKYD52TE1188AB1A1DB4

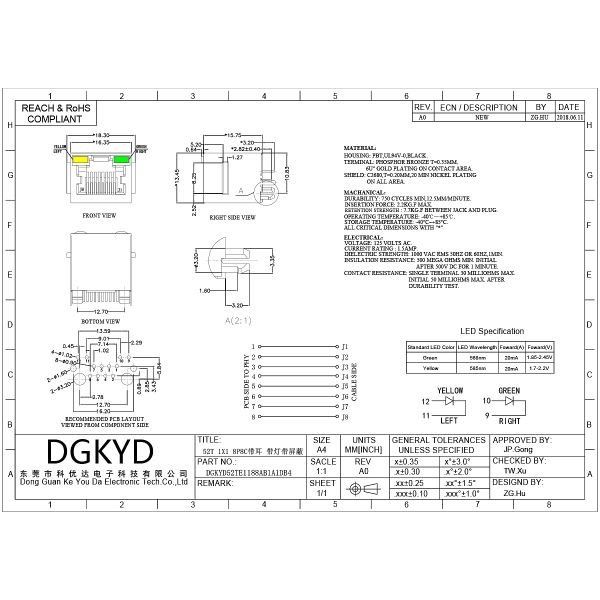

DGKYD52TE1188AB1A1DB4.pdf
Technical Specifications
Part NumberDGKYD52TE1188AB1A1DB4
BrandDGKYD/OEM/ODM
Product TypeConnector-Modular
Connector StyleJack
Jack TypeRJ45
Connector TypeModular Jack
Latch StyleStandard
LatchTAB-UP
FilterWithout Filter
LED OptionWith LED
LED ColorYellow/Green
Panel StopsWith Panel Stops
ShieldedWith metal shield
Applies ToPrinted Circuit Board
Port ConfigurationSingle Ports
Number of Positions8
Jack Configuration1X1
Terminals per Port8
Shield MaterialCopper Alloy preplated with Nickel
PCB Mounting OrientationSide Entry (Right Angle)
Contact Mating Area PlatingGold 6u
Contact Base MaterialPhosphor Bronze
Solder Tail Contact Plating MaterialTin-Lead over Nickel
PCB Mounting StyleThrough Hole
Termination Method to PC BoardThrough Hole-Press-Fit
Board LockWith/Without Board Lock
Housing MaterialPBT Polyester
Housing ColorBlack
Housing Material TemperatureStandard
UL Flammability RatingUL 94V-0
RJ45 vertical network interface direct insertion with light and shielding connector DGKYD52TE1188AB1A1DB4
Company Information
Company Profile
Factory Show
Factory Show
Factory Show
DGKYD Product
DGKYD Product
Product Features
  • Interface type: crystal head application: 10/100/1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or not
  • Coil ratio of magnetic core
  • Magnetics circuit diversification optional
  • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Frequently Asked Questions
  • Q: Are you trading company or manufacture?
    A: We are manufacture. Welcome to our factory.
  • Q: What about your lead time?
    A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
  • Q: Can you provide samples? Are they free?
    A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
  • Q: Can I put my own logo on it?
    A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
