Specifications
Brand Name :
DGKYD
Model Number :
KRJ-5921S2X3WDENL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Jack Type  :
RJ45
MAGNETICS :
NONE
Mount Style :
DIP
Connector Type  :
Connector Assembly
Number of ports :
2x3
Shield :
phosphor copper nickel plating
OEM/ODM :
Yes
Number of Positions/Contacts :
8p8c (RJ45, Ethernet)
Gold plating on contact pins :
G/FU
Storage temperature :
-40°C~+85°C
Operating temperature :
-40°C~+85°C
Description
RJ45 Multi Port Connector Industrial Network Interface Network Port Socket 8P8C KRJ-5921S2X3WDENL
Product Description
RJ45 multi port connector industrial network interface network port socket 8P8C KRJ-5921S2X3WDENL

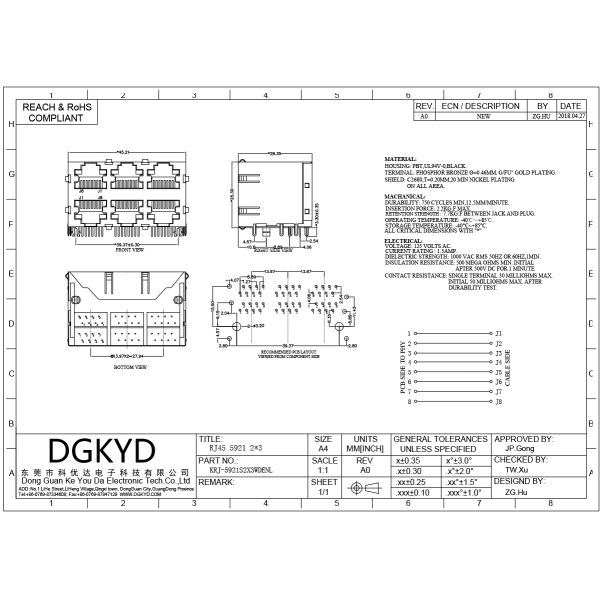

Product Specification Document
KRJ-5921S2X3WDENL.pdf
Parameters
Part Number KRJ-5921S2X3WDENL Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP/DOWN
Filter Without Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration 2X3 Ports Number of Positions 8
Jack Configuration 2X3 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold G/Fu Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
RJ45 multi port connector industrial network interface network port socket 8P8C KRJ-5921S2X3WDENL
Our Strengths
  • Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
  1. Business mode: Manufacturer
  2. Delivery time: on time delivery, around two weeks.
  3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED) Shield with EMI fingers or not coil ratio of magnetic core magnetics circuit diversification optional contact gold plating (FU, 3U, 6U, 15u, 30U, 50U) plastic housing material (PBT,PA46,PA9T, LCP)
  4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
