Specifications
Model Number :
DGKYD24Q077DG1A5D068
Housing Material :
PBT Polyester
Brand Name :
DGKYD
Filter :
With Filter
MOQ :
1 piece
Delivery Time :
10 days
Product Name :
RJ45 Ethernet connector
Mount type :
Dip/THT
operation temperature :
-40°C~+85°C
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Price :
Please contact us to get the latest price.
Port orientation :
Side Entry
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Speed performance :
Cat6
Gender :
Female RJ45
Supply Ability :
100K pcs/day
Port Configuration :
Dual deck 2x4
Place of Origin :
DongGuan of China
storage temperature :
-40°C~+85°C
Packaging Details :
Tray in Carton
Description
Custom Integrated RJ45 Jack Dual Deck 2x4 Gigabit Ethernet Connector Technical Grade DGKYD24Q077DG1A5D068
Product Overview

Custom Integrated RJ45 Jack dual deck 2x4 gigabit ethernet connector technical grade DGKYD24Q077DG1A5D068

Part Number: DGKYD24Q077DG1A5D068

Product Documentation: DGKYD24Q077DG1A5D068.pdf

Technical Parameters
Parameter Value
Part Number DGKYD24Q077DG1A5D068
Brand DGKYD/OEM/ODM
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Modular Jack
Latch Style Standard
Latch TAB-UP/DOWN
Filter With Filter
LED Option With LED
LED Color Green/Yellow-Green/Yellow
Panel Stops With Panel Stops
Shielded With metal shield
Applies To Printed Circuit Board
Port Configuration 2X4 Port
Number of Positions 10
Jack Configuration 2X4
Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PBT Polyester
Housing Color Black
Housing Material Temperature Standard
UL Flammability Rating UL 94V-0

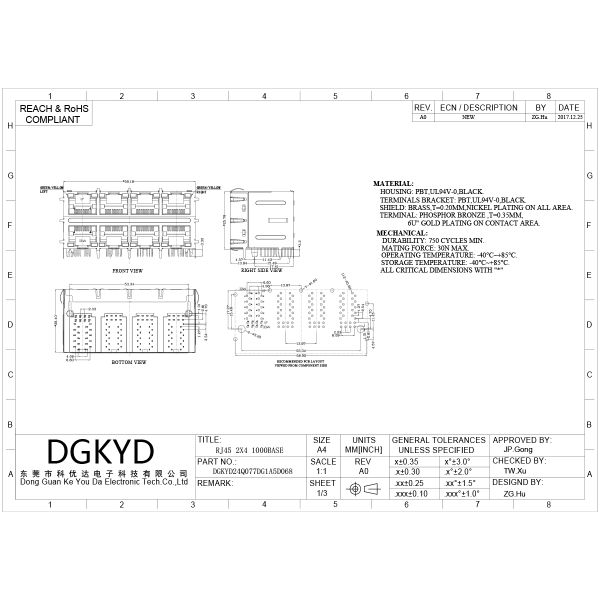

Product Images
Custom Dual Deck 2x4 RJ45 Connector with Cat6 Speed Performance and Side Entry Mount Custom Dual Deck 2x4 RJ45 Connector with Cat6 Speed Performance and Side Entry Mount Custom Dual Deck 2x4 RJ45 Connector with Cat6 Speed Performance and Side Entry Mount Custom Dual Deck 2x4 RJ45 Connector with Cat6 Speed Performance and Side Entry Mount Custom Dual Deck 2x4 RJ45 Connector with Cat6 Speed Performance and Side Entry Mount Custom Dual Deck 2x4 RJ45 Connector with Cat6 Speed Performance and Side Entry Mount Custom Dual Deck 2x4 RJ45 Connector with Cat6 Speed Performance and Side Entry Mount Custom Dual Deck 2x4 RJ45 Connector with Cat6 Speed Performance and Side Entry Mount Custom Dual Deck 2x4 RJ45 Connector with Cat6 Speed Performance and Side Entry Mount Custom Dual Deck 2x4 RJ45 Connector with Cat6 Speed Performance and Side Entry Mount
Technical Specifications
  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet

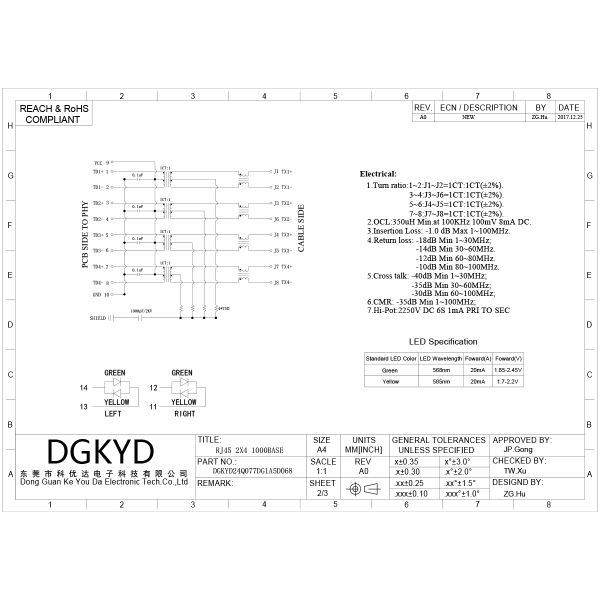

  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
