RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
Specifications
Model Number :
DGKYD22Q077HWA4D068
Product Name :
RJ45 Ethernet connector
Brand Name :
DGKYD
Housing Material :
PBT Polyester
MOQ :
1 piece
Delivery Time :
10 days
Mount Style :
Dip
Price :
Please contact us to get the latest price.
Magnetics :
With internal magnetics
Connector Style  :
Jack
Filter :
With Filter
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Led :
Yes
Connector Type  :
Connector Assembly
Supply Ability :
100K pcs/day
Jack Type  :
RJ45
storage temperature :
-40°C~+85°C
Place of Origin :
DongGuan of China
operation temperature :
-40°C~+85°C
Packaging Details :
Tray in Carton
Description
RJ45 Multiple Port Connectors Stack MJ ASSY 8POS 2X2 CAT6 with magnetics DGKYD22Q077HWA4D068

Part Number: DGKYD22Q077HWA4D068

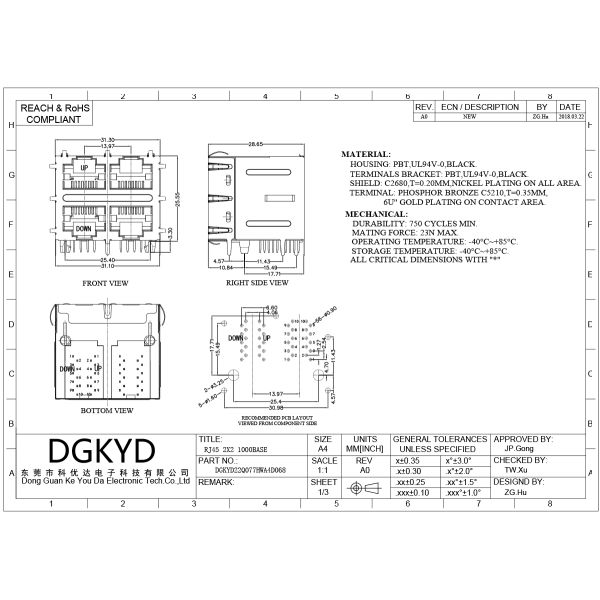

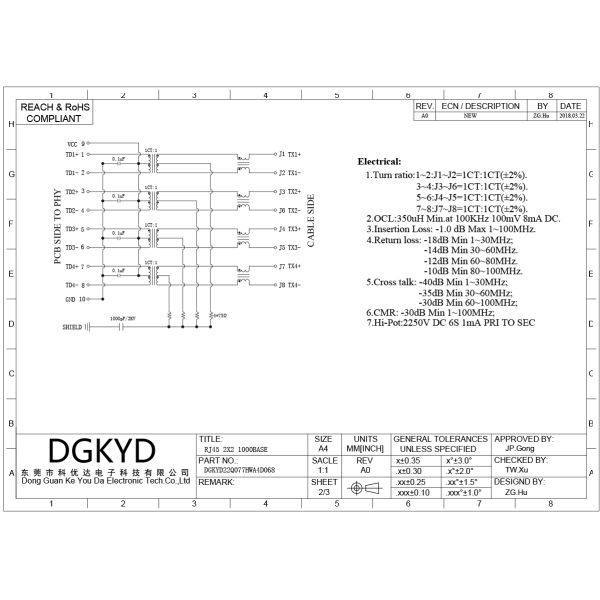

Product Documentation (PDF)

Technical Parameters
Part Number DGKYD22Q077HWA4D068 Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP/DOWN
Filter With Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration 2X2 Port Number of Positions 10
Jack Configuration 2X2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
Product Images
RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible RJ45 Connector Modular Jack with Internal Magnetics 2X2 Port Configuration CAT6 Compatible
Technical Specifications
  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
