Specifications
Model Number :
DGKYD21B002AB2A4D068
Number of pins :
10
Brand Name :
DGKYD
Number of cores :
8
MOQ :
Negotiation
Delivery Time :
10 days
Plastic housing material :
Black PBT
Price :
Please contact us to get the latest price.
PCB Mount Style :
DIP
Shape :
rectangle
Dimension (mm) :
17.21 28.5* 25.5
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Operating temperature :
- 40 ℃ ~ 85 ℃
Place of Origin :
DongGuan of China
Gold plating on contact pins :
6U
Packaging Details :
540Tray in Carton
Storage temperature :
- 40 ℃ ~ 85 ℃
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Encapsulation method :
Double In-line Package
Shield :
phosphor copper nickel plating
Supply Ability :
100K pcs/day
Product type :
RJ45
Description
100 Base - T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter Installed DGKYD21B002AB2A4D068
Part Number: DGKYD21B002AB2A4D068

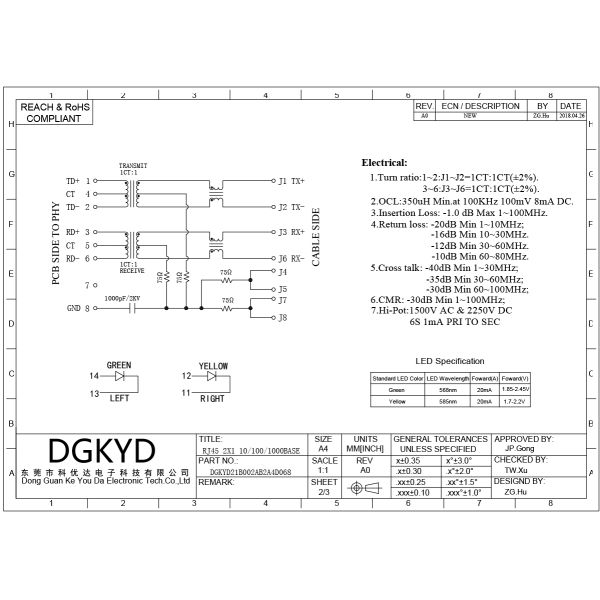

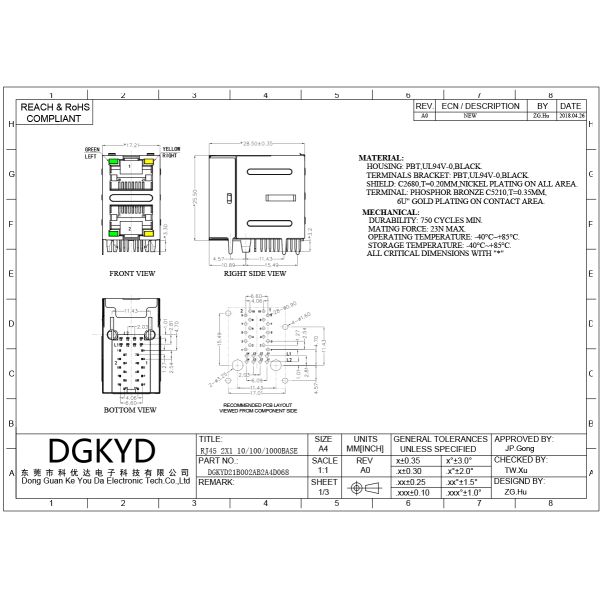

Product Documentation (PDF)
Technical Parameters
Parameter Value
Part Number DGKYD21B002AB2A4D068
Brand DGKYD/OEM/ODM
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Modular Jack
Latch Style Standard
Latch TAB-UP/DOWN
Filter With Filter
LED Option With LED
LED Color Green-Yellow
Panel Stops With Panel Stops
Shielded With metal shield
Applies To Printed Circuit Board
Port Configuration 2X1 Port
Number of Positions 10
Jack Configuration 2X1
Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PBT Polyester
Housing Color Black
Housing Material Temperature Standard
UL Flammability Rating UL 94V-0

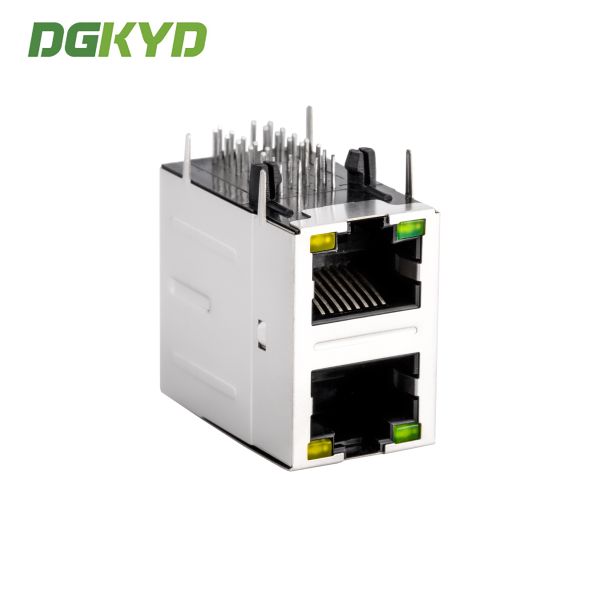

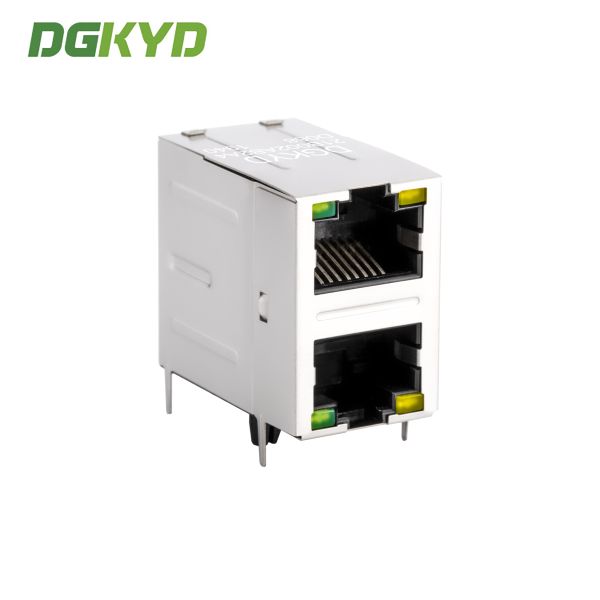

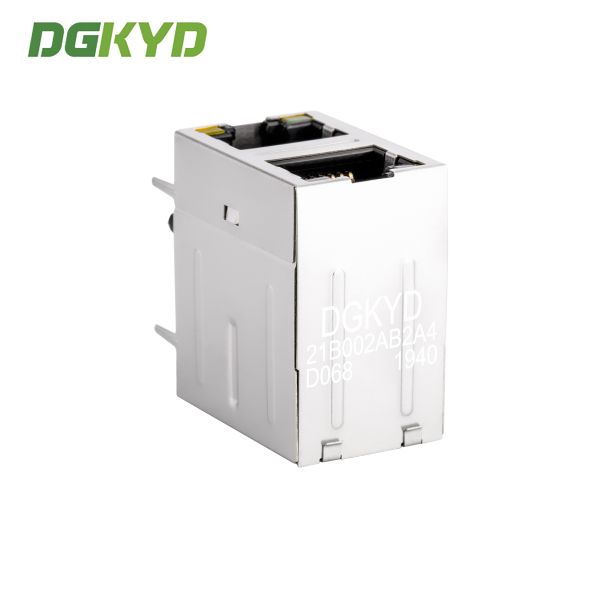

Product Images
100 Base-T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter 100 Base-T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter 100 Base-T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter 100 Base-T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter 100 Base-T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter 100 Base-T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter 100 Base-T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter 100 Base-T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter 100 Base-T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter 100 Base-T Stacked 2 Port RJ45 Jack Module With Magnetic Right Angle Ethernet Filter
Technical Specifications
  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities
RJ45 full series of integrated circuit accessories, manufacturer direct supply
  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)
Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
