Specifications
Model Number :
DGKYD1511Q153CF5W7CBD057
OEM/ODM :
Yes
MOQ :
1 piece
Delivery Time :
10 days
Shield :
phosphor copper nickel plating
Brand Name :
DGKYD
Number of Positions/Contacts :
8p11c (RJ45, Ethernet)
Packaging Details :
Tray in Carton
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Performance :
1000BASE-TX
Mount Style :
DIP
Price :
Please contact us to get the latest price.
LED :
Green/Orange-Yellow
Supply Ability :
100K pcs/day
Product Name :
Very Low profile RJ45 connector
Gold plating on contact pins :
6U
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Port :
SIngle ports
Place of Origin :
DongGuan of China
Storage temperature :
-40°C~+85°C
Operating temperature :
-40°C~+85°C
Description
RJ45 Ethernet Socket Sinking Board Gigabit Integrated Transformer DGKYD1511Q153CF5W7CBD057
RJ45 Ethernet socket sinking board gigabit integrated transformer DGKYD1511Q153CF5W7CBD057
Product Documentation
Product Specification Document (PDF)
Product Parameters
Part Number DGKYD1511Q153CF5W7CBD057 Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Green/Orange-Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration Single Ports Number of Positions 11
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material LCP Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0

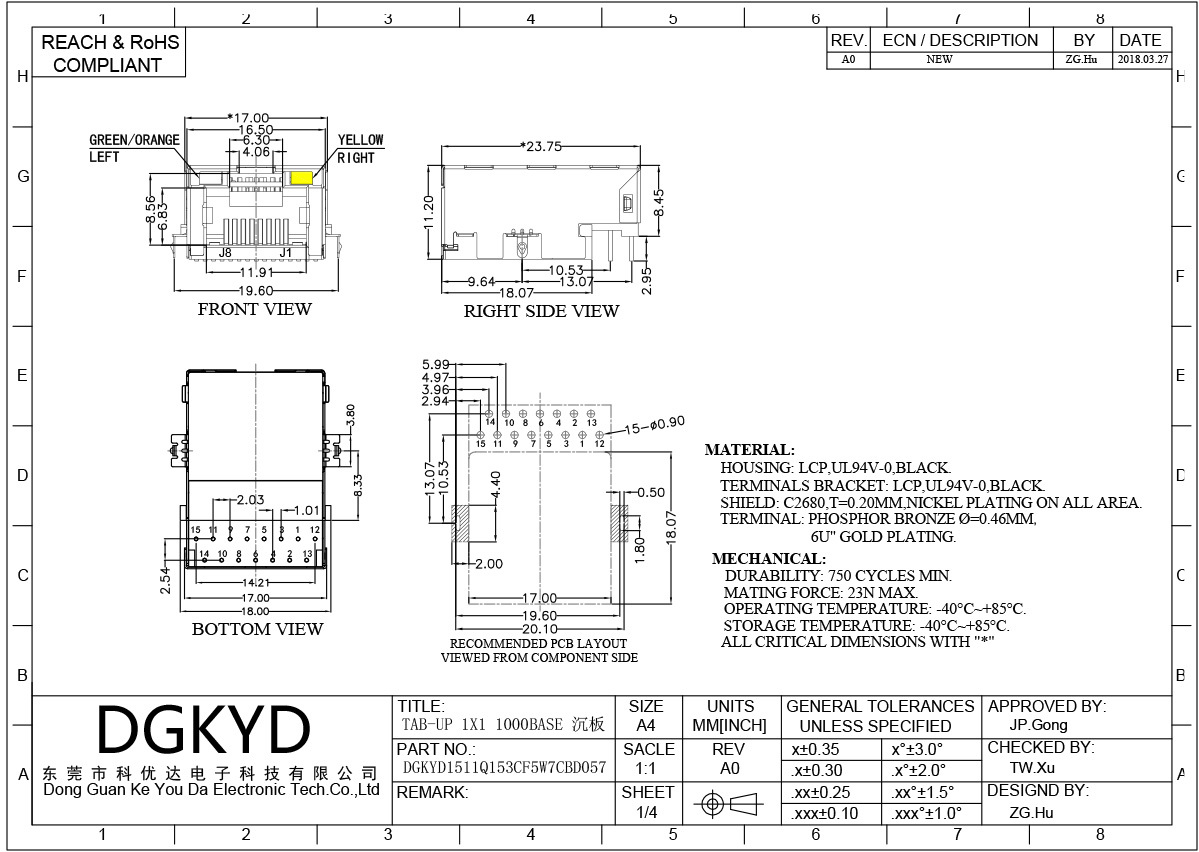

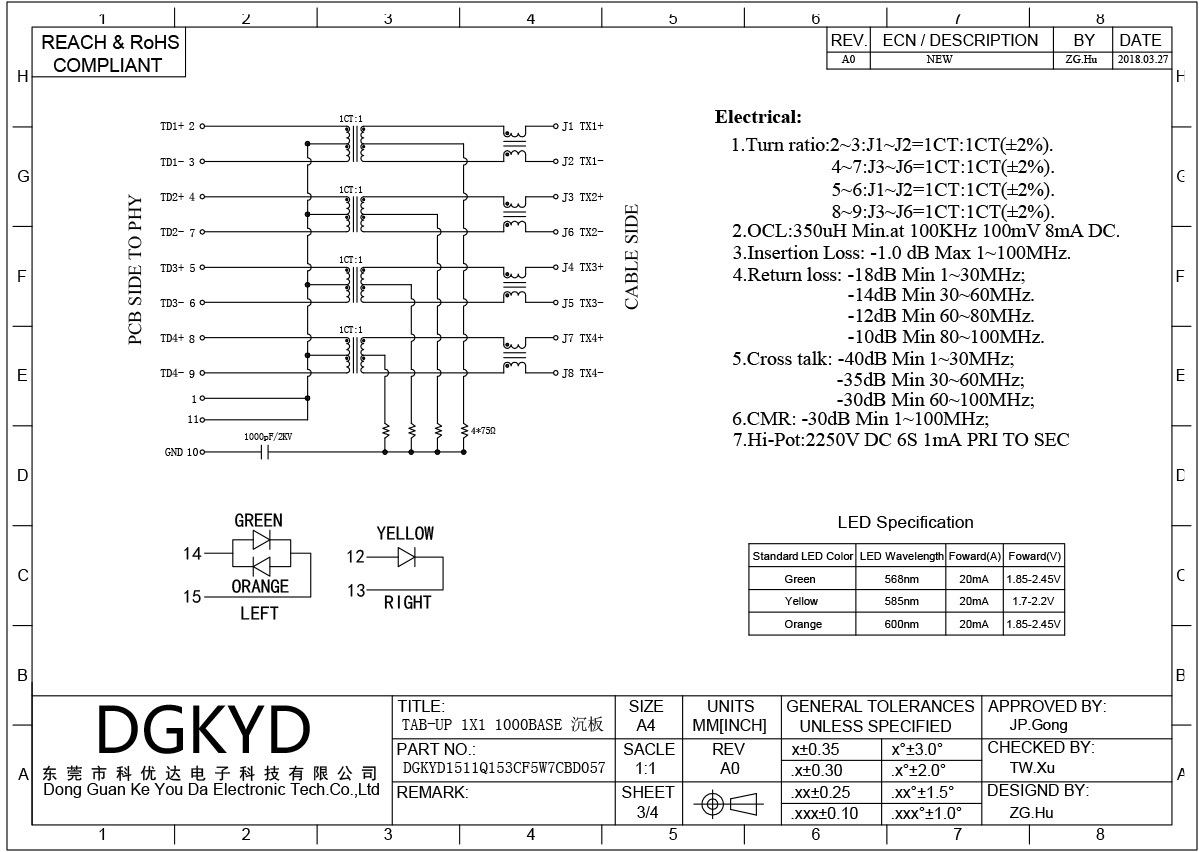

Product Images
Very Low Profile RJ45 Connector with Gigabit Integrated Transformer and Gold Plating 6U Very Low Profile RJ45 Connector with Gigabit Integrated Transformer and Gold Plating 6U Very Low Profile RJ45 Connector with Gigabit Integrated Transformer and Gold Plating 6U Very Low Profile RJ45 Connector with Gigabit Integrated Transformer and Gold Plating 6U Very Low Profile RJ45 Connector with Gigabit Integrated Transformer and Gold Plating 6U Very Low Profile RJ45 Connector with Gigabit Integrated Transformer and Gold Plating 6U Very Low Profile RJ45 Connector with Gigabit Integrated Transformer and Gold Plating 6U Very Low Profile RJ45 Connector with Gigabit Integrated Transformer and Gold Plating 6U Very Low Profile RJ45 Connector with Gigabit Integrated Transformer and Gold Plating 6U Very Low Profile RJ45 Connector with Gigabit Integrated Transformer and Gold Plating 6U
Technical Specifications
  • Interface type: RJ45 connector
  • Application: 10/100/1000BASE-T Ethernet
  • Type: RJ45 built-in magnetics
  • Working frequency: High frequency
  • Characteristic: Filtering, anti-interference
  • Working temperature: -40°C to 85°C
  • Storage temperature: -40°C to 85°C
  • Lead free soldering: Wave soldering height up to 265°C
Manufacturing Capabilities
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
  • Business mode: Manufacturer
  • Delivery time: On time delivery, around two weeks
  • Customization options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or not
    • Coil ratio of magnetic core
    • Magnetics circuit diversification optional
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)
The electrical properties of the products meet industry standards, appearance and mechanical properties meet dimensional specifications, and environmental protection standards. Your satisfaction is the purpose of our service!
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are manufacturer. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
