Specifications
Encapsulation method :
doubleIn-line Package
Model Number :
DGKYD112Q060AB2A1D
Shield :
brass
Contact Plating :
6u Glod Plating
MOQ :
Negotiation
Delivery Time :
10 days
Product type :
RJ45
Brand Name :
DGKYD
Housing Color :
Black
Packaging Details :
560Tray in Carton
Number of Ports :
TAB-Down
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Number of Positions/Contacts :
8p10c (RJ45, Ethernet)
Price :
Please contact us to get the latest price.
Dimension (mm) :
30.8* 21.1*13.55
Storage temperature :
- 40 ℃ ~ 85 ℃
Supply Ability :
100K pcs/day
PCB Mount Style :
DIP
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Filter :
With Filter
Place of Origin :
DongGuan of China
Description
RJ45 Connector Gigabit Ethernet Filtering Network Interface Socket DGKYD112Q060AB2A1D
Product Overview

RJ45 connector Gigabit Ethernet filtering network interface socket DGKYD112Q060AB2A1D designed for high-performance network applications with integrated filtering capabilities.

Part Number: DGKYD112Q060AB2A1D
Product Documentation: DGKYD112Q060AB2A1D.pdf
Technical Parameters
Parameter Value Parameter Value
Part Number DGKYD112Q060AB2A1D Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With Filter LED Option With LED
LED Color Green/Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration Double Port Number of Positions 10
Jack Configuration 1X2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
Product Images
RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet
RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet
RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet

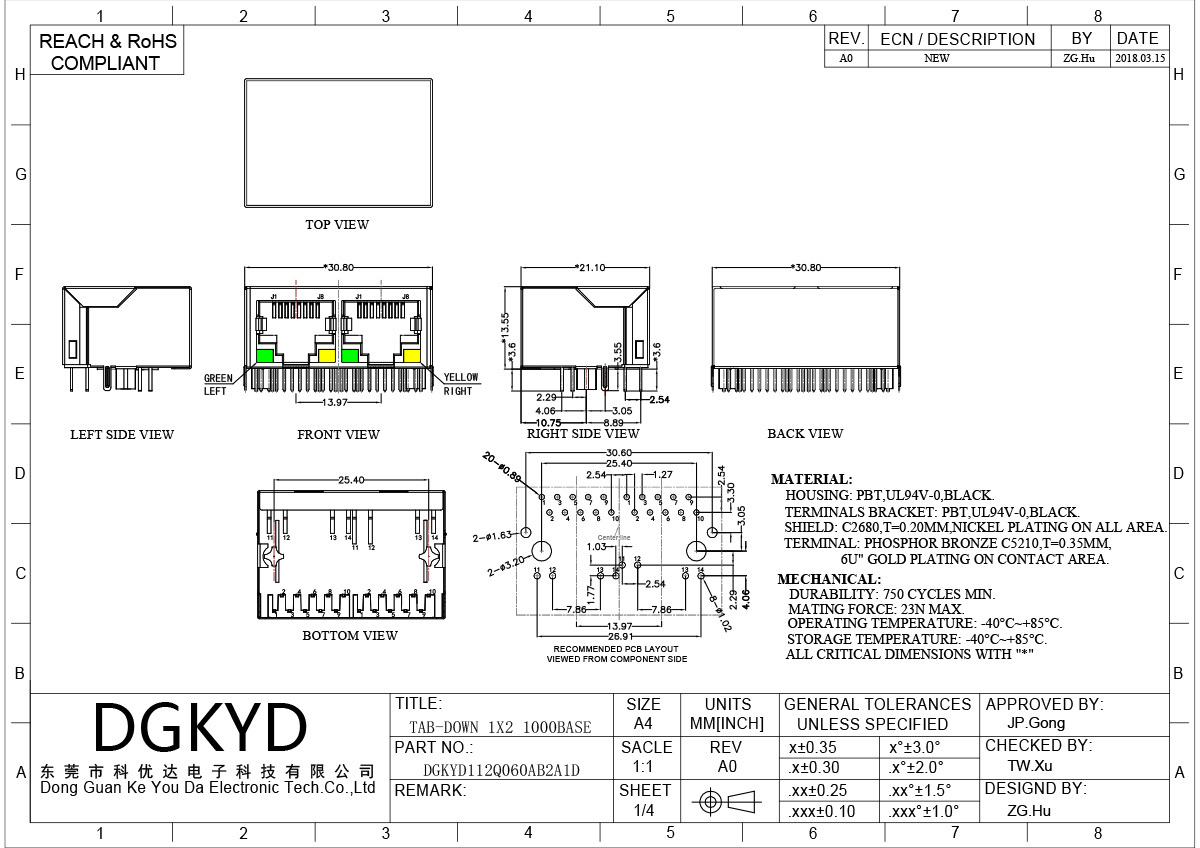

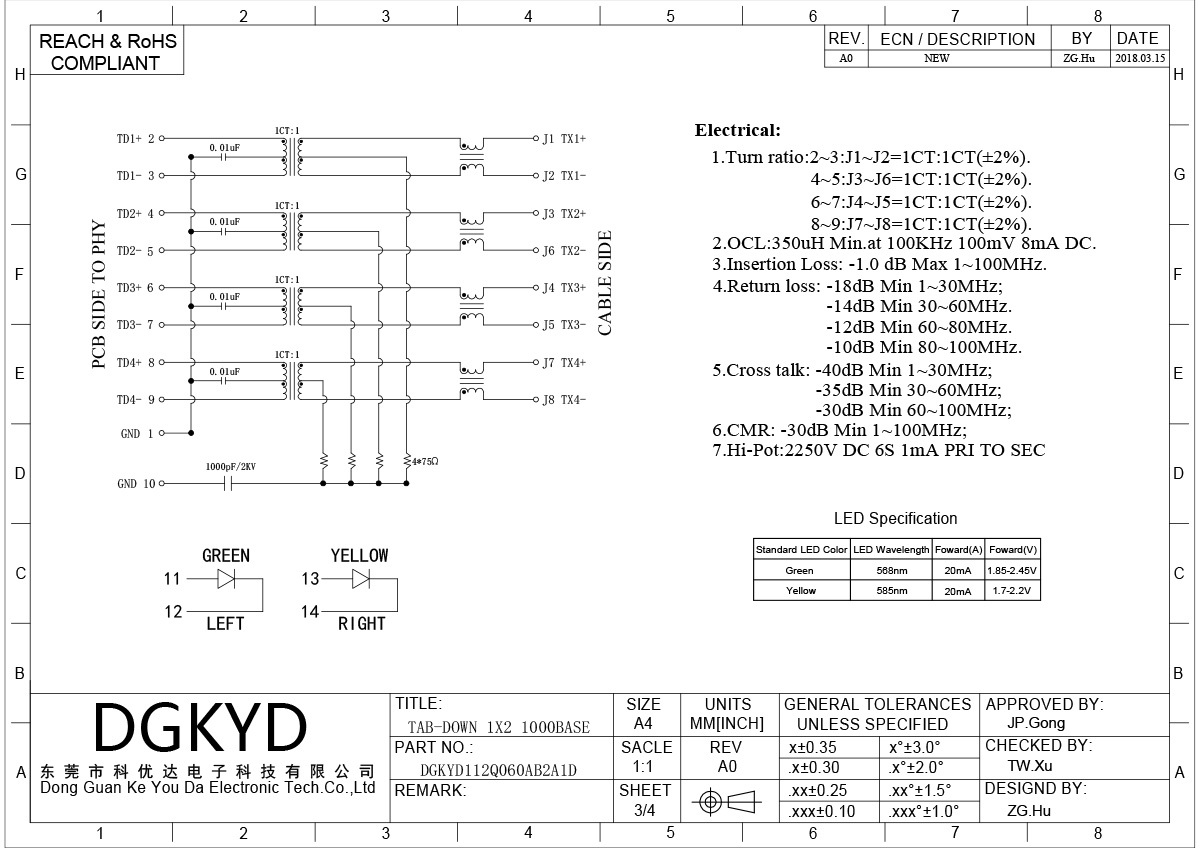

Technical Diagram
RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet
Internal View
RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet
Front View
RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet
Angled View
RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet
Mounting View
RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet
PCB Interface
RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet
LED Indicator
RJ45 Connector Modular Jack with 6u Gold Plating Filter and TAB-Down Port for Gigabit Ethernet
Final Assembly
Technical Specifications
  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply. Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance.

  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)

Your satisfaction is our primary service objective!

Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer. Welcome to visit our factory.
What about your lead time?
For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Can you provide samples? Are they free?
Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Can I put my own logo on it?
Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
