100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
Specifications
Type :
RJ45 Female Jack
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
No.Port :
1X1
Model Number :
DGKYD311B151AB2A4DN
LED :
Green/Yellow
Price :
Please contact us to get the latest price.
Gold plating on contact pins :
6U
Supply Ability :
100K pcs/day
Shield RJ45 :
Yes
Operating temperature :
-40°C~+85°C
MOQ :
1 piece
Delivery Time :
10 days
Number of Positions/Contacts :
8p8c (RJ45, Ethernet)
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Housing :
PBT Black (UL94V-0)
Brand Name :
DGKYD
Storage Storage temperature :
- 40 ℃ ~ 85 ℃
Packaging Details :
Tray in Carton
Product Name :
RJ45 with Transformer
Place of Origin :
DongGuan of China
Description
RJ45 Ethernet Connector 100Mbps Integrated Transformer Industrial Network Interface DGKYD311B151AB2A4DN
Product Overview

RJ45 Ethernet connector with 100Mbps integrated transformer designed for industrial network interfaces. Part number: DGKYD311B151AB2A4DN

Product Specifications
Part Number DGKYD311B151AB2A4DN
Brand DGKYD/OEM/ODM
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Modular Jack
Latch Style Standard
Latch TAB-UP
Filter With Filter
LED Option With LED
LED Color Green/Yellow
Panel Stops With Panel Stops
Shielded With metal shield
Applies To Printed Circuit Board
Port Configuration 1X1 Ports
Number of Positions 8
Jack Configuration 1X1
Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PBT Polyester
Housing Color Black
Housing Material Temperature Standard
UL Flammability Rating UL 94V-0

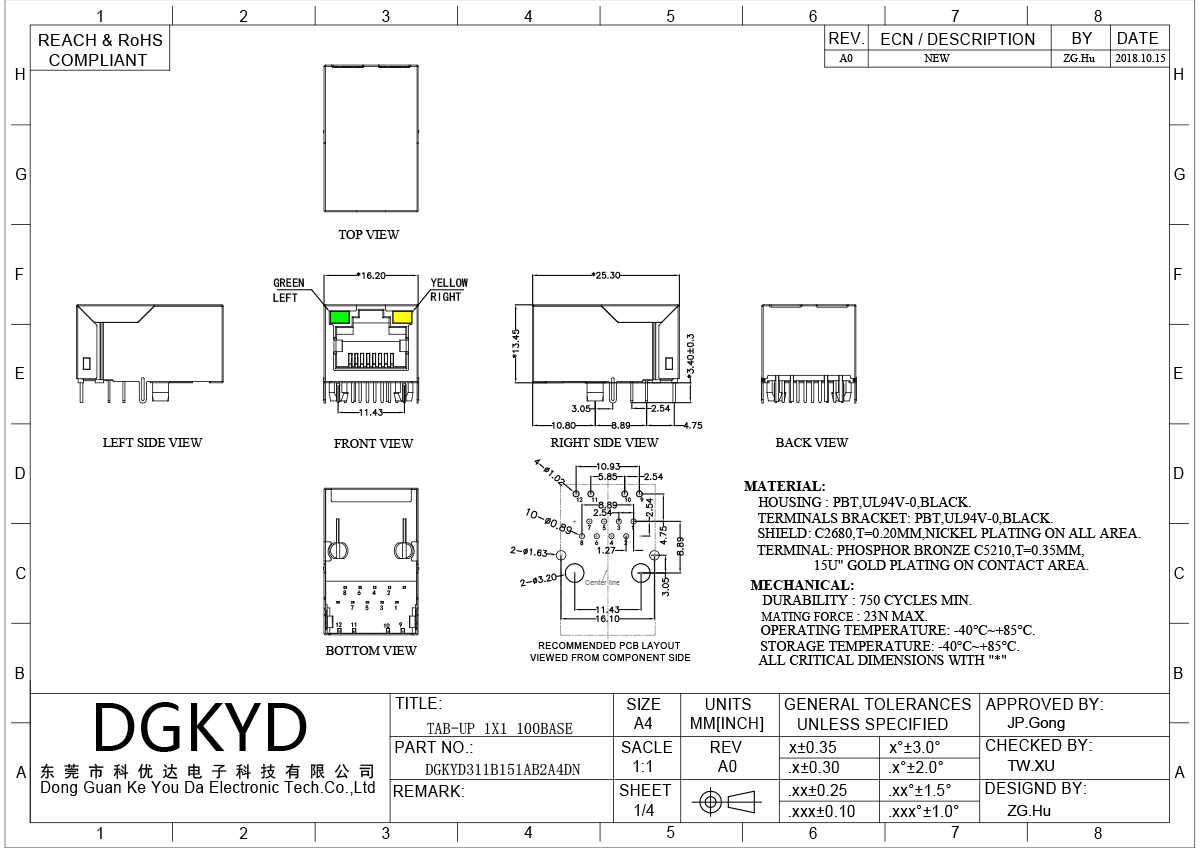

Product Images
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface
100Mbps RJ45 Connector with Integrated Transformer for Industrial Network Interface

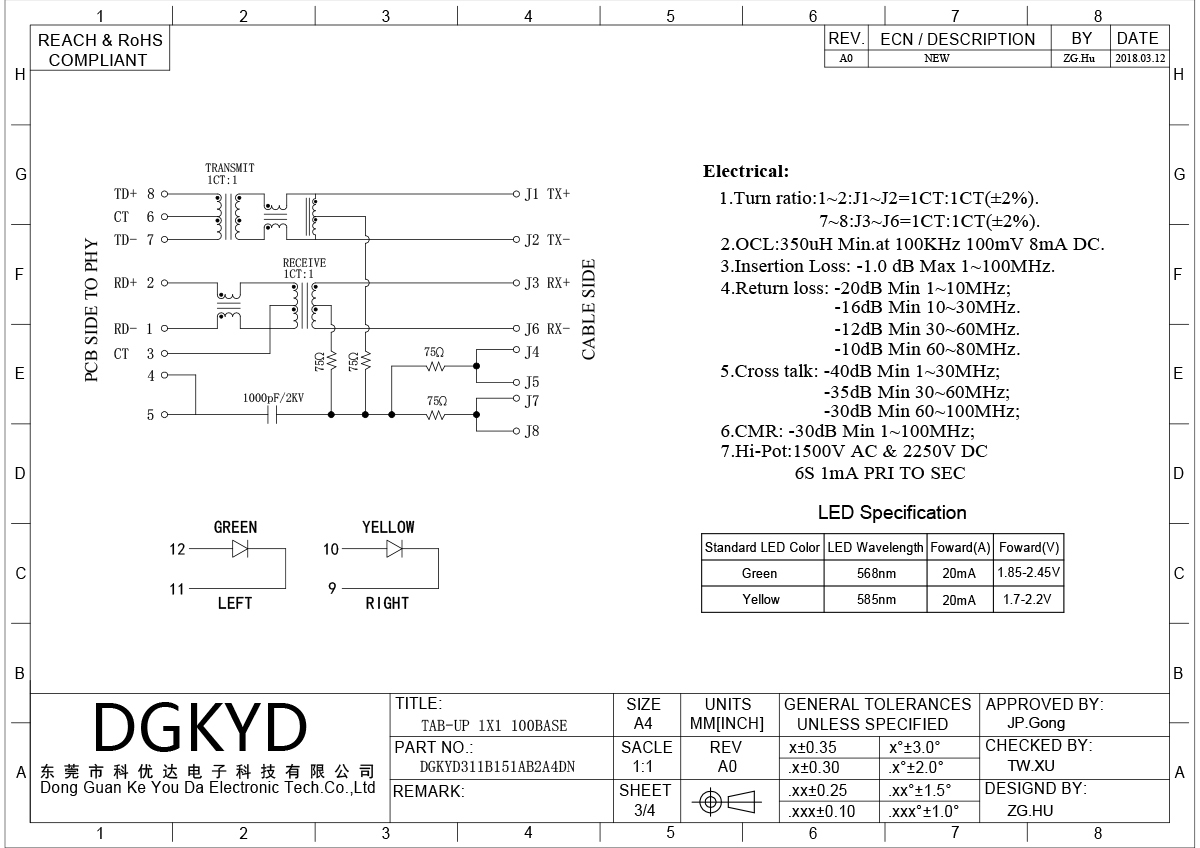

LED Specifications
Emitting Color Dominant Wavelength (nm) Forward Voltage (V) Forward Current (A) Type
Green 570-575 1.8-2.4 20mA Squareness
Yellow 585-590 1.8-2.4 20mA Squareness
Product Features
  • Interface type: crystal head application for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working frequency: high frequency with filtering and anti-interference characteristics
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering compatible with wave soldering height up to 265℃
Manufacturer Advantages
  • Complete RJ45 integrated circuit accessories series with direct manufacturer supply
  • Business mode: Manufacturer
  • Reliable delivery time: approximately two weeks
  • Extensive customization options available:
    • LED indicator lights (green, yellow, red, orange, blue, bi-color LED)
    • Shield with or without EMI fingers
    • Custom coil ratio of magnetic core
    • Diverse magnetics circuit options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing materials (PBT, PA46, PA9T, LCP)
  • Products meet industry standards for electrical properties, appearance, mechanical performance, and environmental protection
Manufacturing Facilities
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer. Welcome to visit our factory.
What about your lead time?
For products in stock, goods will be delivered within 5-7 working days after payment. For customized products and out-of-stock items, delivery time will be confirmed based on your order quantity.
Can you provide samples? Are they free?
Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Can I put my own logo on it?
Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
