Specifications
Brand Name :
DGKYD
Model Number :
DGKYD59212388HWA1DY1A062
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
Negotiation
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
750Tray in Carton
Product type :
RJ45
Encapsulation method :
multi port In-line Package
PCB Mount Style :
DIP
Shape :
rectangle
Shield :
brass
Number of pins :
8
Number of cores :
8
Dimension (mm) :
45.21 * 28.35* 25.3
Gold plating on contact pins :
G/Fu
Operating temperature :
- 40 ℃ ~ 85 ℃
Storage temperature :
- 40 ℃ ~ 85 ℃
Description

DGKYD59212388HWA1DY1A062 RJ45 multi port shielded connector without light 8P8C Ethernet socket without isolation spring

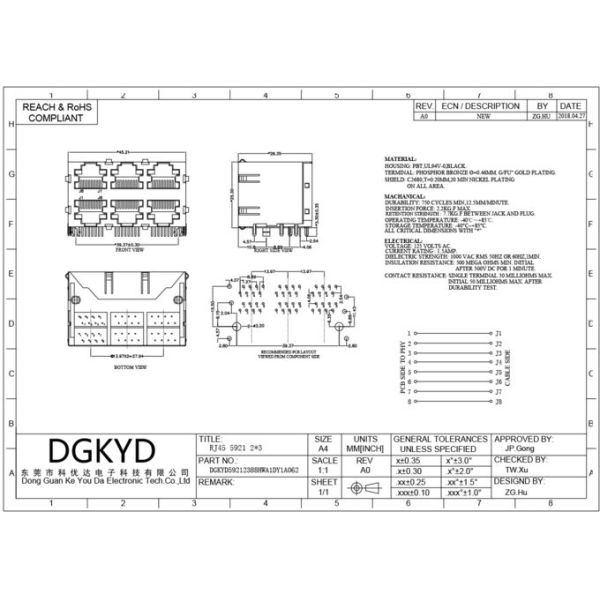

Product Specification Document

DGKYD59212388HWA1DY1A062.pdf

Parameters

Part Number DGKYD59212388HWA1DY1A062 Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP/DOWN
Filter Without Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed Suitable for welding type Reflowsolding(Alternative).
Port Configuration  2X3 Ports Number of Positions  8
Jack Configuration 2X3 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0


DGKYD59212388HWA1DY1A062 RJ45 multi port shielded connector without light 8P8C Ethernet socket without isolation spring

Our Strengths
  • Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
  1. Business mode: Manufacturer
  2. Delivery time: on time delivery, around two weeks.
  3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED) Shield with EMI fingers or not coil ratio of magnetic core magnetics circuit diversification optional contact gold plating (FU, 3U, 6U, 15u, 30U, 50U) plastic housing material (PBT,PA46,PA9T, LCP)
  4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
FAQ
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
