DIP Single Port Shielded Band Light Sink 3.0 Low Profile RJ45 SMT DGKYDCB301188AB1W6DB1075
DIP Single Port Shielded Band Light Sink 3.0 Low Profile RJ45 SMT DGKYDCB301188AB1W6DB1075
DIP Single Port Shielded Band Light Sink 3.0 Low Profile RJ45 SMT DGKYDCB301188AB1W6DB1075
DIP Single Port Shielded Band Light Sink 3.0 Low Profile RJ45 SMT DGKYDCB301188AB1W6DB1075
DIP Single Port Shielded Band Light Sink 3.0 Low Profile RJ45 SMT DGKYDCB301188AB1W6DB1075
DIP Single Port Shielded Band Light Sink 3.0 Low Profile RJ45 SMT DGKYDCB301188AB1W6DB1075
DIP Single Port Shielded Band Light Sink 3.0 Low Profile RJ45 SMT DGKYDCB301188AB1W6DB1075
DIP Single Port Shielded Band Light Sink 3.0 Low Profile RJ45 SMT DGKYDCB301188AB1W6DB1075
Specifications
Brand Name :
DGKYD
Model Number :
DGKYDCB301188AB1W6DB1075
Certification :
RoHS/CE/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
60000pcs per day
Delivery Time :
7-14days
Packaging Details :
Tray in Carton
Product Name :
Low Profile RJ45
Connector type :
Jack
Application :
PC,router,usb hub network rj45 etc.
Gender :
Female
Transformer :
RJ45 Without Transformer
Height Profile :
Extra Low profile
Description

RJ45 connector sink 3.0 DIP single port filter with shielded band light


Application


HUB, SWITCH, ROUTER, BRIDGE,WORK


Paramters


ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP NONE
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION L-Yellow / R-Green
LATCH ORIENTATION LATCH DOWN
HOUSING MATERIAL LCP UL94V-0
CONTACT MATING AREA PLATING GOLD FLASH PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK

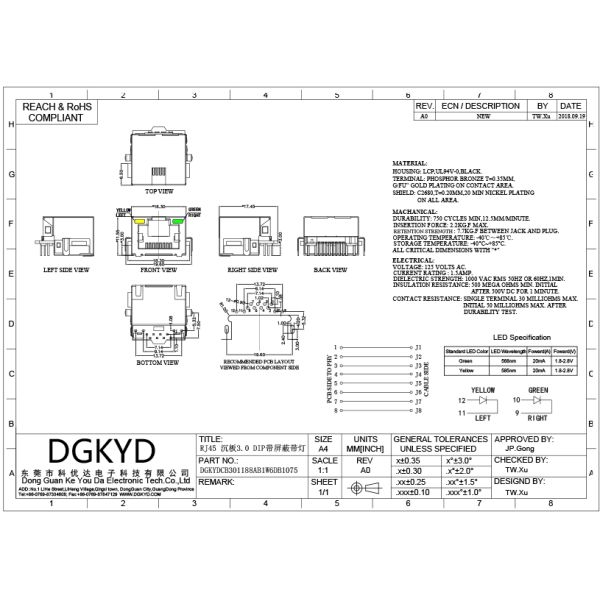

Drawing

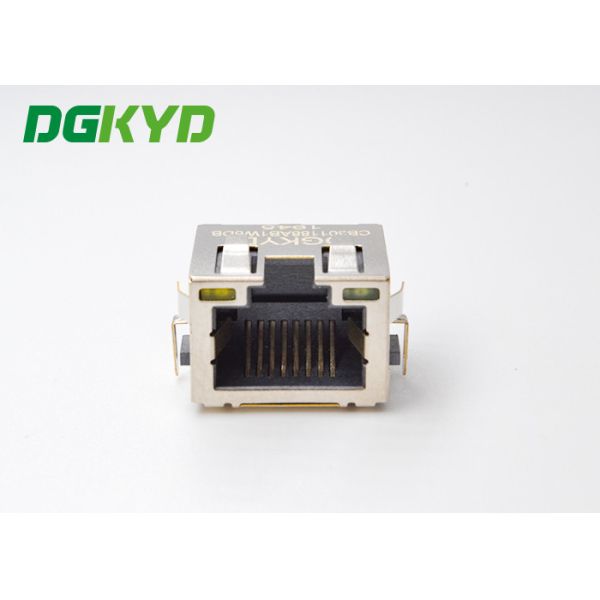

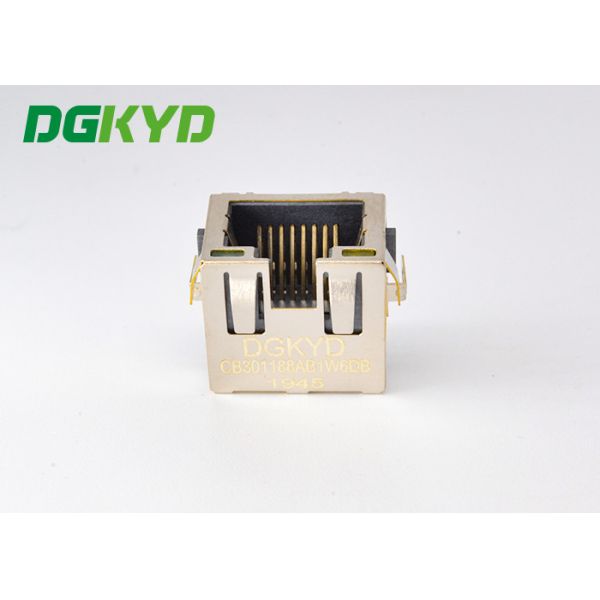

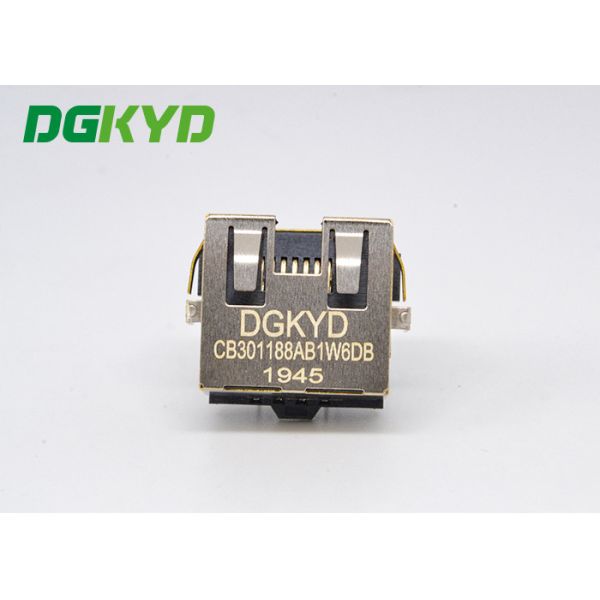

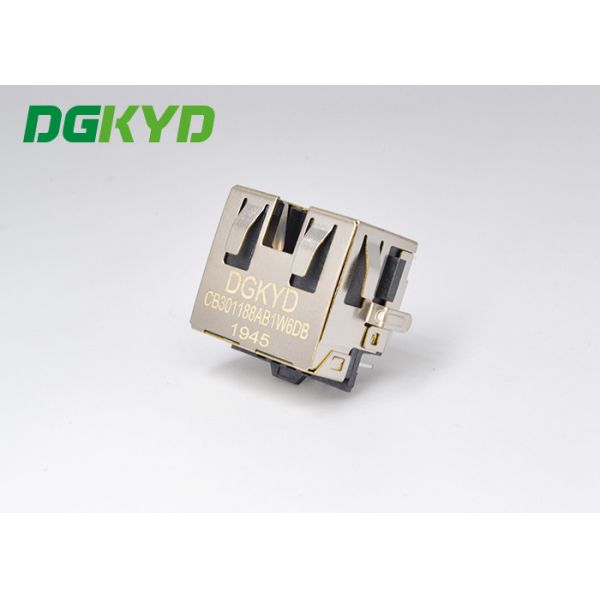

Pictures
