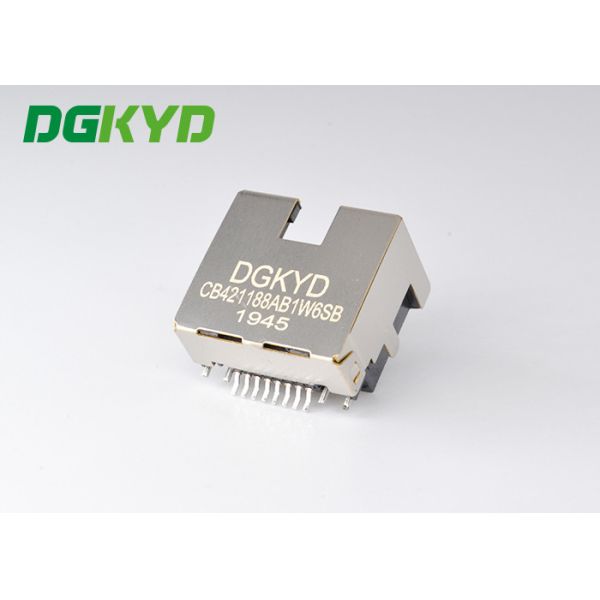

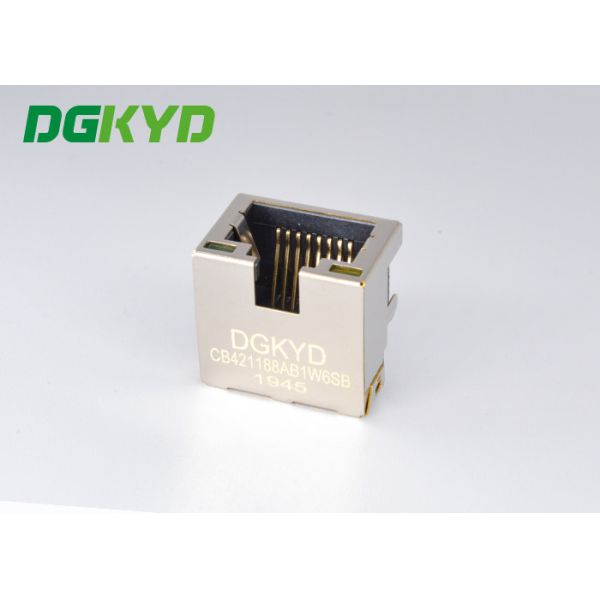

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB
Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB
Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB
Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB
Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB
Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB
Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB
Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB
Specifications
Brand Name :
DGKYD
Model Number :
DGKYDCB421188AB1W6SB
Certification :
RoHS/CE/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
60000pcs per day
Delivery Time :
7-14days
Packaging Details :
Tray in Carton
Product Name :
RJ45 Connector Jack With Shield
Connector type :
Jack
Application :
PC,router,usb hub network rj45 etc.
Gender :
Female
Transformer :
RJ45 Without Transformer
Height Profile :
Extra Low profile
Description

RJ45 connector single countersunk 4.2 SMT With shield With LED 8p8c​


Paramters


ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP NONE
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE SMT
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION L-Yellow / R-Green
LATCH ORIENTATION LATCH DOWN
HOUSING MATERIAL LCP UL94V-0
CONTACT MATING AREA PLATING GOLD FLASH PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK


Drawing



Pictures



Our Service


World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
