KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-1812QYGZNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Port Orientation :
Top Entry
Component Type :
PCB Jack
Performance Category :
5E/6
Insetion Type :
180 degree/ Vtertical
Latch :
Up
Housing Material :
PBT Polyester
Plating :
6u glod plating
Pin :
10pins
LED Color :
Yellow & Green
Number of pins :
8
Operating temperature :
- 40 ℃ ~ 85 ℃
Storage temperature :
- 40 ℃ ~ 85 ℃
Description
KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
Part Number: KRJ-1812QYGZNL

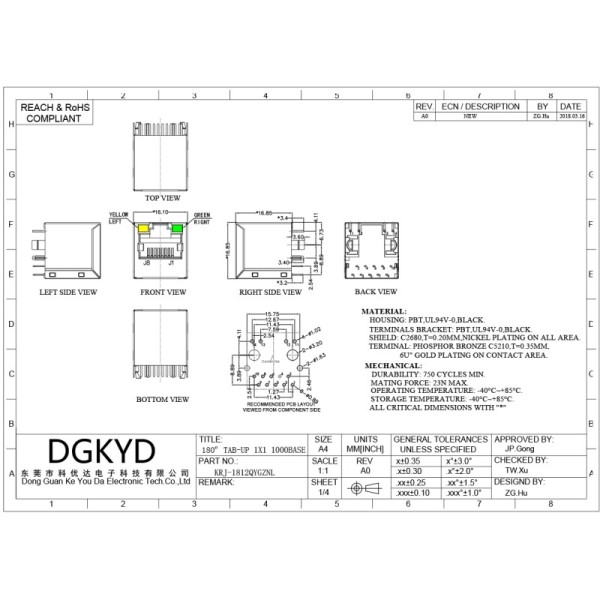

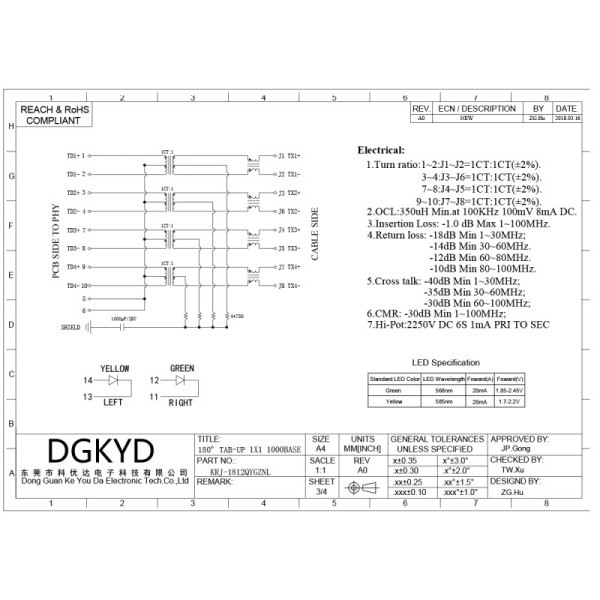

Product Documentation
KRJ-1812QYGZNL.pdf
Technical Parameters
Part Number KRJ-1812QYGZNL Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Yellow/Green Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration Single Port Number of Positions 10
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0

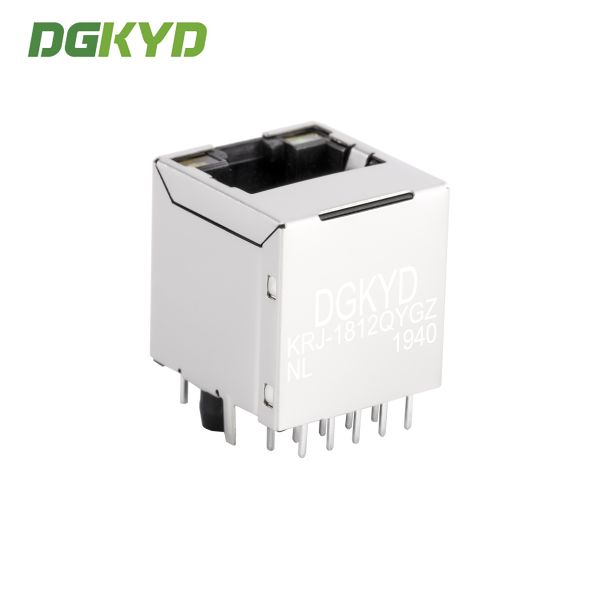

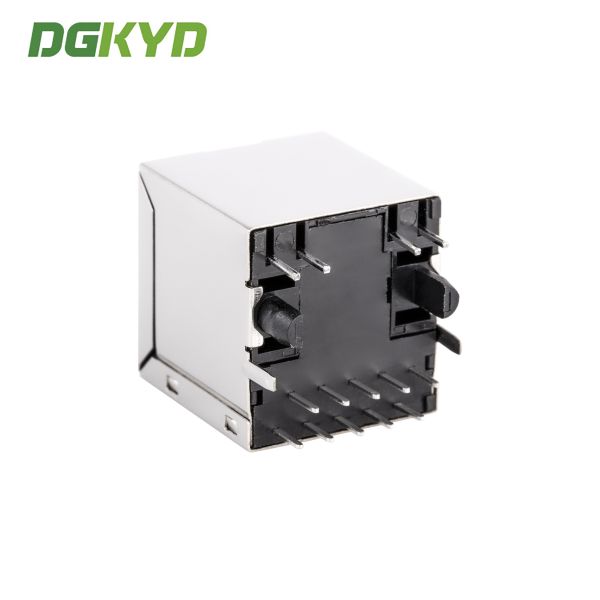

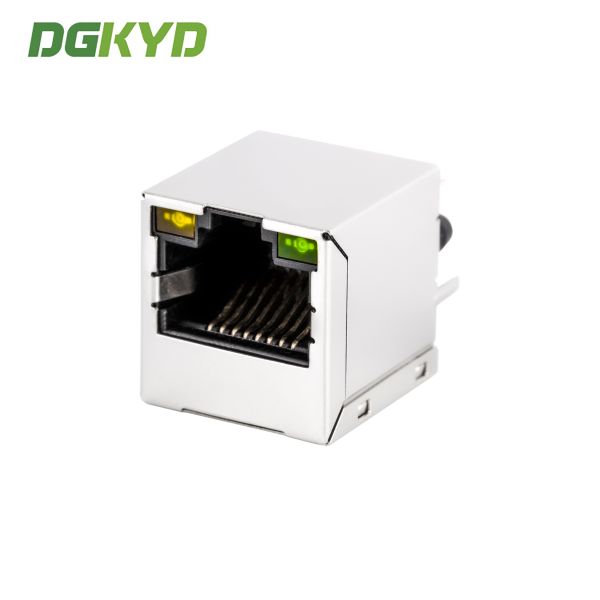

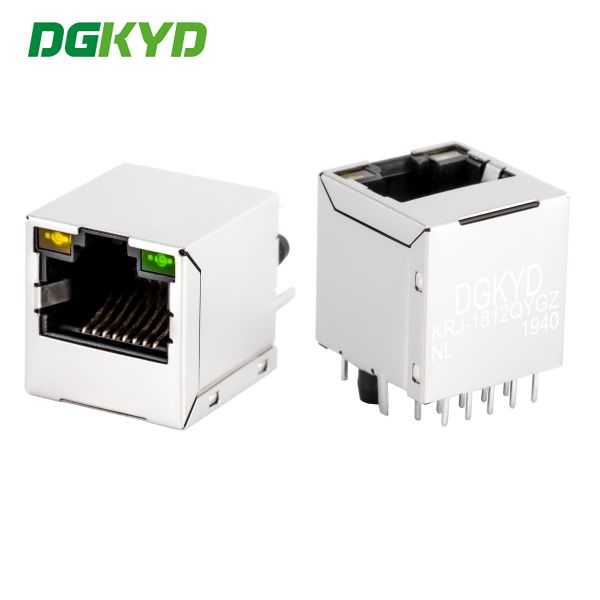

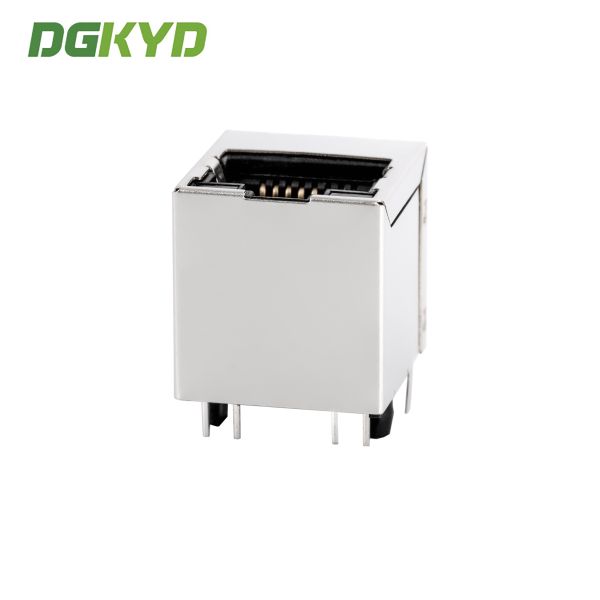

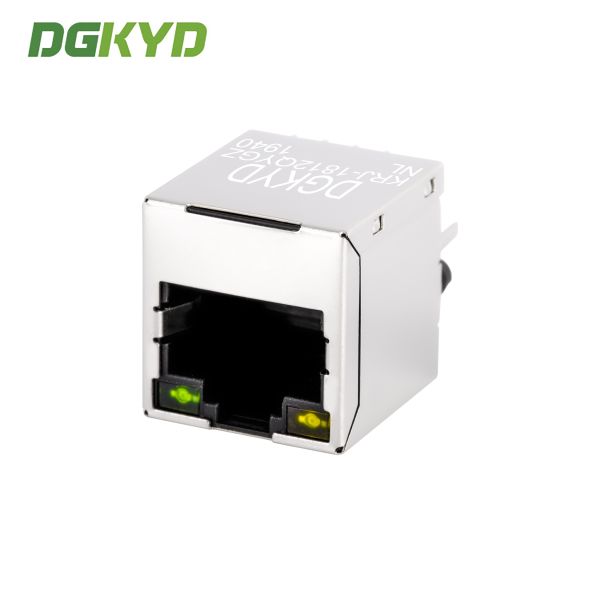

Product Images

KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector

KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector


KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector KRJ-1812QYGZNL Gigabit Magnetic modular Rj45 Lan Jack , 1000Mb Metal rj45 shielded connector
Technical Specifications
  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities
RJ45 full series of integrated circuit accessories, manufacturer direct supply
  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)
Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
