Specifications
Brand Name :
DGKYD
Model Number :
KRJ-415GYZHNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Metal Shielded :
TIN PLATED PHOSPHOR BROZNE
LED Color :
Green & Yellow
Number of Contacts :
8 pins
PCB Mount Angle :
SIDE ENTRY
Mount Stlye :
Through hole
Transformer Option :
With magnetic Transformer
RJ45 Connector OCL :
350uH min
Tab Direction :
TAB-DOWN
Gold plating on contact pins :
6U
Operating temperature :
-40°C~+85°C
Storage temperature :
-40°C~+85°C
Description
KRJ-415GYZHNL quad cell RJ45 connector 100Mbps integrated filter industrial network port socket
KRJ-415GYZHNL quad cell RJ45 connector 100Mbps integrated filter industrial network port socket

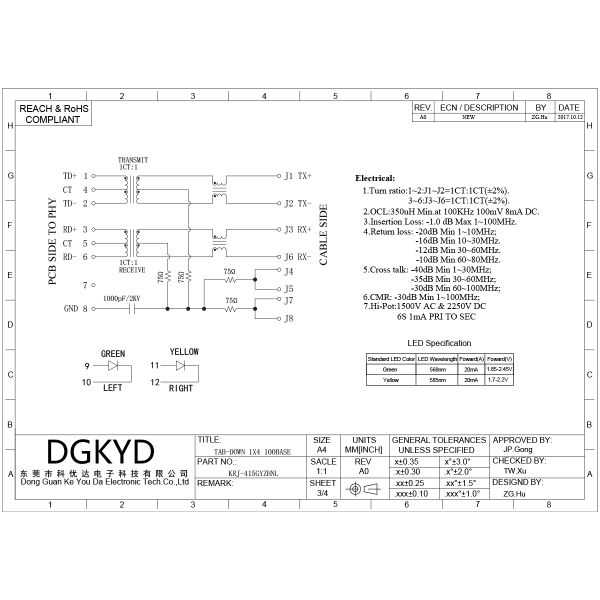

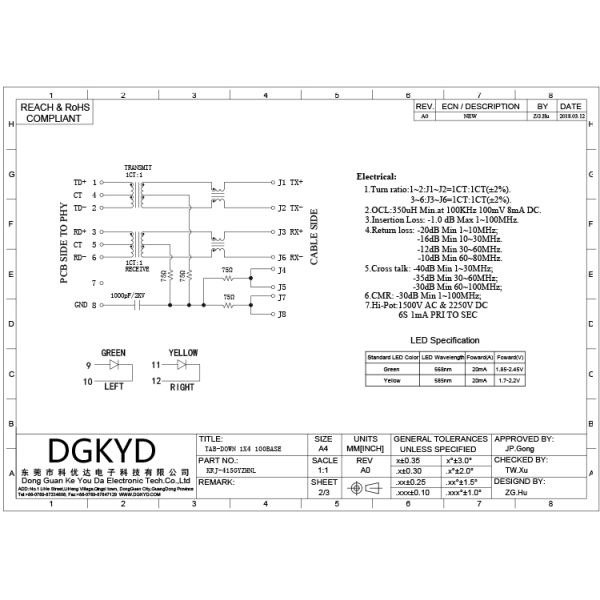

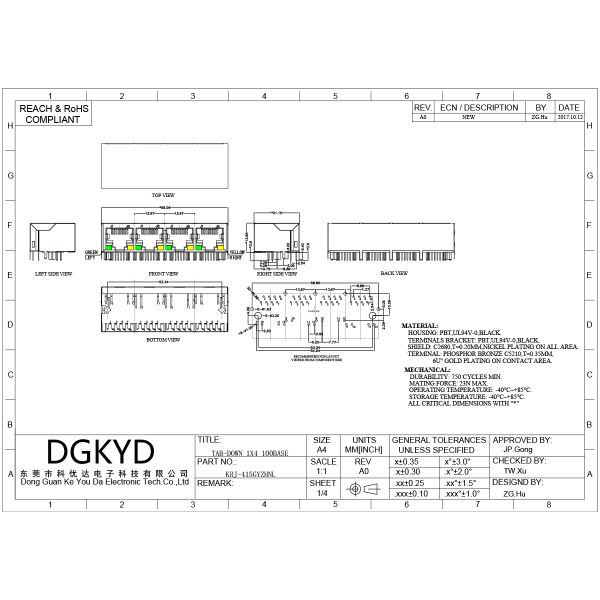

KRJ-415GYZHNL.pdf
Technical Specifications
Part Number KRJ-415GYZHNL
Brand DGKYD/OEM/ODM
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Modular Jack
Latch Style Standard
Latch TAB-DOWN
Filter With Filter
LED Option With LED
LED Color Green/Yellow
Panel Stops With Panel Stops
Shielded With metal shield
Applies To Printed Circuit Board
Port Configuration 1X4 Ports
Number of Positions 8
Jack Configuration 1X4
Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PBT Polyester
Housing Color Black
Housing Material Temperature Standard
UL Flammability Rating UL 94V-0
Product Images
KRJ-415GYZHNL quad cell RJ45 connector 100Mbps integrated filter industrial network port socketKRJ-415GYZHNL quad cell RJ45 connector 100Mbps integrated filter industrial network port socket
Manufacturer Information
Company Profile
Factory Show
Factory Show
Factory Show
DGKYD Product
DGKYD Product
Product Features
  • Interface type: crystal head application: 10/100/1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃

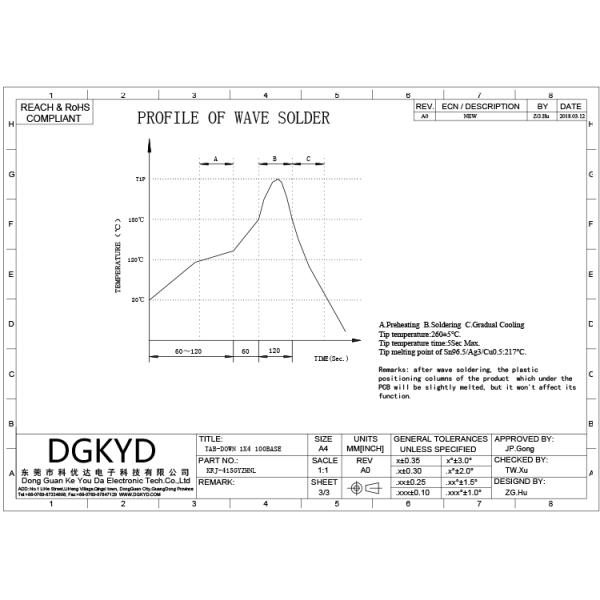

  • Lead free soldering: wave soldering height up to 265℃
  • RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or not
  • Coil ratio of magnetic core
  • Magnetics circuit diversification optional
  • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Frequently Asked Questions
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
