2 Ports 74942302 Surface Mount Transformer For Electric Vehicles
2 Ports 74942302 Surface Mount Transformer For Electric Vehicles
2 Ports 74942302 Surface Mount Transformer For Electric Vehicles
2 Ports 74942302 Surface Mount Transformer For Electric Vehicles
Specifications
Model Number :
74942302
Brand Name :
LINK-PP
Certification :
RoHS & REACH Compliant
Place of Origin :
China
MOQ :
10pcs
Price :
$0.7-$1.5
Payment Terms :
L/C, D/A, D/P, Western Union
Supply Ability :
6000000/Month
Delivery Time :
2 weeks
Packaging Details :
Tape and Reel
Ports :
2 Ports
Part Number :
74942302
Isolation Voltage :
4300VDC (1min, primary to secondary)
Operating Voltage :
Up to 1000VDC
Turns Ratio :
1:1
Operating Temperature :
-40°C ~ 125°C
Description

Category Specification
Part Number 74942302
Series WE-BMS
Transformer Type SMT Transformer for Battery Management Systems
Mounting Type Surface Mount (SMT)
Operating Temperature -40°C to +125°C
Storage Conditions < 40°C; < 75% RH (in original packaging)
Moisture Sensitivity MSL 1
Inductance (L) 150 µH (min) to 450 µH (max) @ 100 kHz, 100 mV
Leakage Inductance 0.5 µH (max) @ 100 kHz, 100 mV
Insertion Loss (IL) -0.25 dB (max) @ 4 MHz
Return Loss (RL) -20 dB (min) @ 4 MHz, 100 Ω
CMRR (1–10 MHz) -35 dB (min)
CMRR (10–1000 MHz) -20 dB (min)
Working Voltage 1000 V DC
Isolation Voltage 4300 V DC (1 min), 3100 V AC (1 min)
Clearance Distance 10 mm (min)
Creepage Distance 10 mm (min)
DC Resistance (Transformer Side) 450 mΩ (max)
DC Resistance (CMC Side) 850 mΩ (max)

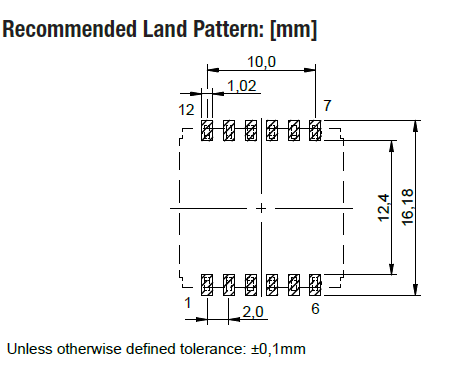

Dimensions (L × W × H) 15.10 mm × 15.40 mm × 3.45 mm (±0.25 mm)
Base Material DAP WH-9100, UL 94V-0, CTI 0
Cover Material LCP E4008, UL 94V-0, CTI 3
Wire Material FIW-6
Certifications RoHS Compliant (2011/65/EU & 2015/863), REACH Compliant ((EC) 1907/2006), AEC-Q200 Grade 1
Applications Battery Management Systems (BMS), Energy Storage Systems, Uninterruptible Power Supplies (UPS), E-bikes, E-scooters, Industrial Interface Isolation
Packaging Tape & Reel

Don't hesitate to get in touch with us for more detailed information.
