L13H003-0 1000 Base - T Dual Ports LAN Filter Transformer 12 PIN DIP
L13H003-0 1000 Base - T Dual Ports LAN Filter Transformer 12 PIN DIP
L13H003-0 1000 Base - T Dual Ports LAN Filter Transformer 12 PIN DIP
L13H003-0 1000 Base - T Dual Ports LAN Filter Transformer 12 PIN DIP
Specifications
Brand Name :
LINK-PP
Model Number :
LPxxxxxx
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Original :
L13H003-0
Equivalent :
LPxxxxxx
Speed :
1000 Base-T
Transformer Type :
Isolation and Data Interface
Operating Temperature :
0~+70℃
File :
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Description
L13H003-0 1000 Base –T Dual Ports LAN Filter Transformer 12 PIN DIP

Item Part Number L13H003-0
LINK-PP Part Number LPxxxxxx
Manufacturer LINK-PP
Speed 1000 BASE-T
Number of Ports Dual Ports
PIN number 36 PIN
Cores per Port 12
POE Non PoE
Type DIP
Size 14 x 7.6 x 7
Pin Pitch 2.00
Circuits T+2C
Operating Temperature 0~+70℃
CMC Cable

You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.06-$3.2 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

L13H003-0 1000 Base - T Dual Ports LAN Filter Transformer 12 PIN DIP

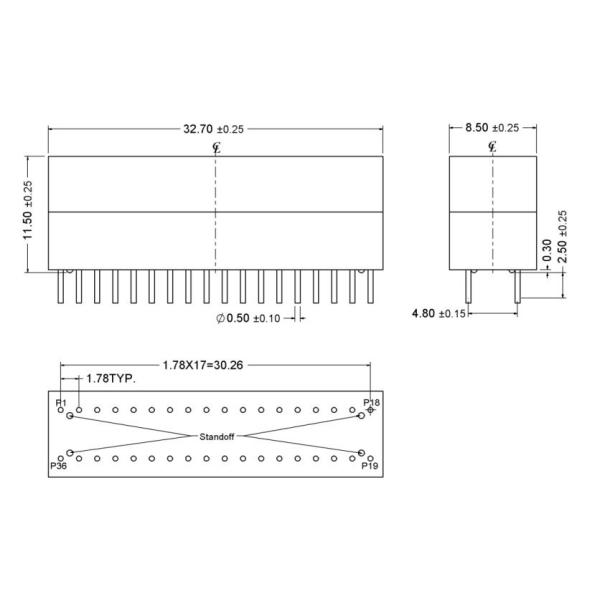

L13H003-0 1000 Base –T Dual Ports LAN Filter Transformer Product Dimension:

L13H003-0 1000 Base - T Dual Ports LAN Filter Transformer 12 PIN DIP

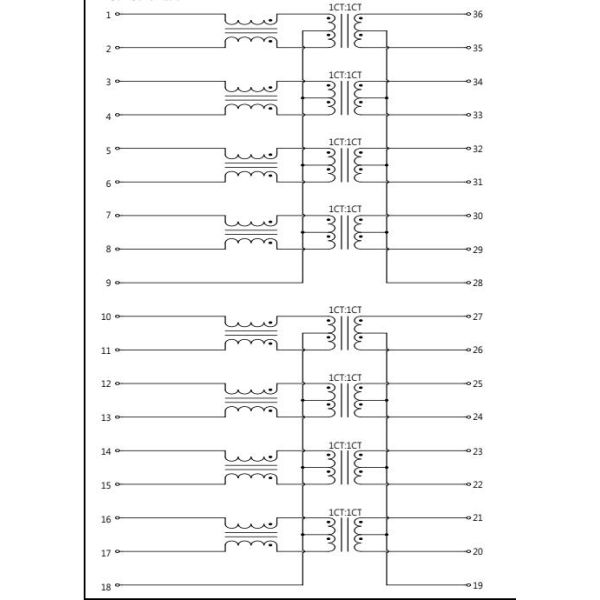

L13H003-0 ELECTRICAL CHARACTERISTICS Schematic:

L13H003-0 1000 Base - T Dual Ports LAN Filter Transformer 12 PIN DIP

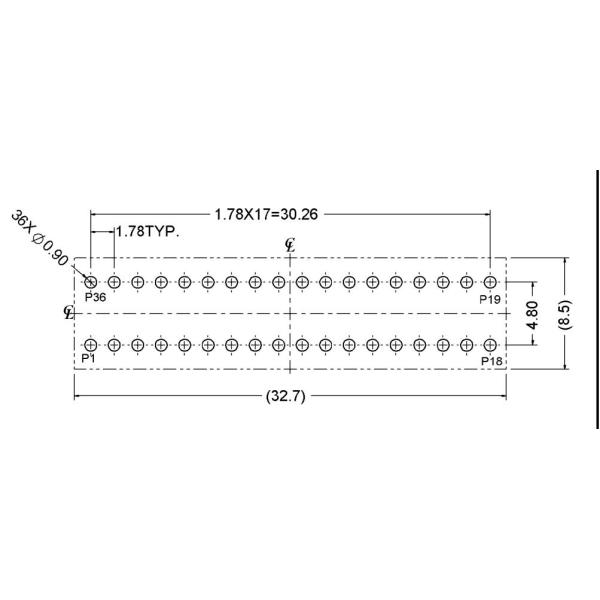

L13H003-0 Dual Ports LAN Filter Transformer Recommened PCB Layout (Unit mm)
L13H003-0 1000 Base - T Dual Ports LAN Filter Transformer 12 PIN DIP

L13H003-0​ SPECIFICATION:

Designed for Ethernet 1000 Base-T,full Dual ports applications.

Supports 8 pairs of category 5 UTP cable.

Cable interface for isolation and low common mode emissions.

Design to meet EEE 802.3ab standard for 1000 Base-T.

Compliant with RoHS&Halogen Free requirements.

Operating and Storage Temperature
Operating Temperature: 0°C to +70°C
Storage Temperature :
-25°C to +105°C

Packing Information
15 pcs finished goods per Tube
144 Tubes(2 160 pcs finished goods) per master carton.

L13H003-0​ Similar Part Number :

L1CN001-0 L3AH002-0 L3BH002-0
L12N003-0 L12T001-2 L12T002-0
L13H003-0 L14H001-3 L14H002-4
L14H003-3 L14H005-0 L14T002-0
L14T002-3 L18T010-3 L19H007-4
