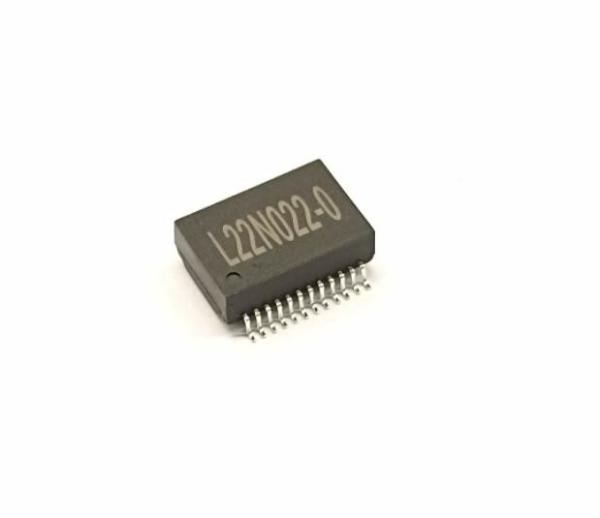

L22N022-0 Single Port Magnetic Transformer 5G/2.5G Base - T LAN Filter UDE
L22N022-0 Single Port Magnetic Transformer 5G/2.5G Base - T LAN Filter UDE
L22N022-0 Single Port Magnetic Transformer 5G/2.5G Base - T LAN Filter UDE
L22N022-0 Single Port Magnetic Transformer 5G/2.5G Base - T LAN Filter UDE
Specifications
Brand Name :
LINK-PP
Model Number :
LPxxxxxx
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Original :
L22N022-0
Equivalent :
LPxxxxxx
Speed :
5G/2.5G Base-T
Transformer Type :
Isolation and Data Interface
Operating T-40~+105℃emperature :
0~+70℃
File :
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Description
L22N022-0 Single Port Magnetic Transformer 5G/2.5G Base –T LAN Filter UDE

Parameter Value
Data Rate 5G/2.5G Base-T
Number of Ports 1
Mounting Type Surface Mount (SMD)
PoE Support Non-PoE
Operating Temperature Range 0°C to +70°C
Storage Temperature Range -25°C to +105°C
Dimensions (L × W × H) 18.1 mm × 16.0 mm × 6.2 mm
Pin Count 24
Pin Pitch 1.27 mm
Circuit Configuration 3C+T
Common Mode Choke (CMC) PHY
Turns Ratio (±5%) 1:1
Inductance (OCL) 160 µH Min @ 100 kHz, 0.1 V, 8 mA DC Bias
Isolation Voltage 1500 V RMS
Compliance IEEE 802.3bz, RoHS, Halogen-Free

UDE L22N022-0 FEATURES​:

Designed for Ethernet 5G/2.5G Base-T, full single-port applications.


Supports 4 pairs of Category 6 or greater cable.


Cable interface for isolation and low common-mode emissions.


Designed to meet the IEEE 802.3bz Standard.


Compliant with RoHS& Halogen Free requirements.


Operating and Storage Temperature
Operating Temperature : 0°C to +70°C
Storage Temperature: -25°C to +1059C

Packaging Information

  • 400 units per reel

  • 3 reels (1,200 units) per inner box

  • 2 inner boxes (2,400 units) per master carton

L22N022-0 Single Port Magnetic Transformer 5G/2.5G Base –T Product Dimension:

L22N022-0 Single Port Magnetic Transformer 5G/2.5G Base - T LAN Filter UDE

L22N022-0 Single Port 5G/2.5G Base–T LAN Filter ELECTRICAL CHARACTERISTICS Schematic:

L22N022-0 Single Port Magnetic Transformer 5G/2.5G Base - T LAN Filter UDE



UDE L22N022-0 Recommended PCB Layout (Unit mm)
L22N022-0 Single Port Magnetic Transformer 5G/2.5G Base - T LAN Filter UDE

UDE L22N022-0 Similar Part Number :

L22N018-0 L22N021-0 L22N022-0
L22T001-4 L22T001-B L22T001-S
L22T002-2 L22T002-3 L22T003-0
L22T003-3 L22T005-0 L22T005-4
L22T006-0 L22T006-3 L22T006-4
