30F-30 Ethernet Magnetics LP82445NL 10 / 100 / 1000 BASE-T PC CARD LAN MAGNETIC
30F-30 Ethernet Magnetics LP82445NL 10 / 100 / 1000 BASE-T PC CARD LAN MAGNETIC
Specifications
Brand Name :
LINK-PP
Model Number :
30F-30
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
part Number :
30F-30
Specification :
LP82445NL
Cross&Datasheet :
LP82445NL
Apllication :
10/100/1000 base-T
Original Munafactuer :
LINK-PP
Project Application :
NETWORK INTERFACE CARD
Description

30F-30 Ethernet Magnetics LP82445NL 10 / 100 / 1000 BASE-T PC CARD LAN MAGNETIC


Competitor Cross Reference

Trader
Part Number

Manufacturer

Part Number

 Manufacturer Description
30F-30 LP82445NL LINK-PP

30F-30 , Lan Magnetics LP82445NL 10 / 100 / 1000 BASE-T PC CARD LAN MAGNETIC

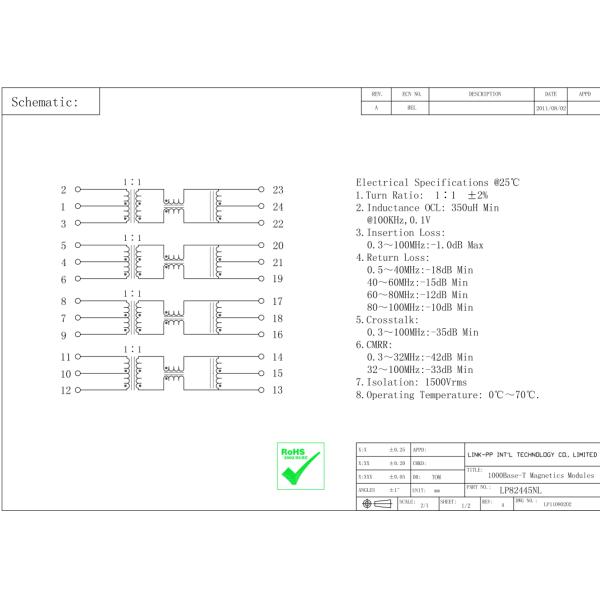

Series Transformer Type Applications Turn Radio
Transformer Isolation and Data Interface 10/100/1000 Base-T 1:1

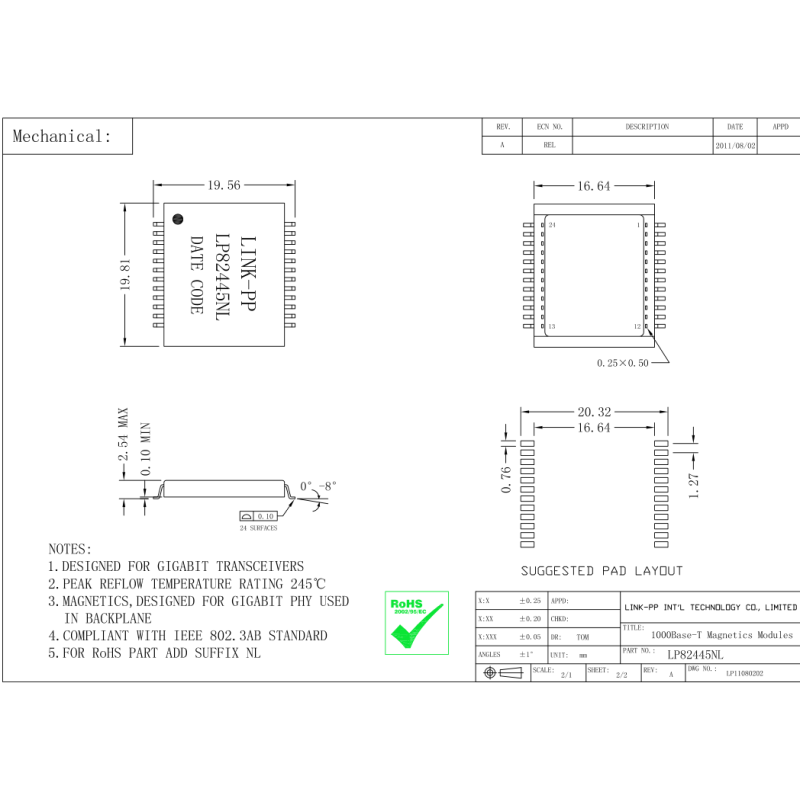

Mounting Type Size / Dimension Height - Seated (Max) Unit Price
Surface Mount 18.68mm x 19.56mm x 2.54mm 2.54mm $0.65-$1.02 For mass Production

Features

  • 30F-30 => LP82445NL【Mass Production Model】
  • RoHS Compliant
  • RoHS peak solder rating 260 ℃/ 3~5 Sec
  • Designed to meet IR requirement
  • Specifications @ 25 ℃
  • Operating temp. :-40 ℃ ~ +85 ℃
  • OCL :350uH Min @100Khz , 100mV 8mA

  • Helps manufacturers reach their goals of cost reduction

Related Part

XPJH-04L-8-R08-4V0-JU XMH-J1B8B1ZDBA XRJH-01D-A-D9B-470 XRJH-24E-8-H62-01
XPJH-04L-5-R10-1S0 XMH-J1B8B1ZTJA XRJH-01D-D-HA1-770 XRJH-24E-8-H62-470
XPJH-04D-1-D34-190 XMH-J1B8B21TJA XRJH-01D-N-H32-570 XMH-T23-0Z9-AM1-013
XPH-TRJ46253AENL XMH-J1B901ZCY XRJH-01D-W22-D1H-470-01 XMH-260040-6400
XPJH-1-21-8A-Q30-Z-PD21 XMH-J1B911ZTQA XRJH-01E-0-D91-071 XMH-59N2X6R-8P8C-Y
XPJH-TRJ17002A109NL XMH-J1B912ZFEA XRJH-01E-1-D22-170 XMH-9760-JJ8G120-776
XPJH-1-21-8A-Q30-4-PD22 XMH-J1B921ZCCA XRJH-01E-1-E41-170 XMH-DS9760-D8V6121-822
XMH-9760-DH3B120-286 XMH-J1B921ZCNA XRJH-01E-4-D3C XMH-EDS-26Z-8-8-A-F2-NN-4-1-PE
XPJH-24A-Z-P01-970 XMH-J1B921ZDJD XRJH-01E-4-D61-170 XMH-EH-26E-4-D41-170
XMH-YL5917222X4PLE XMH-J1B921ZTSA XRJH-01E-4-E11-170 XMH-EH-26E-4-H62-170
XPJH-24D-Z-P21-970-MHF XMH-J1B931ZCMB XRJH-01E-4-H32-170 XMH-EH-26E-W43-D41-170
XMH-9760-DH3D120-286 XMH-J1B931ZTVA XRJH-01E-4-H32-170 XMH-JDB26037020
XPJH-26A-Z-P01-970 XMH-J1BG01ZJP XRJH-01E-5-D12-170 XMH-JFB3021CC


Specification

30F-30 Ethernet Magnetics LP82445NL 10 / 100 / 1000 BASE-T PC CARD LAN MAGNETIC

30F-30 Ethernet Magnetics LP82445NL 10 / 100 / 1000 BASE-T PC CARD LAN MAGNETIC

30F-30 Ethernet Magnetics LP82445NL 10 / 100 / 1000 BASE-T PC CARD LAN MAGNETIC
