Single Port L22H003-L 10G Base-T Gigabit Ethernet SMD LAN Transformer
Single Port L22H003-L 10G Base-T Gigabit Ethernet SMD LAN Transformer
Single Port L22H003-L 10G Base-T Gigabit Ethernet SMD LAN Transformer
Single Port L22H003-L 10G Base-T Gigabit Ethernet SMD LAN Transformer
Single Port L22H003-L 10G Base-T Gigabit Ethernet SMD LAN Transformer
Single Port L22H003-L 10G Base-T Gigabit Ethernet SMD LAN Transformer
Specifications
Brand Name :
LINK-PP
Model Number :
L22H003-L
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Item :
L22H003-L
Interface :
10G Base-T
Alternative :
L22H003-L=>LPxxxNL
Samples :
Available
Files :
PDF/3D/ISG/Stp/Step/Datasheet
Application :
Wireless products/ EPON/ GPON
Description

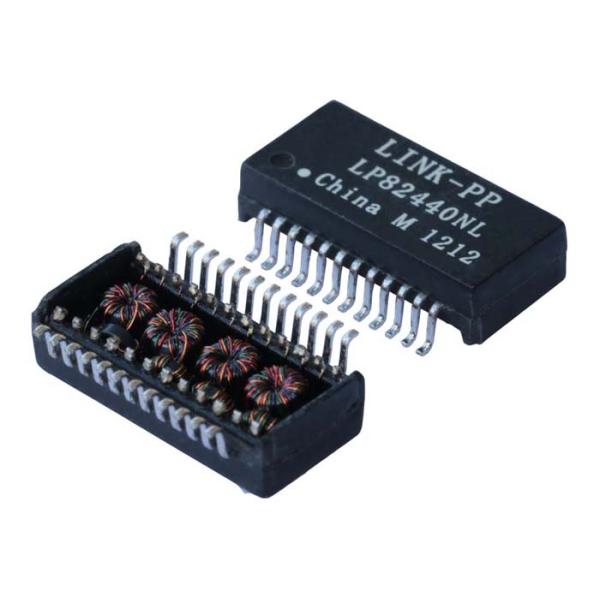

Single Port L22H003-L 10G Base-T Gigabit Ethernet SMD LAN Transformer

SPECIFICATION:
1 Designed for Ethernet 10G Base-T,full Single port applications.

2 Pin to pin compatible by LINK-PP LPXXXNL

3 10G Base –T Magnetics Modules Ethernet application
4 Designed to meet IEEE 802.3.
5 Compliance with RoHS&Halogen Free requirements.

Application:

1 SCSI Terminations

2 PCI Express Products

3 Touch Screen Sensors

4 I/O Modules and Instruments

Single Port L22H003-L 10G Base-T Gigabit Ethernet SMD LAN Transformer

Electrical Specifications @25℃ Type : Balance low pass 100Ω impedance
Insertion loss : 1-50MHz -0.5 dB Max
50-125MHz -1.0 dB Max
125-200MHz -2.0 dB Max
Return loss : 1~40MHz -20 dB Minload 100Ω
40-200MHz -20+15*log(Freq MHz/40MHz) dB Minload 100Ω
Reflected CM to Diff Conversion(REF) 1MHz -30 dB Min
50MHz -30 dB Min
100MHz -27 dB Min
200MHz -24 dB Min
CM to DM Conversion(REF) 1-125MHz -35 dB Min
Reflected Diff to CM Conversion(REF) 1-10MHz -48 dB Min
10-200MHz -48+19*log(Freq MHz/10MHz) dB Min
CM to CM Attenuation (REF) 1-200MHz -25 dB Min
Cross Talk (REF) 1-125 MHz -30 dB Min
125-200 MHz -25 dB Min
Inductance @ 100KHz, 0.1V, 8mA DC BIAS 180uHMin
HiPot Test @ 1500 Vrms
Turns Ratio @ 1:1±5%
Operating and Storage Temperature Operating Temperature : 0°C to +70°C
Storage Temperature : -25°C to +105°C
