T1/E1 Transformer TG26-1505N5LF SMD Dual Channel Isolation Modules
T1/E1 Transformer TG26-1505N5LF SMD Dual Channel Isolation Modules
Specifications
Brand Name :
LINK-PP
Model Number :
TG26-1505N5LF
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.7-$2.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
5KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Part Number :
TG26-1505N5LF
Transformer Type :
T1 E1 Transformer
Turns Ratio :
PRI : SEC=1CT:2CT
Hi-Pot :
1500 Vrms
PRI OCL :
1.5mH
Package Height (max) :
0.25 inch (6.35 mm)
Description

Dual Channel T1/E1 Transformer Key Features:

  • Application: T1/E1 line interface.
  • Compliance: UL/EN60950 and DEMKO Recognized.
  • RoHS Compliant: Yes.
  • Mounting Type: Surface Mount.
  • Physical Dimensions: 12.7 mm x 7.11 mm x 6.35 mm.
  • Electrical Testing: 100% Electrical Testing ensured.
  • High Voltage Protection: 1500Vrms Hi-Pot.
  • Construction: Patented Open Frame Construction.
  • Operating Temperature Range: -40°C to +85°C.

Detailed Specifications:

dual-channel T1/E1 line interface transformer

Part Number

TG26-1505N5LF

Product Type

Isolation Transformers Module

Termination Style

SMD

Number of Channels

Dual
Shielding Shielded

Application

T1/E1 Line interface

Length

12.7 mm

Width

7.11 mm

Height

6.35 mm

Inductance

1.5 mH

Isolation Voltage

1.5 kV

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+85°C

Turns Ratio RX

1CT:2CT

Turns Ratio TX

1CT:2CT

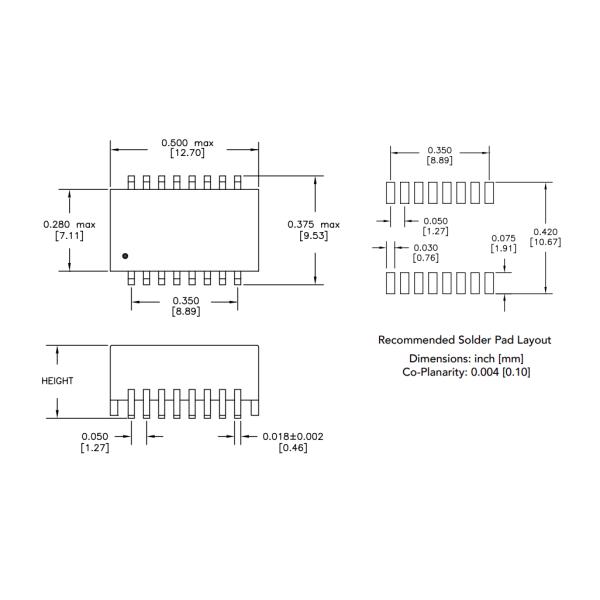

TG26-1505N5LF Datasheet - Mechanical:

T1/E1 Transformer TG26-1505N5LF SMD Dual Channel Isolation Modules

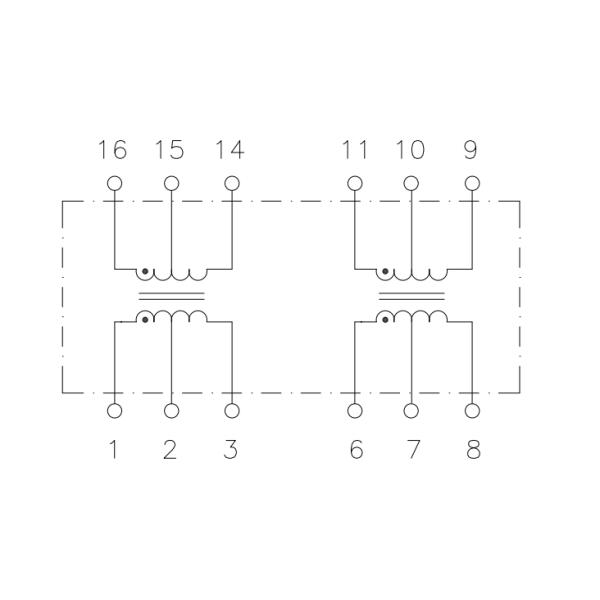

TG26-1505N5LF Datasheet - Circuit:

T1/E1 Transformer TG26-1505N5LF SMD Dual Channel Isolation Modules
